Tandy 2500XL
Chipset
Sockets
FSB speed 10MHz
Form factorOEM / Proprietary
Dimensions290 mm x 216 mm
Max VRAM size512KB
Cache
None/Integrated in the CPU
Max RAM size
4MB
RAM type 30-pin SIMM
PSU connector
I/O ports1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
1x
VGA
Expansion slots3x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes

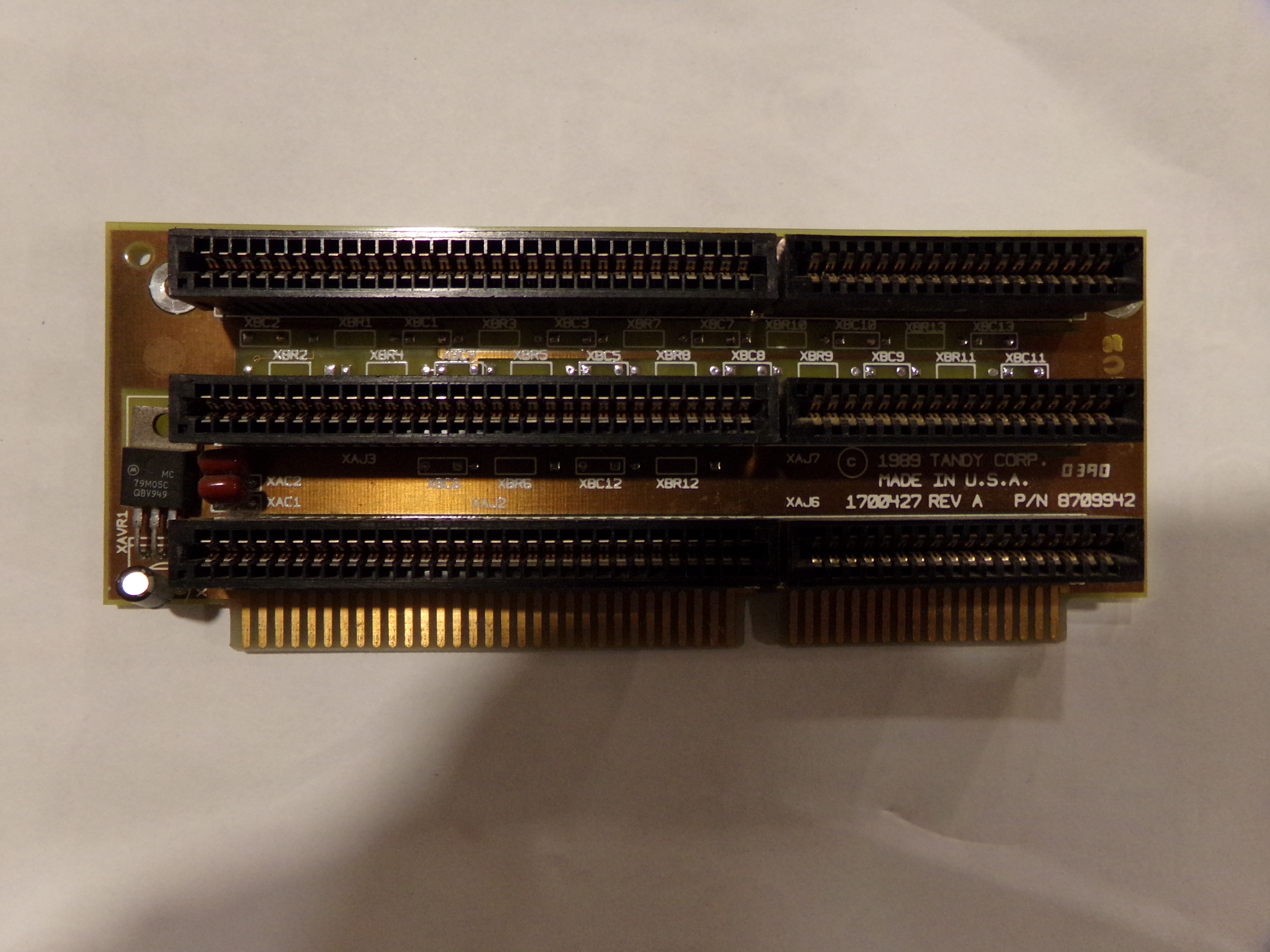

Comes with a 3x 16bit ISA slot riser card
Last updated 2025-06-24T19:43:08Z
Board info score is 8.1/10
Chips
-> Chipset part
-> Floppy ctrl.
-> Miscellaneous
-> Programmable Logic
-> RAMDAC
-> Video
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
13.8KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-07
File
Logs
1 other file available
Title
File
Logs

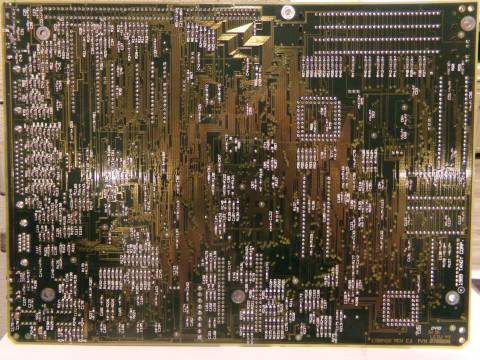

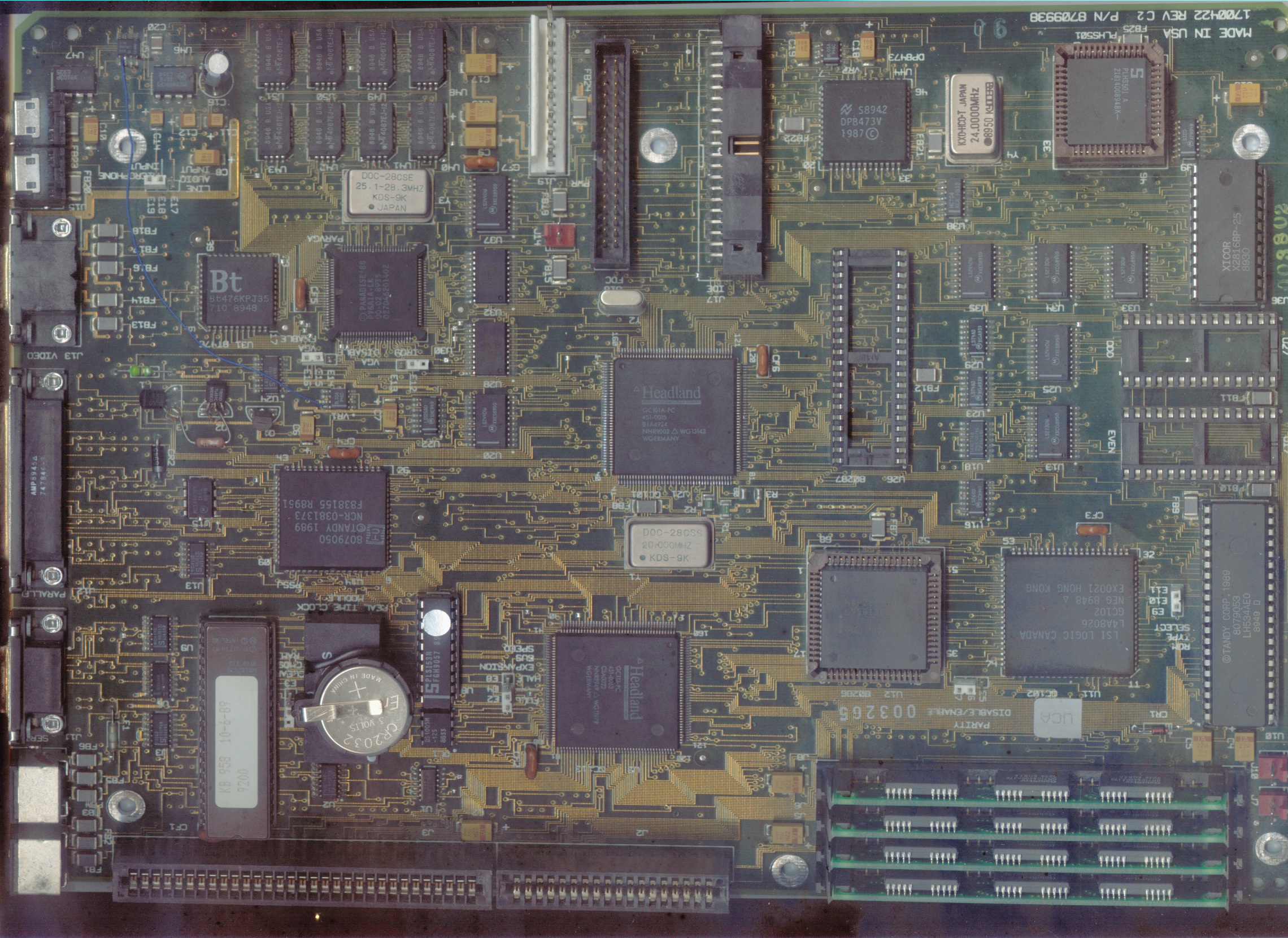

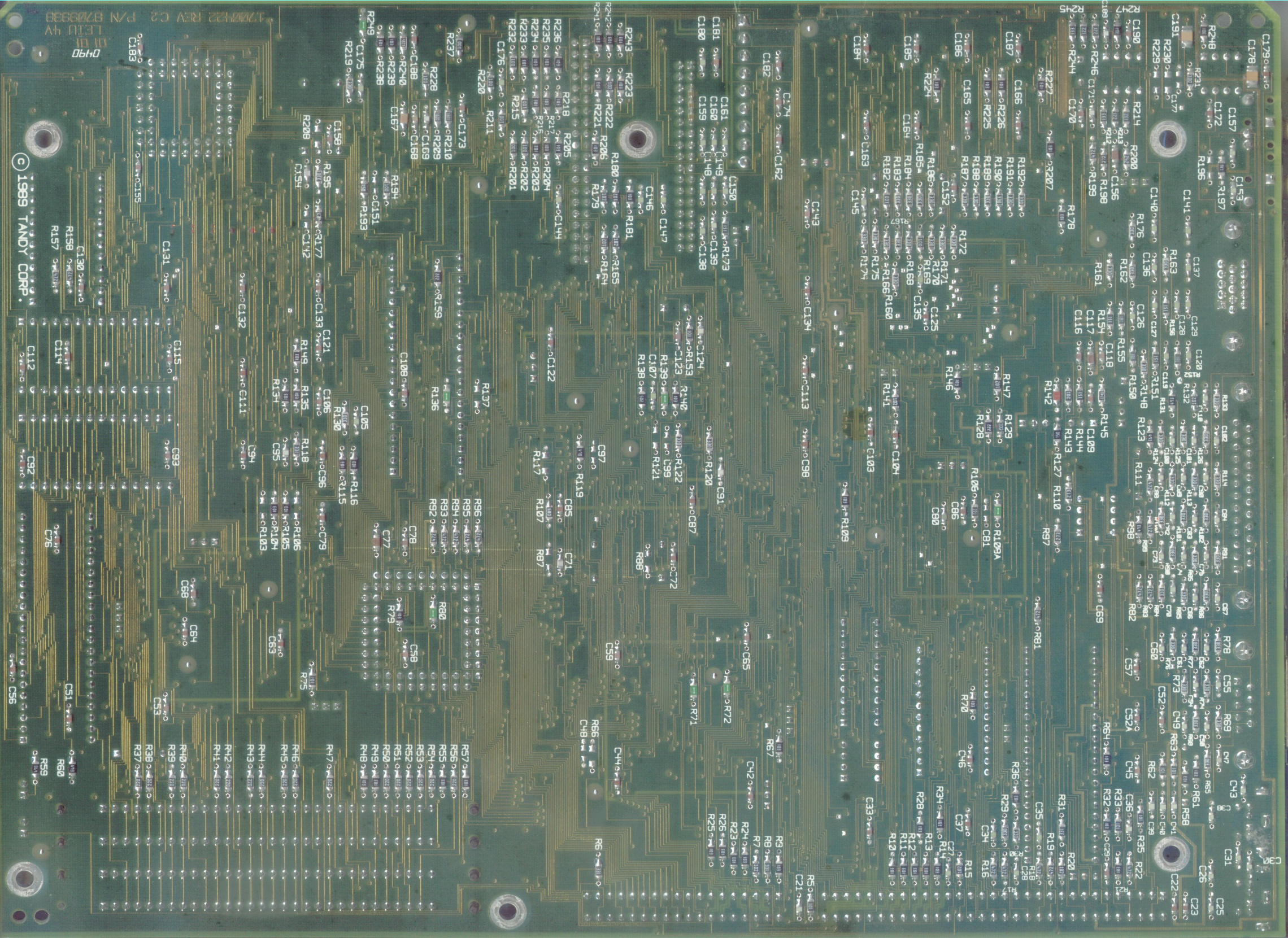

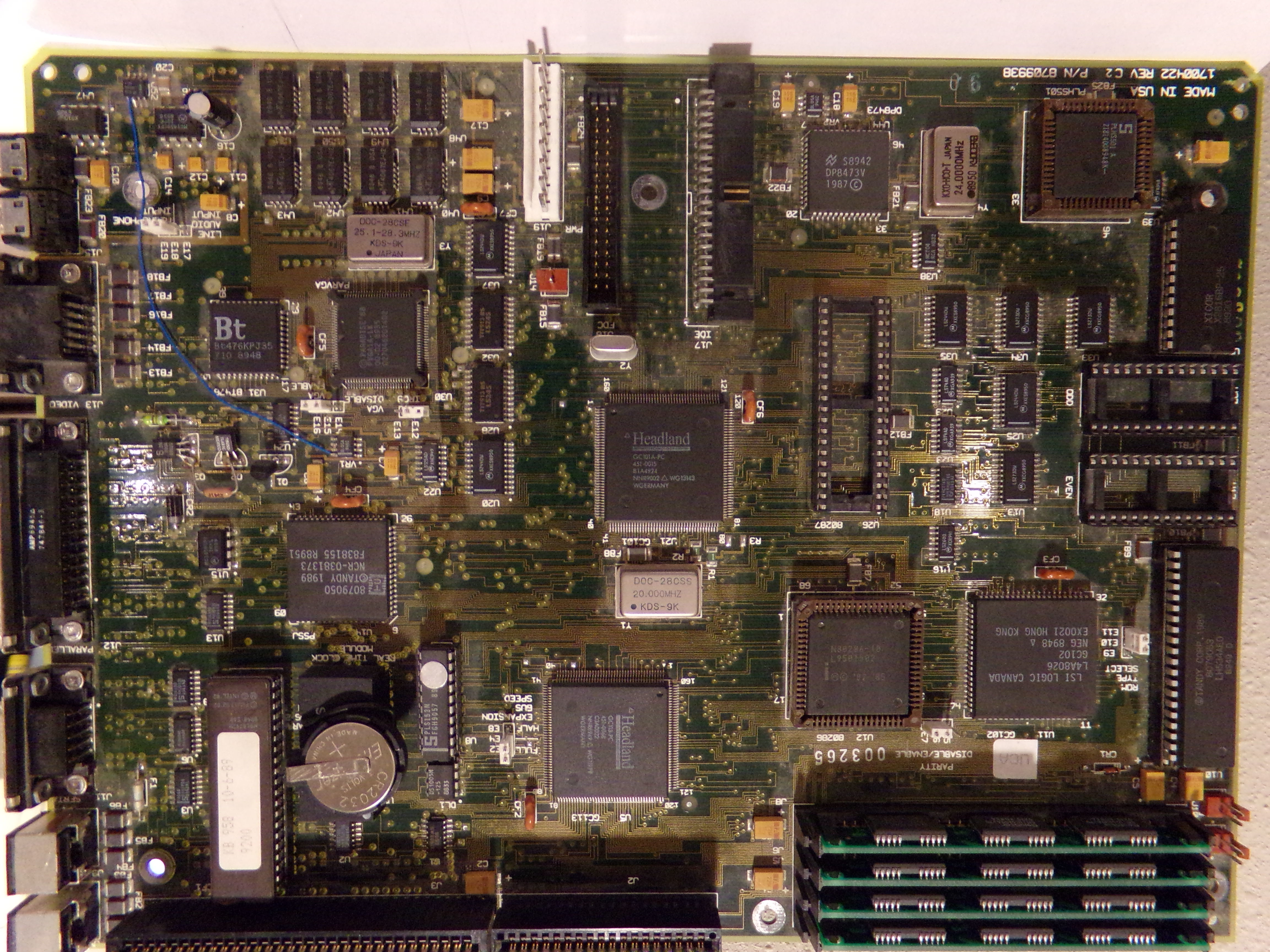

Image 1 of 5 (Adam Hansen)
Image 2 of 5 (Adam Hansen)
Image 3 of 5 (Adam Hansen)
Image 4 of 5 (Adam Hansen)
Image 5 of 5 (Adam Hansen)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
