Taiwan Commate / Commell LV-673NSKAL (Kaleidescape OEM)
Chipset
Socket
FSB speeds 400MHz533MHz
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Max VRAM size128MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- Taiwan Commate / Commell LV673NSKAL (Kaleidescape OEM)
- Kaleidescape KSERVER-1500 System Board
I/O ports1x
Floppy interface
1x
IDE interface
1x
LVDS
1x
RJ-45 LAN
2x
SATA I
3x
Serial
4x
USB 2.0
Expansion slots1x
32-bit mini-PCI
1x
PCIe x16
Notes
Cut down version of Taiwan Commate / Commell LV-673
Last updated 2025-12-08T05:11:45Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> Power Regulation
-> Super I/O
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/12/2006-Alviso-6A79GTP9C-00
Note
Core version
v6.00PG
BIOS version
Logs
7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
14.25.50
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
4.1
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
Empty
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-09-01
File
Logs
Chip
Release date
File
Logs
Socket
Release date
File
Logs

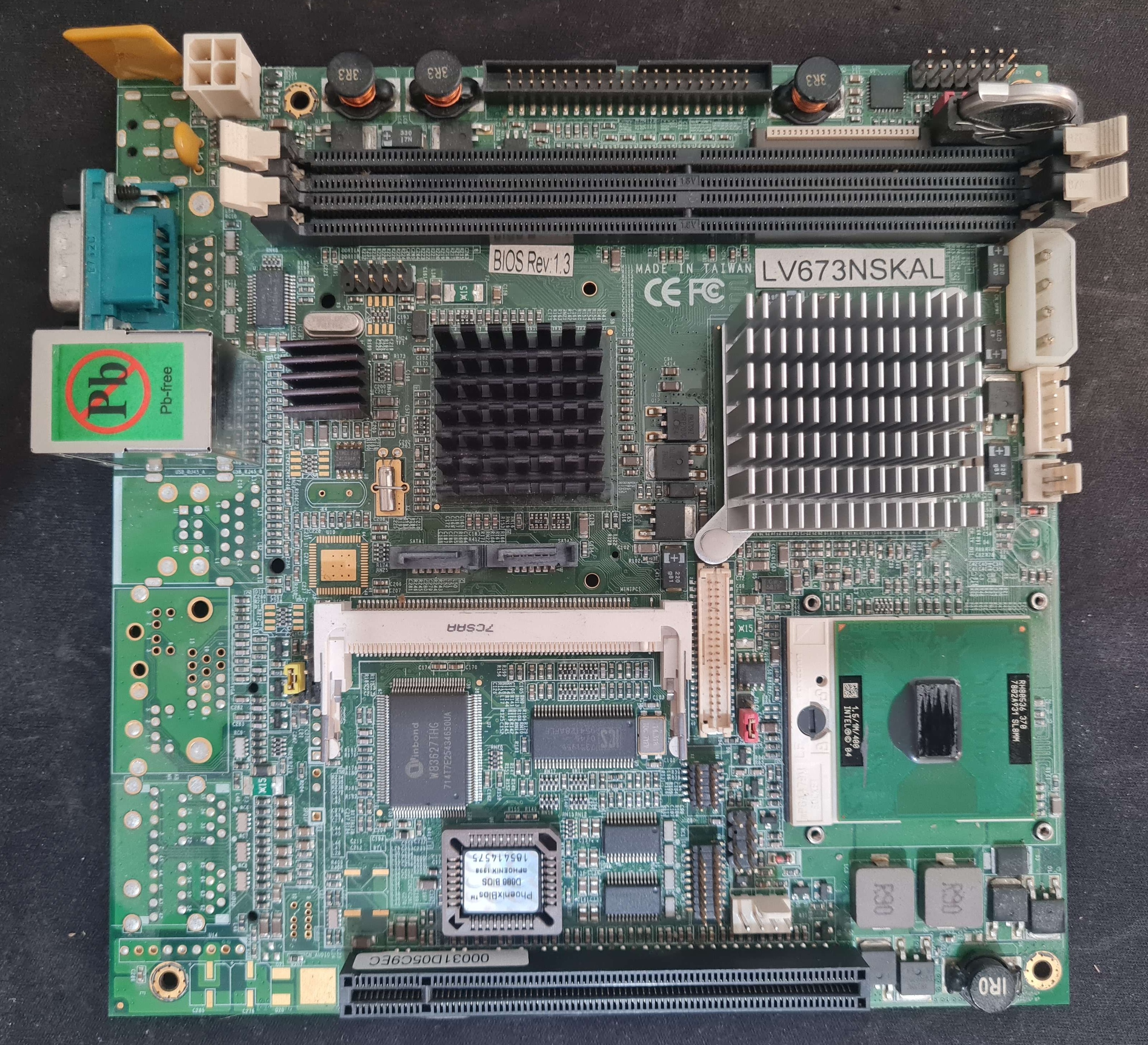

Image 1 of 3 (Xeon3D)

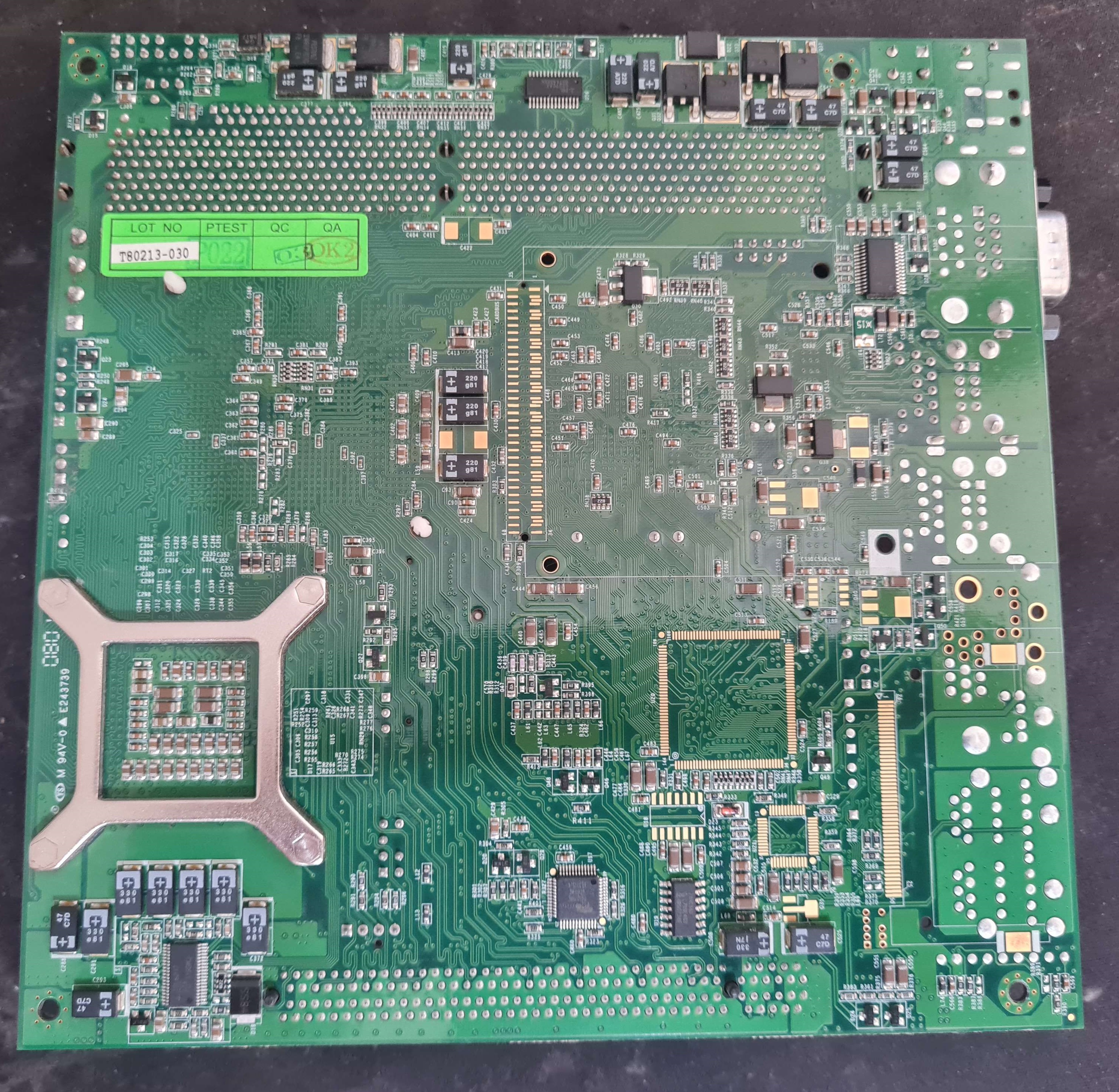

Image 2 of 3 (Xeon3D)

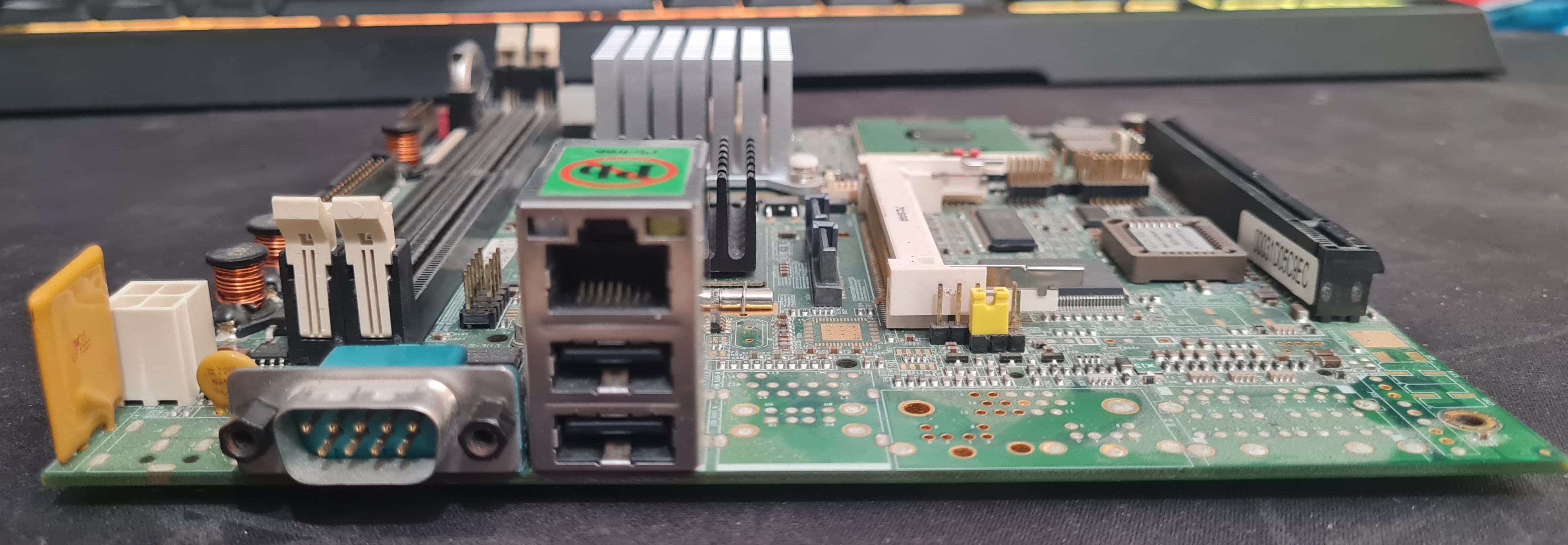

Image 3 of 3 (Xeon3D)
