Taiwan Commate / Commell LE-562
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speed
133MHz
moboForm factor
EBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
dimDimensions
203mm x 146mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB(LE-562VL2-P)640MB(LE-562VL2-128)768MB(LE-562VL2-256)
ramRAM type
SDR UDIMM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
CF Card Slot
1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
Parallel
2x
RJ-45 LAN
4x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
1x
32-bit PCI
notes Notes

Has a support for 2x PCI bus master add-in cards with riser card and 1x PC/104-plus interface

Both parallel ports can be configurated as a 8-bit GPIO ports

LE-562VL2-128 (VIA Eden 533 MHz CPU, 128 MB onboard SDRAM)

LE-562VL2-256 (VIA Eden 533 MHz CPU, 256 MB onboard SDRAM)

LE-562VL2-P (VIA Eden 533 MHz CPU, no onboard SDRAM)

LE-562-OEM (Customized CPU: VIA Eden 667, 400 MHz or EBGA C3 800 MHz)

Last updated 2025-05-29T19:42:36Z
Board info score is 7.5/10
bios 0 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Check Sum: A1ED
Core version
BIOS version
1.6
Logs
POST string
Note
Check Sum: 286E
Core version
BIOS version
1.3
Logs
POST string
Note
Check Sum: 0813
Core version
BIOS version
1.2
Logs
POST string
Note
Check Sum: 442B
Core version
BIOS version
1.1
Logs
POST string
Note
Check Sum: 2CC6
Core version
BIOS version
1.0
Logs
drv 12 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
13.00.49
OS support
Windows 9x
Arch
Size
4.8MB
Filename
Name
Version
11.10.09
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-11-09
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs

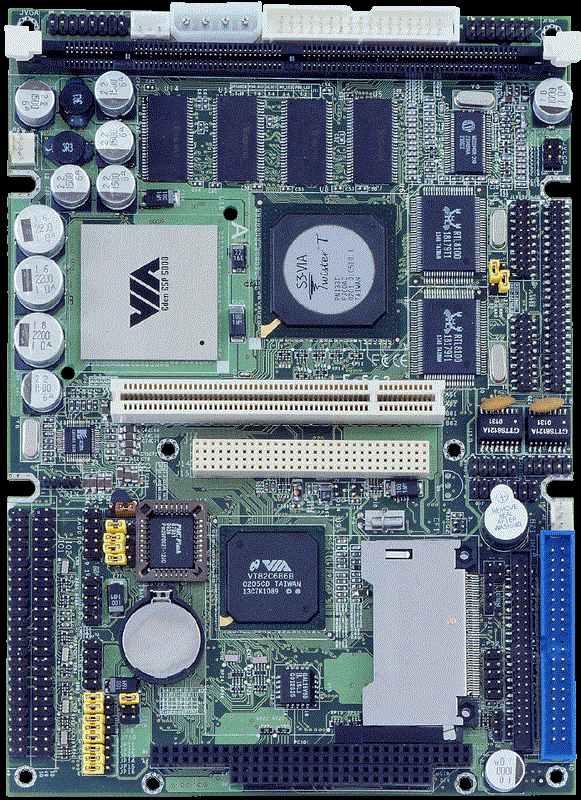

image1 Image 1 of 1 (Taiwan Commate / Commell)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
