Taiwan Commate / Commell LE-37I (QM170)
Logs
chipChipset
cpuSocket
FCBGA1440 (BGA1440)
speedFSB speed
Empty
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
146mm x 101mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
260-pin DDR4 SO-DIMM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
DVI
1x
DisplayPort
1x
GPIO
1x
HDMI
1x
LVDS
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
2x
SATA III
6x
Serial
4x
USB 2.0
4x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
2x
Mini-PCIe
1x
SIM Card Socket
notes Notes

LE-37I3S - i3-6100E CPU, QM170 (TDP 35W) + Heat Spreader, support HDMI, LVDS, VGA, DVI-D, DP

LE-37I5S - i5-6440EQ CPU, QM170 (TDP 45W) + Heat Spreader, support HDMI, LVDS, VGA, DVI-D, DP

LE-37I7S - i7-6822EQ CPU, QM170 (TDP 25W) + Heat Spreader, support HDMI, LVDS, VGA, DVI-D, DP

LE-37I3F - i3-6100E CPU, QM170 (TDP 35W) + Cooler fan, support HDMI, LVDS, VGA, DVI-D, DP

LE-37I5F - i5-6440EQ CPU, QM170 (TDP 45W) + Cooler fan, support HDMI, LVDS, VGA, DVI-D, DP

LE-37I7F - i7-6822EQ CPU, QM170 (TDP 25W) + Cooler fan, support HDMI, LVDS, VGA, DVI-D, DP

Last updated 2025-05-29T19:43:14Z
Board info score is 7.4/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

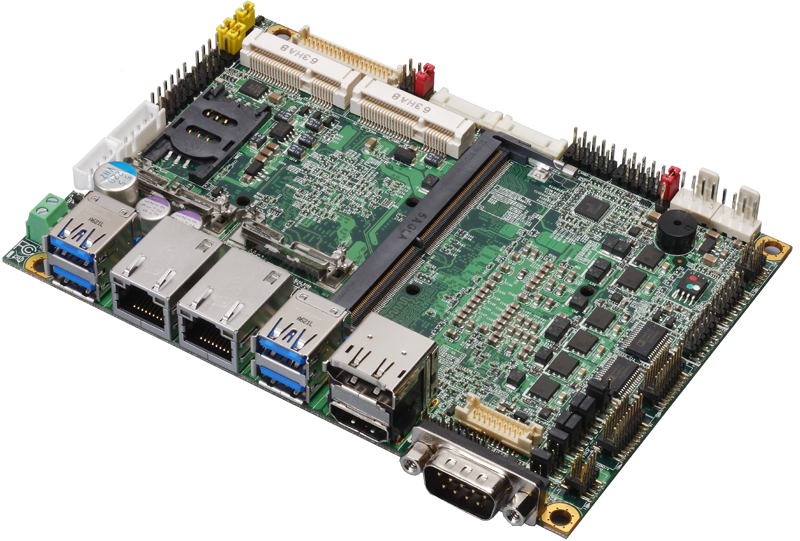

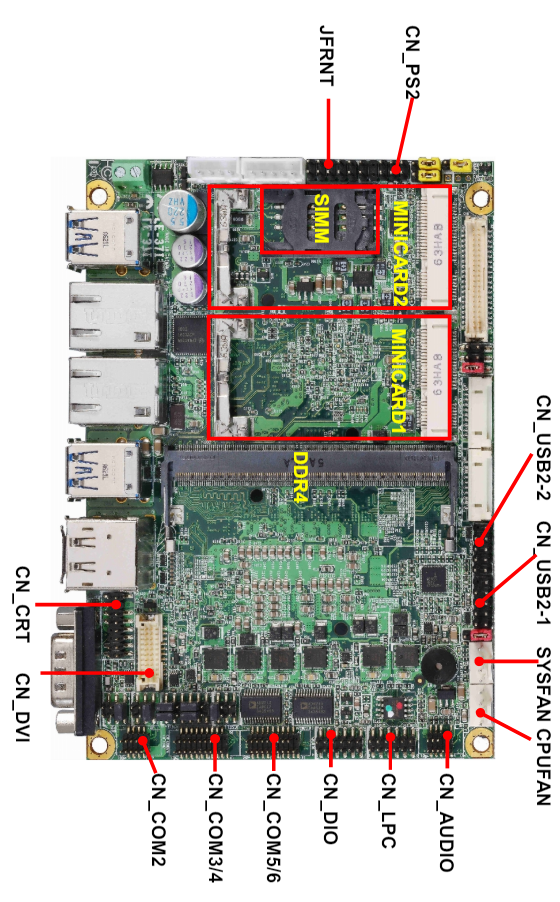

image1 Image 1 of 4 (Taiwan Commate / Commell)
image2 Image 2 of 4 (Taiwan Commate / Commell)
image3 Image 3 of 4 (Taiwan Commate / Commell)

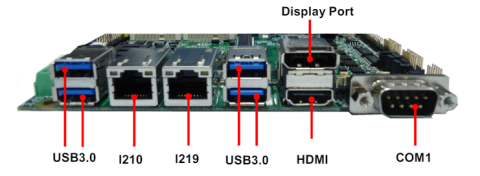

image4 Image 4 of 4 (Taiwan Commate / Commell)
