Taiwan Commate / Commell LE-362
Chipset
Socket
FSB speed 133MHz
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions146mm x 101mm
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
512MB(LE-362VL-P)640MB(LE-362VL-128)
RAM type 144-pin SDR SO-DIMM
PSU connector
Empty
Also known as
- Taiwan Commate / Commell LE-362VL-P
- Taiwan Commate / Commell LE-362VL-128
I/O ports1x
CF Card Slot
1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S-Video
1x
Serial
2x
USB 2.0
1x
VGA
Expansion slotsEmpty
Notes
Was also made with VIA Eden 400/533/800 MHz CPUs for OEM customers
Embedded PC/104-plus interface for 32-bit ISA-based PC/104-plus embedded peripheral modules.
LE-362VL-P (VIA Eden 667Mhz Cpu)
LE-362VL-128 (VIA Eden 667Mhz Cpu, onboard 128 MB PC-133 SDRAM)
Last updated 2025-05-29T19:38:12Z
Board info score is 5.6/10
Chips
-> Chipset part
CPU family support
0 BIOS files available
7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
16.01.20.04
OS support
Windows 9x
Arch
Size
5.6MB
Filename
Name
Version
4.14.01.0004
OS support
Windows 9x
Arch
Size
5.2MB
Filename
Name
Version
2.56
OS support
Windows 2000
Windows 9x
Arch
x86
Size
13.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.4MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2004-12-01
File
Logs
Family
Release date
File
Logs

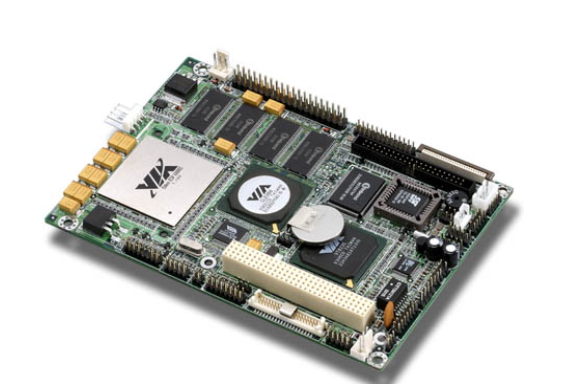

Image 1 of 2 (Taiwan Commate / Commell)
Image 2 of 2 (Taiwan Commate / Commell)
