Taiwan Commate / Commell HS-870SZ
Logs
chipChipset
cpuSocket
FCBGA479 (BGA479)
speedFSB speed
400MHz
moboForm factor
Single Board Computer
dimDimensions
185mm x 127mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM types
DDR UDIMMDDR UDIMM ECC
pwrPSU connector
Molex (4-pin)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
2x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 2.0
1x
VGA
cardExpansion slots
1x
16-bit ISA
notes Notes

Embedded Celeron M 600Mhz

Last updated 2025-05-29T19:31:58Z
Board info score is 8.9/10
bios 1 BIOS file available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
(Missing bios)
Note
HS-870SCM6 VER 2.1
Core version
6.00PG
BIOS version
2.1
Logs
POST string
08/13/2004-i855-W83627HF-6A69YTPCC-00
Note
HS-870S VER 1.0
Core version
6.00PG
BIOS version
Logs
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
4.1
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Name
Version
2.11.15
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename

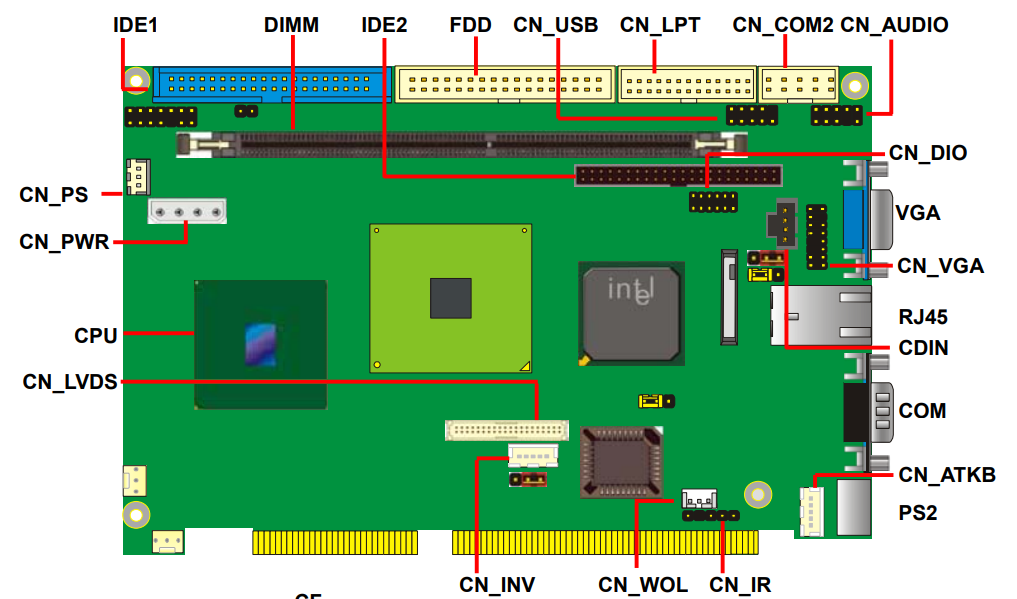

image1 Image 1 of 2 (Taiwan Commate / Commell)

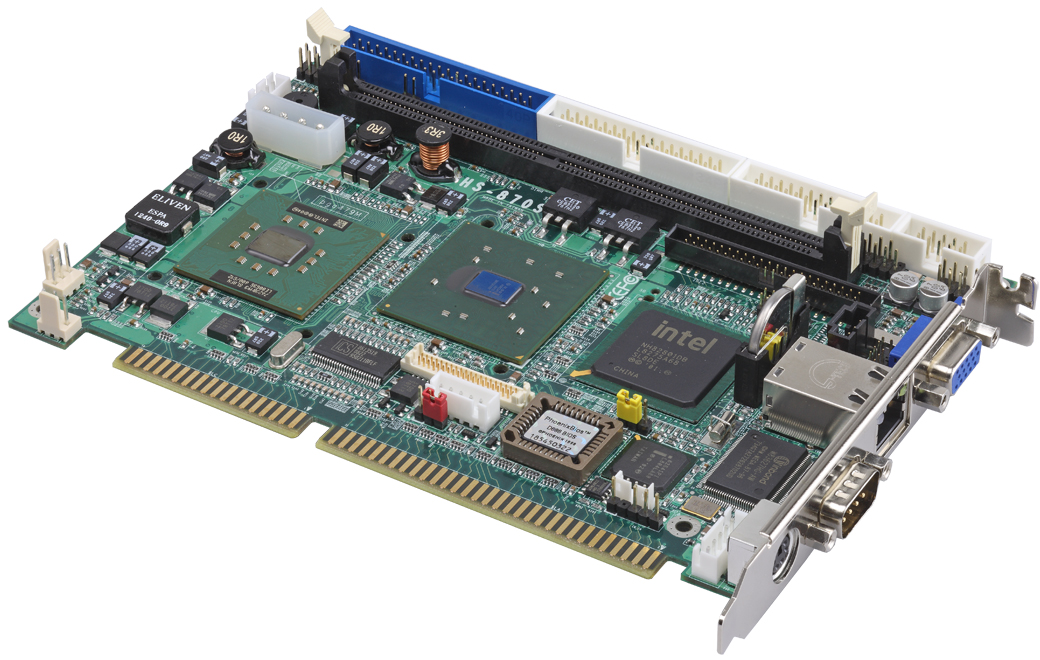

image2 Image 2 of 2 (Taiwan Commate / Commell)
