Taiwan Commate / Commell HE-B72
Chipset
Socket
FSB speed Empty
Form factorSingle Board Computer
Dimensions168mm x 126mm
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type 260-pin DDR4 SO-DIMM
PSU connector
Also known as
- Taiwan Commate / Commell HE-B7231
- Taiwan Commate / Commell HE-B7251
- Taiwan Commate / Commell HE-B7271
- Taiwan Commate / Commell HE-B7234
- Taiwan Commate / Commell HE-B7254
- Taiwan Commate / Commell HE-B7274
I/O ports2x
DVI
1x
DisplayPort
1x
GPIO
1x
LVDS
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
3x
SATA III
6x
Serial
4x
USB 2.0
4x
USB 3.0
1x
VGA
1x
mSATA
Expansion slots2x
Mini-PCIe
1x
PICMG 1.3 (SHB Express) Half-size
1x
SIM Card Socket
Notes
HE-B7231 (Intel i3-6100E, 4 x PCIe x1)
HE-B7251 (Intel i5-6440EQ, 4 x PCIe x1)
HE-B7271 (Intel i7-6820EQ, 4 x PCIe x1)
HE-B7234 (Intel i3-6100E, 1 x PCIe x4)
HE-B7254 (Intel i5-6440EQ, 1 x PCIe x4)
HE-B7274 (Intel i7-6820EQ, 1 x PCIe x4)
Last updated 2025-05-29T19:34:05Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Bridge Interface
-> Miscellaneous
-> Network
-> Super I/O
CPU family support
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2008-04-15
File
Logs
Chip
Release date
2005-08-25
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Chip
Release date
File
Logs

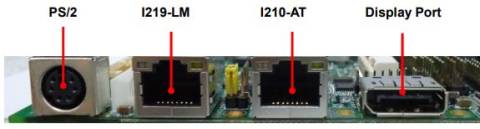

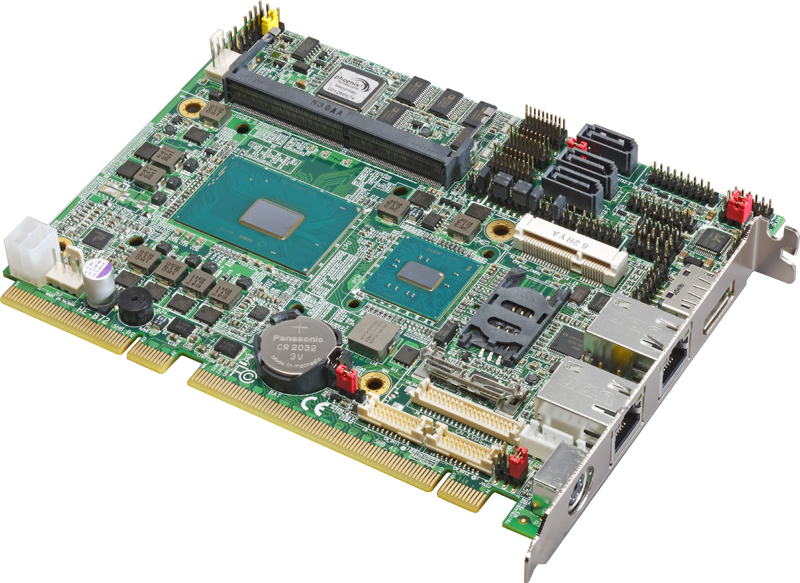

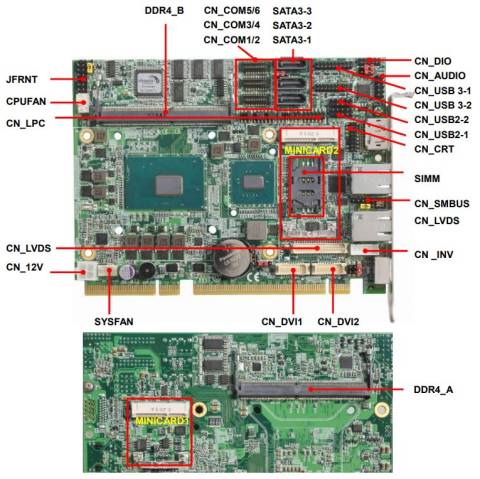

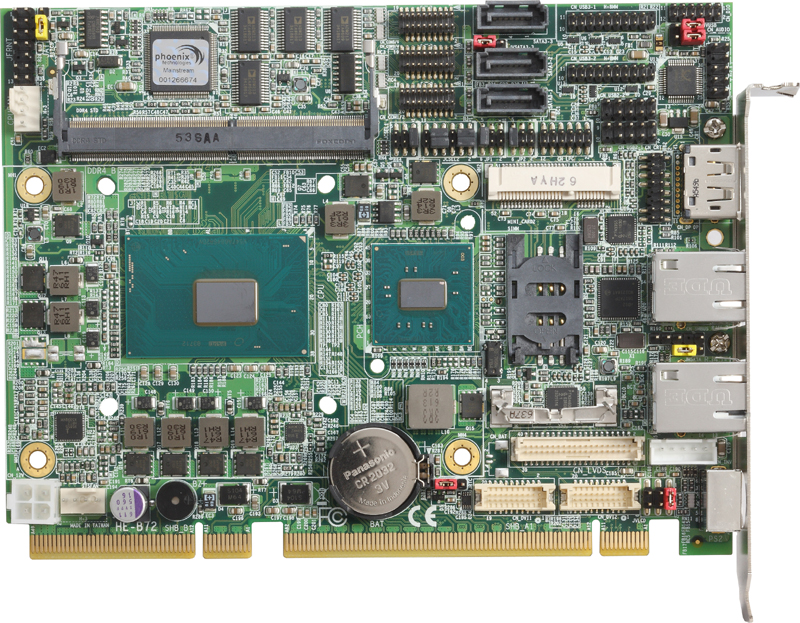

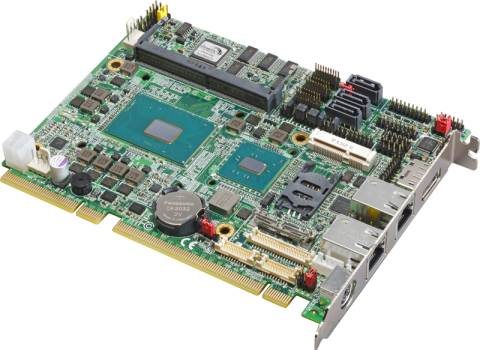

Image 1 of 4 (Taiwan Commate / Commell)
Image 2 of 4 (Taiwan Commate / Commell)
Image 3 of 4 (Taiwan Commate / Commell)
Image 4 of 4 (Taiwan Commate / Commell)
