Taiwan Commate / Commell AS-C7A
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions307mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
64GB
RAM types DDR4 UDIMMDDR4 UDIMM ECC
PSU connector
Also known as
- Taiwan Commate / Commell AS-C7AT

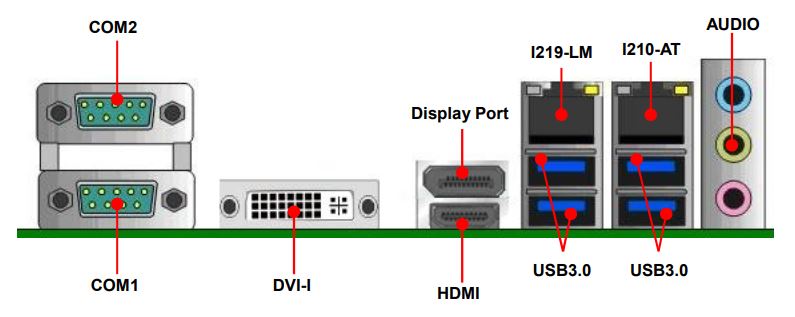

I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
DisplayPort
1x
GPIO
1x
HDMI
1x
LVDS
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
4x
SATA III
6x
Serial
4x
USB 2.0
6x
USB 3.0
1x
VGA
2x
mSATA
Expansion slots4x
32-bit PCI
2x
Mini-PCIe
1x
PCIe x1
1x
PCIe x16
1x
PCIe x4
1x
SIM Card Socket
Notes
Mini PCIe slots support mSATA
Supports Xeon E3-1200 v5/v6 CPU (ECC Memory Support)
AS-C7A (Display Port)
AS-C7AT (Header for 2nd VGA or 2nd LVDS)
Last updated 2025-05-29T19:20:11Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Bridge Interface
-> Miscellaneous
-> Network
-> Super I/O
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2011-07-25
File
Logs
Chip
Release date
2008-04-15
File
Logs
Chip
Release date
2005-08-25
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

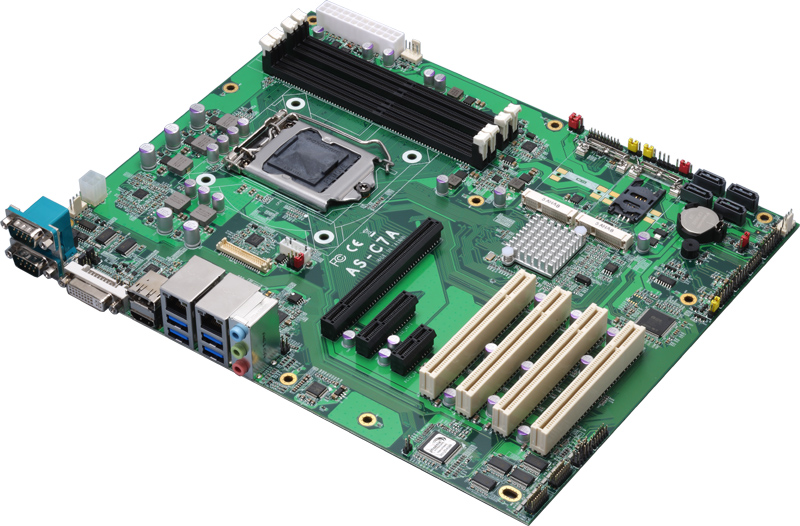

Image 1 of 4 (Taiwan Commate / Commell)

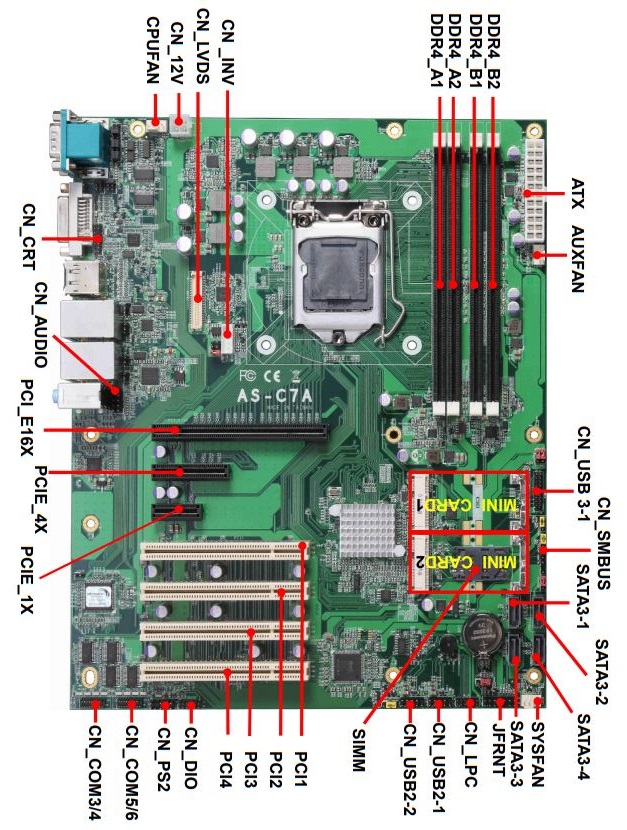

Image 2 of 4 (Taiwan Commate / Commell)
Image 3 of 4 (Taiwan Commate / Commell)

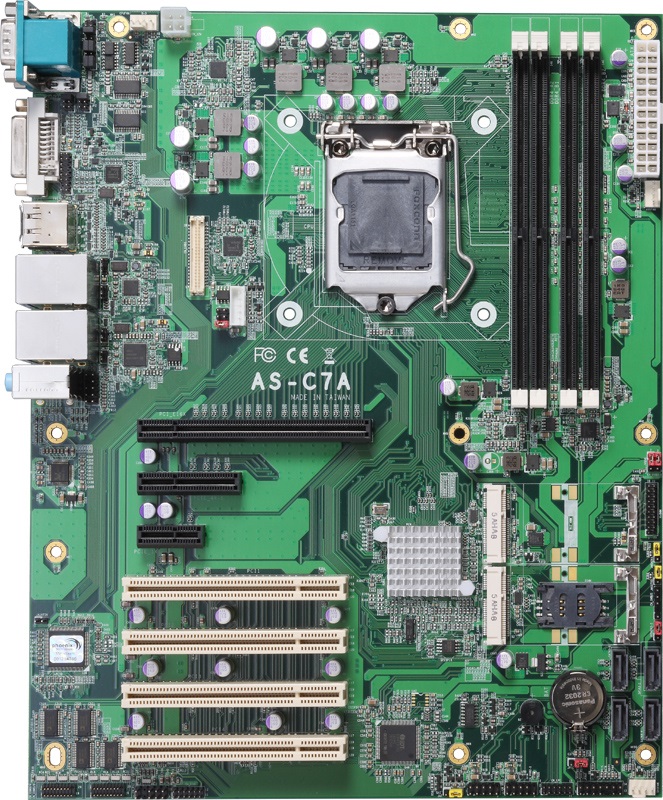

Image 4 of 4 (Taiwan Commate / Commell)
