Supermicro X6DH8-XG2
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speed
800MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305 mm x 332 mm
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 RDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
2x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
2x
SATA I
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
5x
64-bit PCI-X
1x
PCIe x16 @ x8
notes Notes

Dual channel memory bus - memory must be populated in pairs. Single-rank modules are recommended for 6+ DIMM support

Last updated 2023-07-11T12:15:43Z
Board info score is 9/10
bios 4 BIOS files available

vendor Phoenix - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
4.00.041
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
144.8KB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2006-02
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

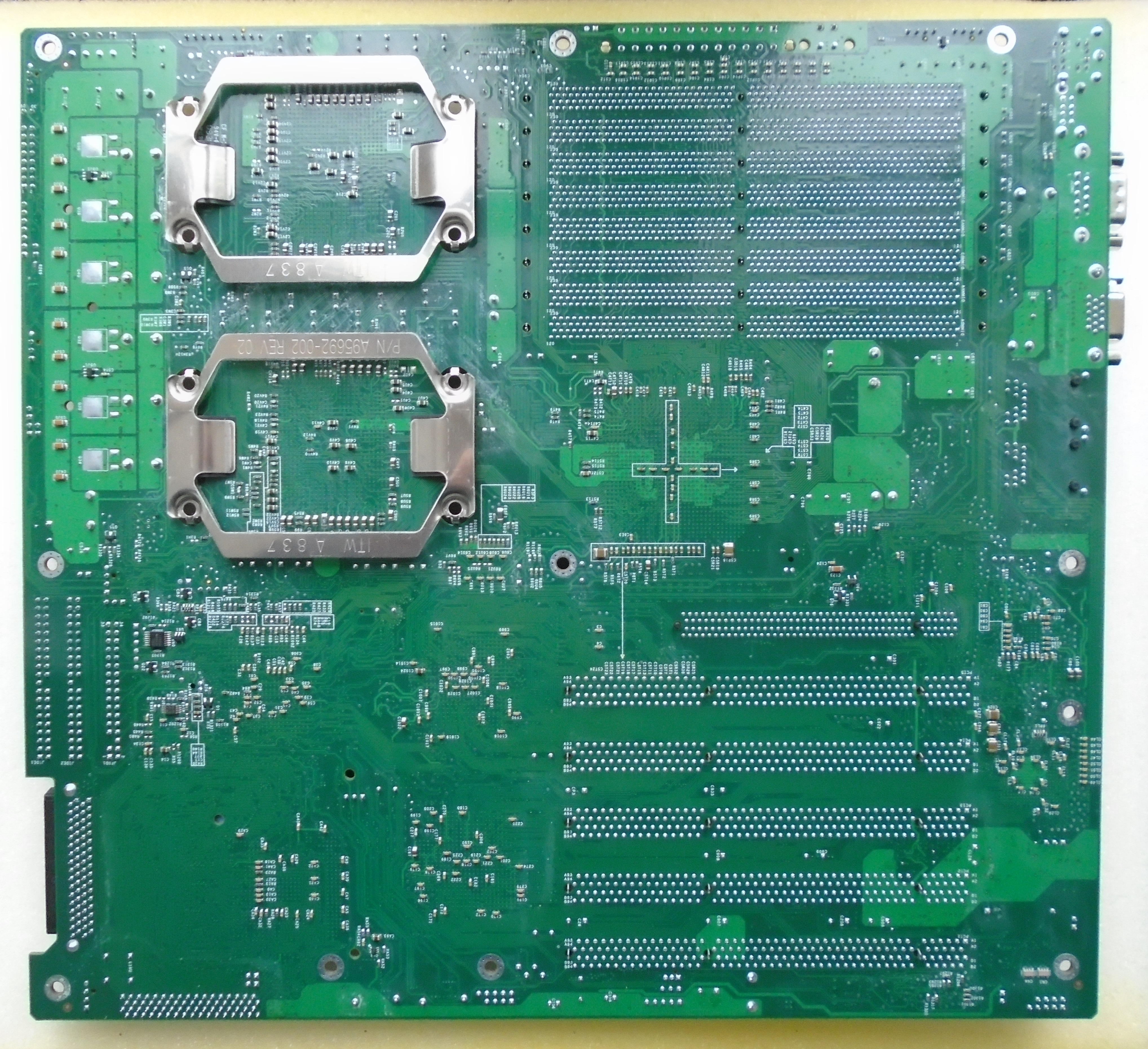

image1 Image 1 of 3 (evasive)

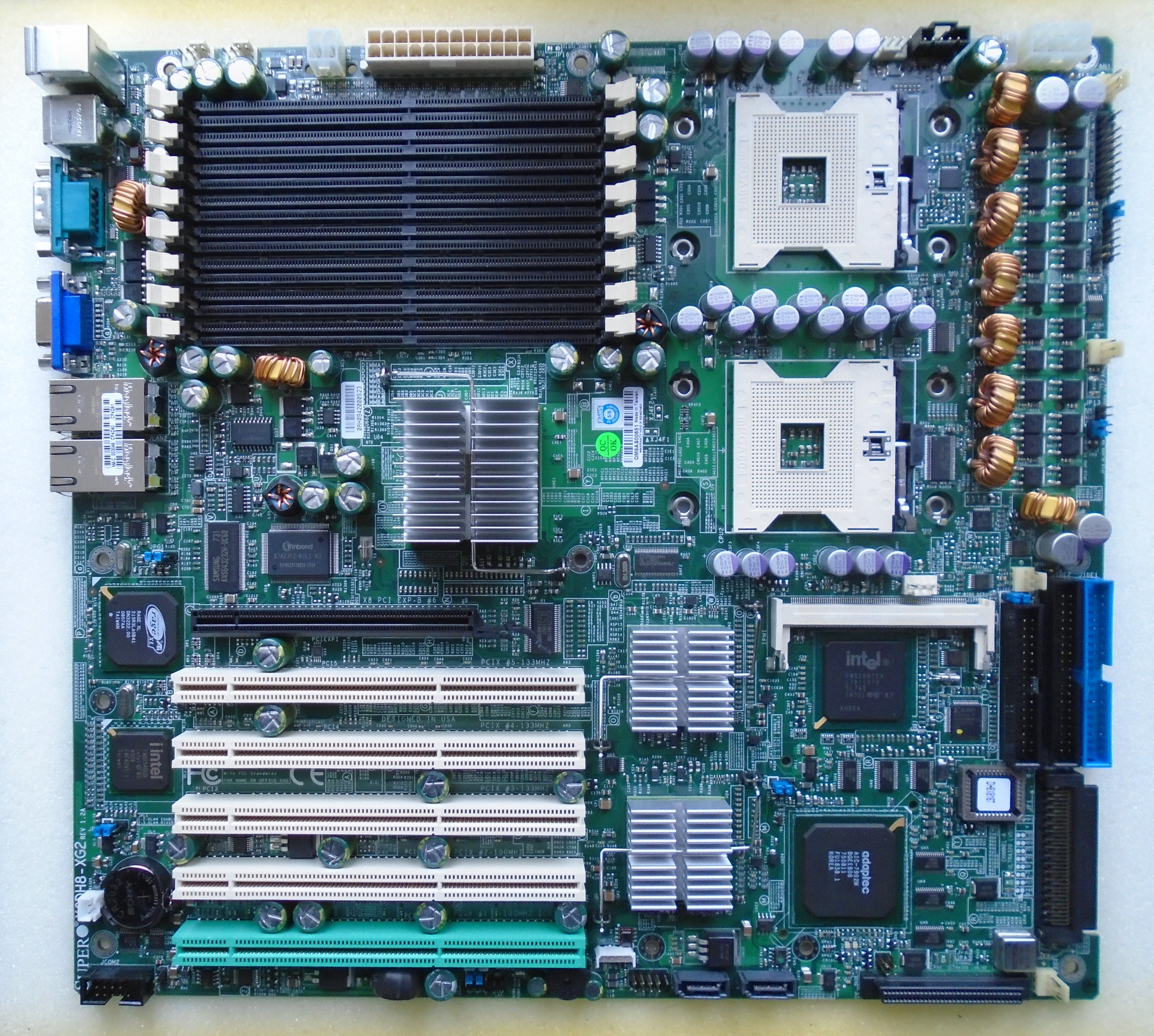

image2 Image 2 of 3 (PC Hoarder Patrol)

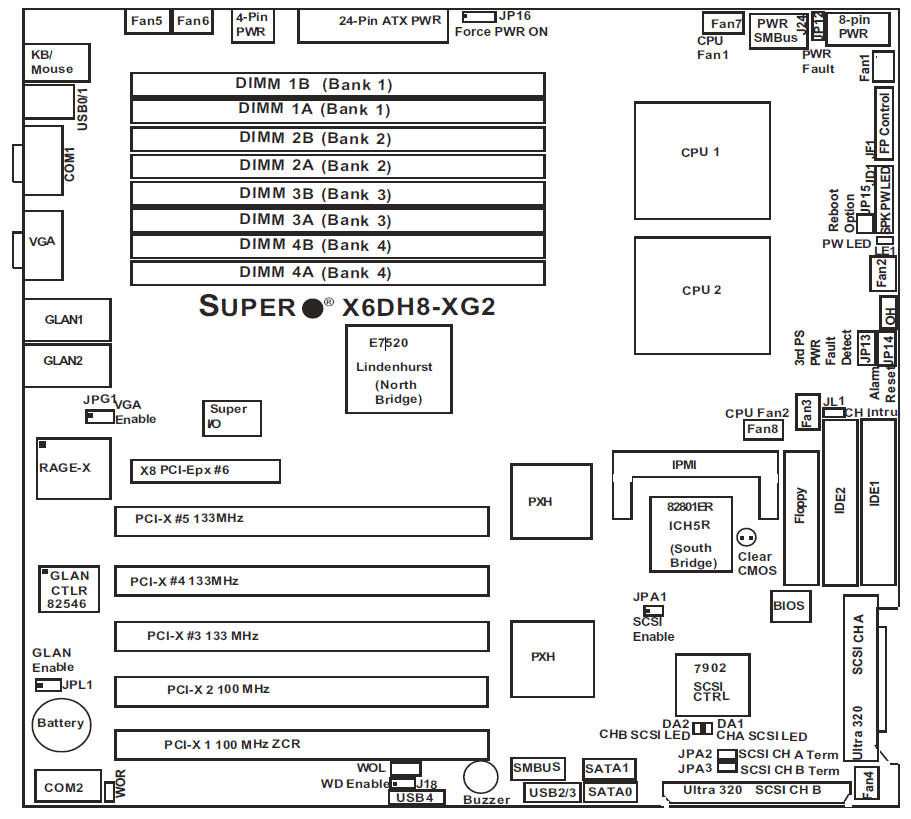

image3 Image 3 of 3 (PC Hoarder Patrol)
