Octek RHINO 8
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 220mm
chipCache
256KB512KB1MB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
3x
32-bit PCI
Last updated 2025-06-16T06:06:10Z
Board info score is 9.2/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/15/97-Opti-VIPER-M-2A5UNO0EC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
01/10/97-Opti-VIPER-M-2A5UNO0FC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
08/30/96-Opti-VIPER-M-2A5UNO0EC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
08/30/96-Opti-VIPER-M-2A5UNO0EC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
08/14/96-Opti-VIPER-M-2A5UNO0DC-00
Note
Core version
4.51PG
BIOS version
Logs
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

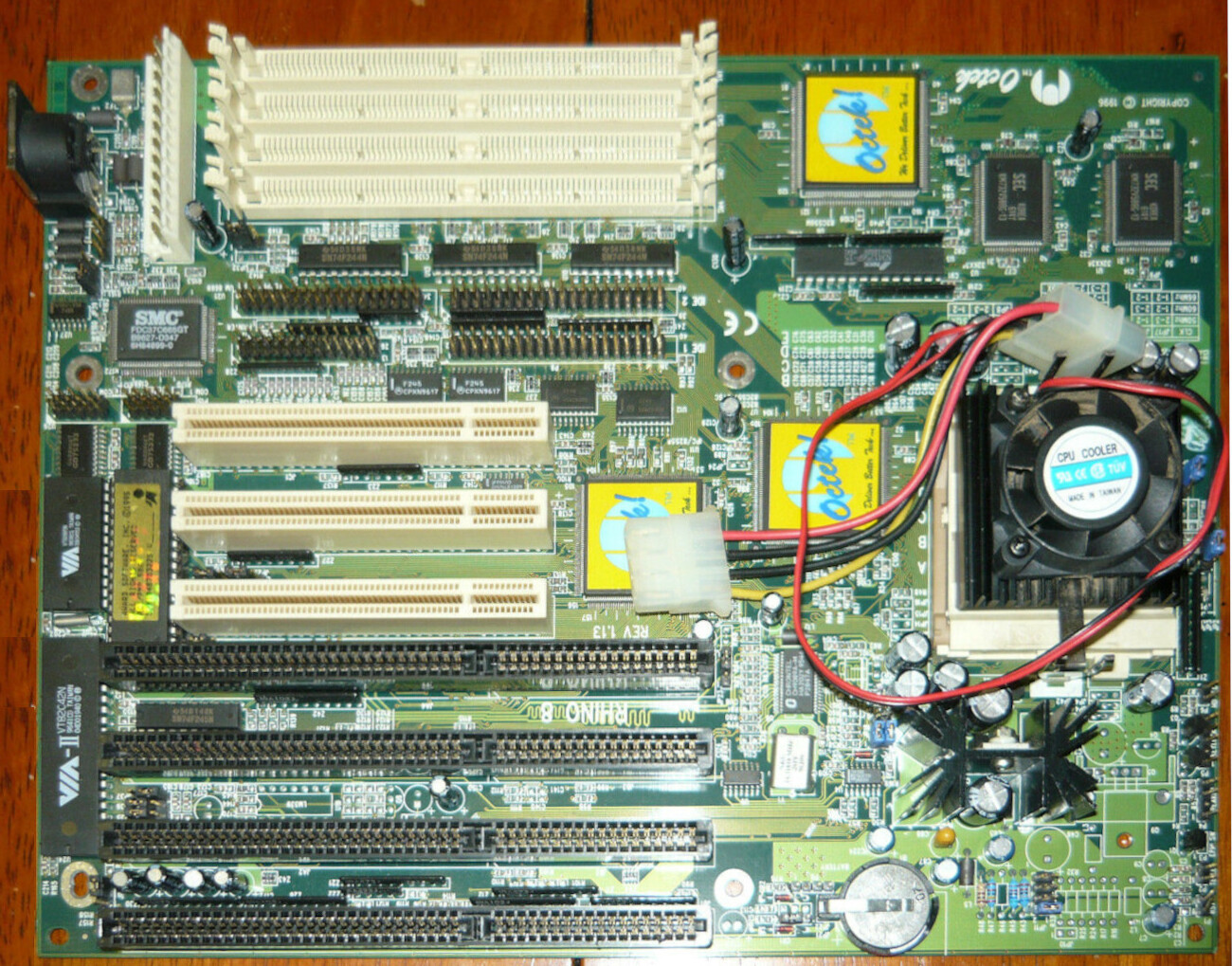

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2
