MSI NF750-G55
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
  • MSI MS-7578 VER:1.0
connI/O ports
1x
DVI
1x
Floppy interface
1x
HDMI
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
notes Notes
  • NVidia Hybrid SLI feature is only supported in Windows Vista with specific video cards and driver versions.
Last updated 2025-05-15T19:36:54Z
Board info score is 9.4/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-030311-ATHLON64-A7578100
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-091310-ATHLON64-A7578100
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-051810-ATHLON64-A7578100
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-092409-ATHLON64-A7578100
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-080509-ATHLON64-A7578100
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs
Chip
Release date
2008-11-28
File
Logs

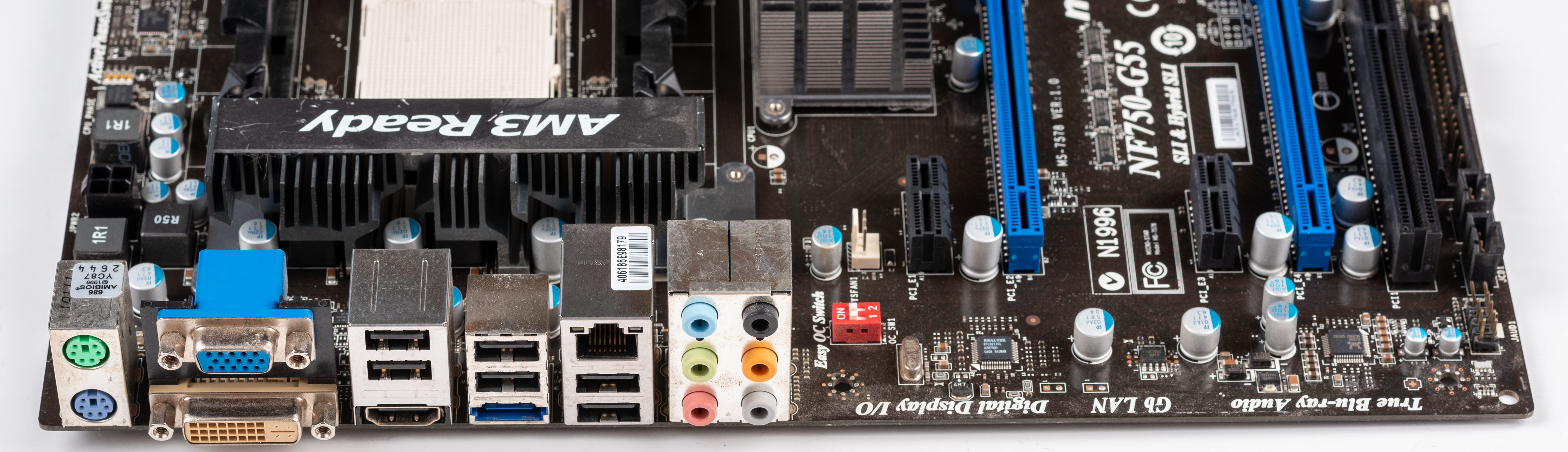

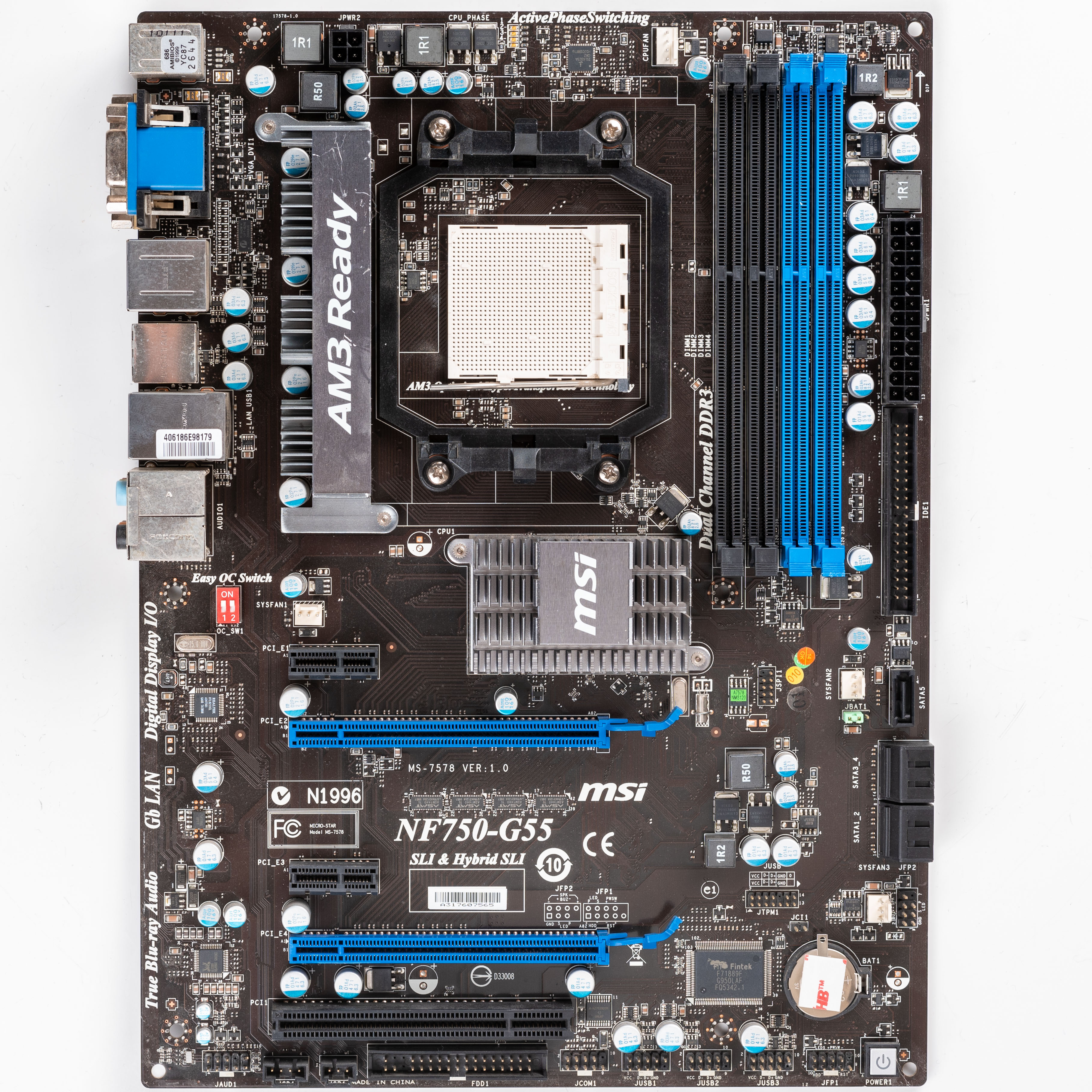

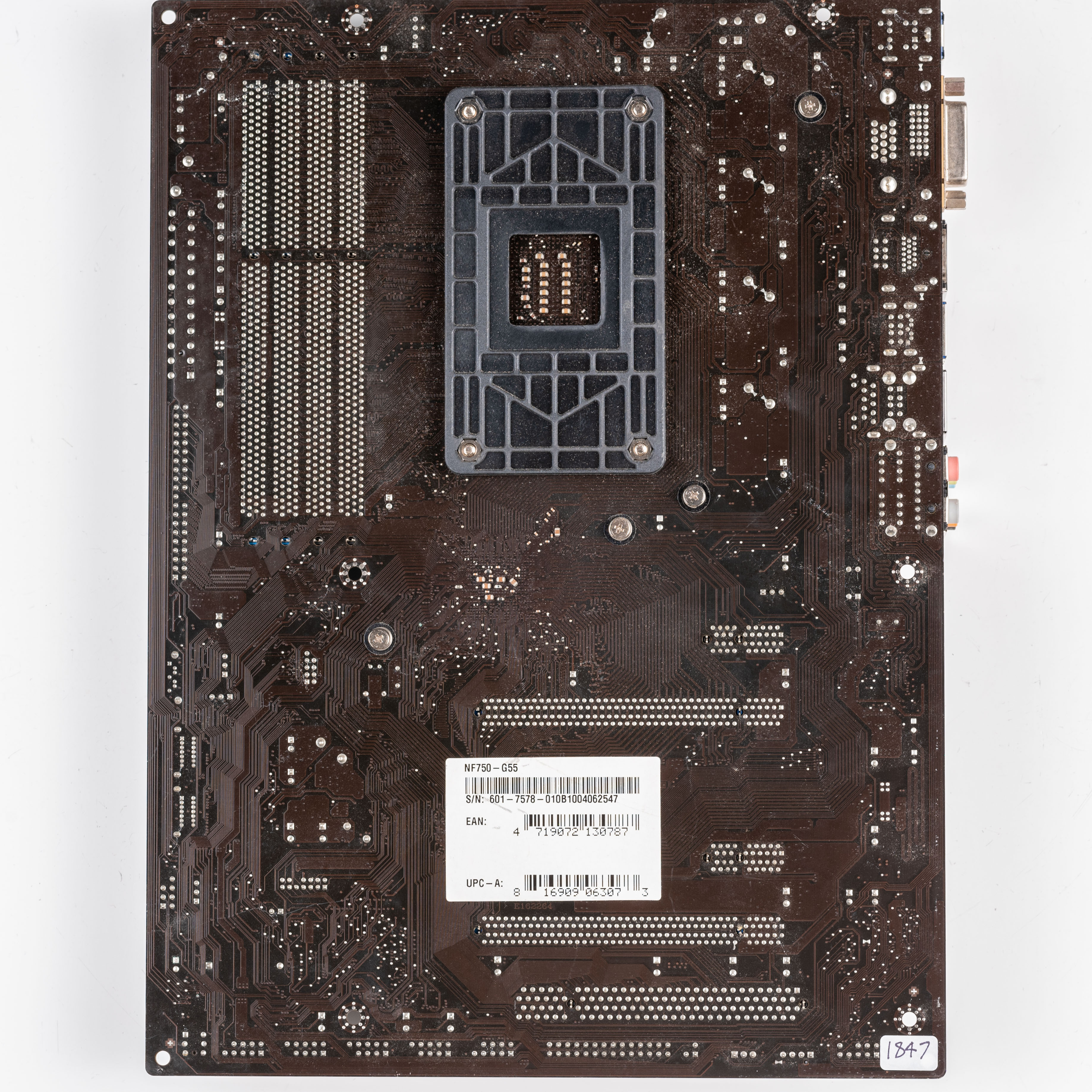

image1 Image 1 of 4 (MSI)
image2 Image 2 of 4 (Motherboard Continuum)
image3 Image 3 of 4 (Motherboard Continuum)
image4 Image 4 of 4 (Motherboard Continuum)
