MSI MS-6593
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 200mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(DDR-333)
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
S/PDIF
2x
Serial
4x
USB 1.x
cardExpansion slots
6x
32-bit PCI
1x
CNR
1x
Universal AGP
Last updated 2025-02-11T23:12:13Z
Board info score is 8.8/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0425-009999-00101111-040201-VIA_K7-MS-6593C
Note
A6593VMS V1.6 042503
Core version
070010
BIOS version
Logs
POST string
62-1122-009999-00101111-040201-VIA_K7-MS-6593C
Note
A6593VMS V1.5 112202
Core version
070010
BIOS version
Logs
POST string
62-1108-009999-00101111-040201-VIA_K7-MS-6593C
Note
A6593VMS V1.4 110802
Core version
070010
BIOS version
Logs
POST string
62-0917-009999-00101111-040201-VIA_K7-1AARK204
Note
A6593VMS V1.3 091702
Core version
070010
BIOS version
Logs
POST string
62-0808-009999-00101111-040201-VIA_K7-1AARK204
Note
A6593VMS V1.1 080802
Core version
070010
BIOS version
Logs
POST string
62-0801-009999-00101111-040201-VIA_K7-1AARK204
Note
A6593VMS V1.0 080102
Core version
070010
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2002-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs

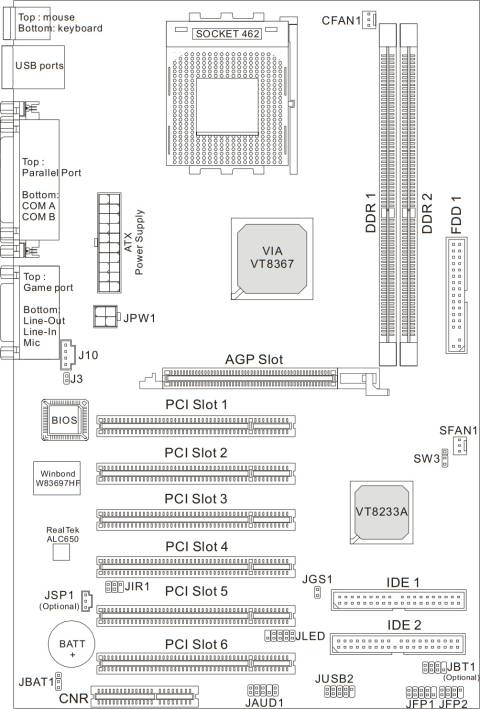

image1 Image 1 of 2 (MSI)

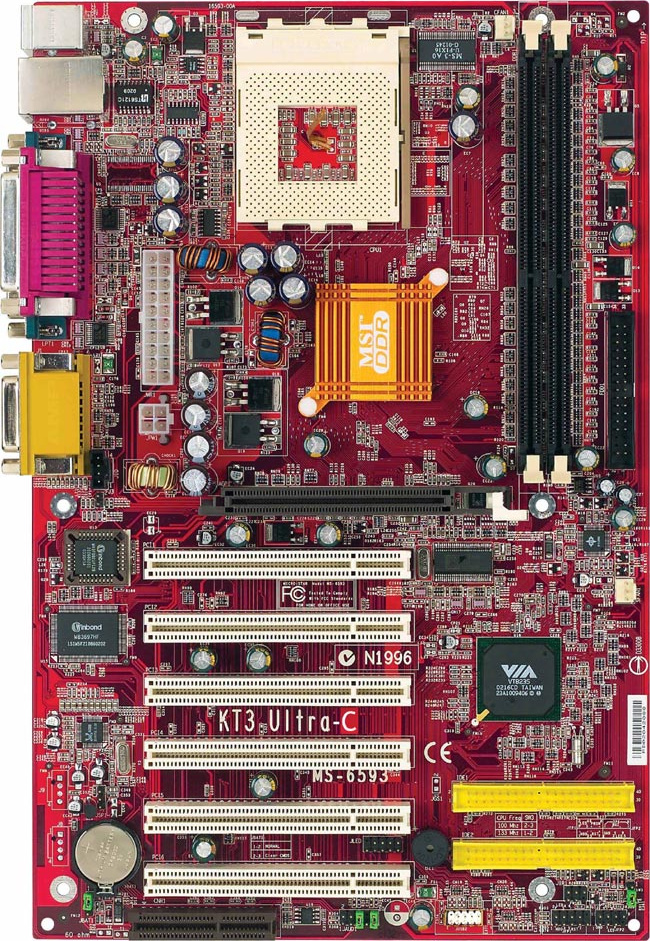

image2 Image 2 of 2 (MSI)
