MSI MS-5182 (AL11)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz75MHz83MHz95MHz100MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 192mm
ramMax VRAM size
8MB
chipCache
512KB
ramMax RAM size
512MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
3x
32-bit PCI
Last updated 2025-09-27T20:23:31Z
Board info score is 9.6/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-0902-001169-00101111-071599-41E_43C
Note
Core version
071595
BIOS version
Logs
POST string
51-0420-000000-00111111-041599-41E_43C-MS5182-T99
Note
TIME BIOS
Core version
062600
BIOS version
Logs
POST string
51-1008-000000-00111111-071595-41E_43C
Note
Core version
071595
BIOS version
Logs
POST string
51-0821-000000-00111111-071595-41E_43C
Note
Core version
071595
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0.1.2
OS support
Windows 2000 Windows XP/2k3
Arch
Size
30.4KB
Filename
Name
Version
1.20
OS support
Windows 9x
Arch
Size
615.5KB
Filename
Name
Version
3.56
OS support
Windows 9x Windows NT 4.0
Arch
Size
880.3KB
Filename
Name
Version
1.00
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2.13
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
7.3MB
Filename
Name
Version
2.20
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
10.1MB
Filename
Name
Version
4.06.1154
OS support
Windows 9x Windows NT 4.0
Arch
Size
20.9MB
Filename
Name
Version
5.12.01.4107
OS support
Windows 2000 Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
4.35
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.1MB
Filename
Version
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-10-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

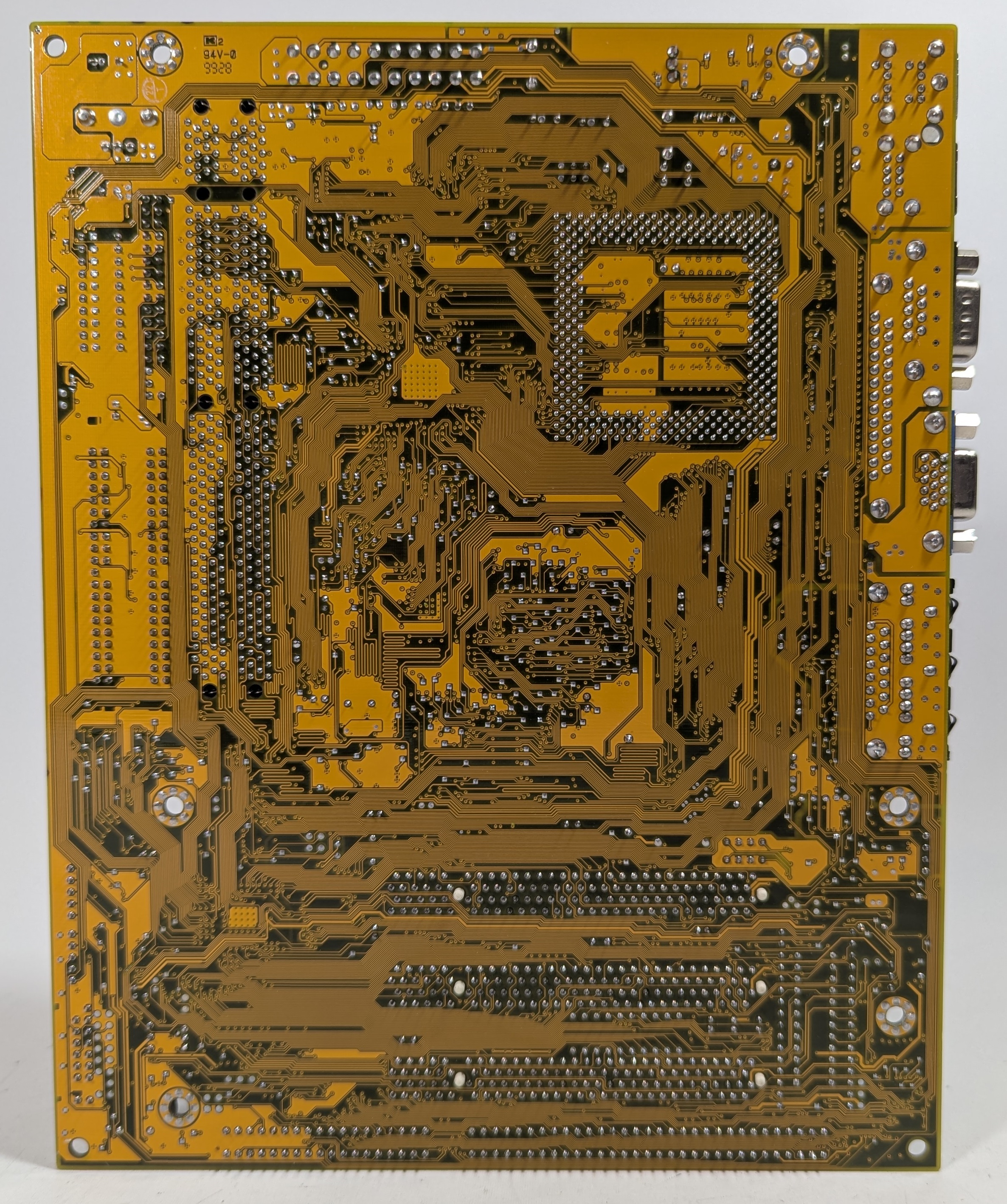

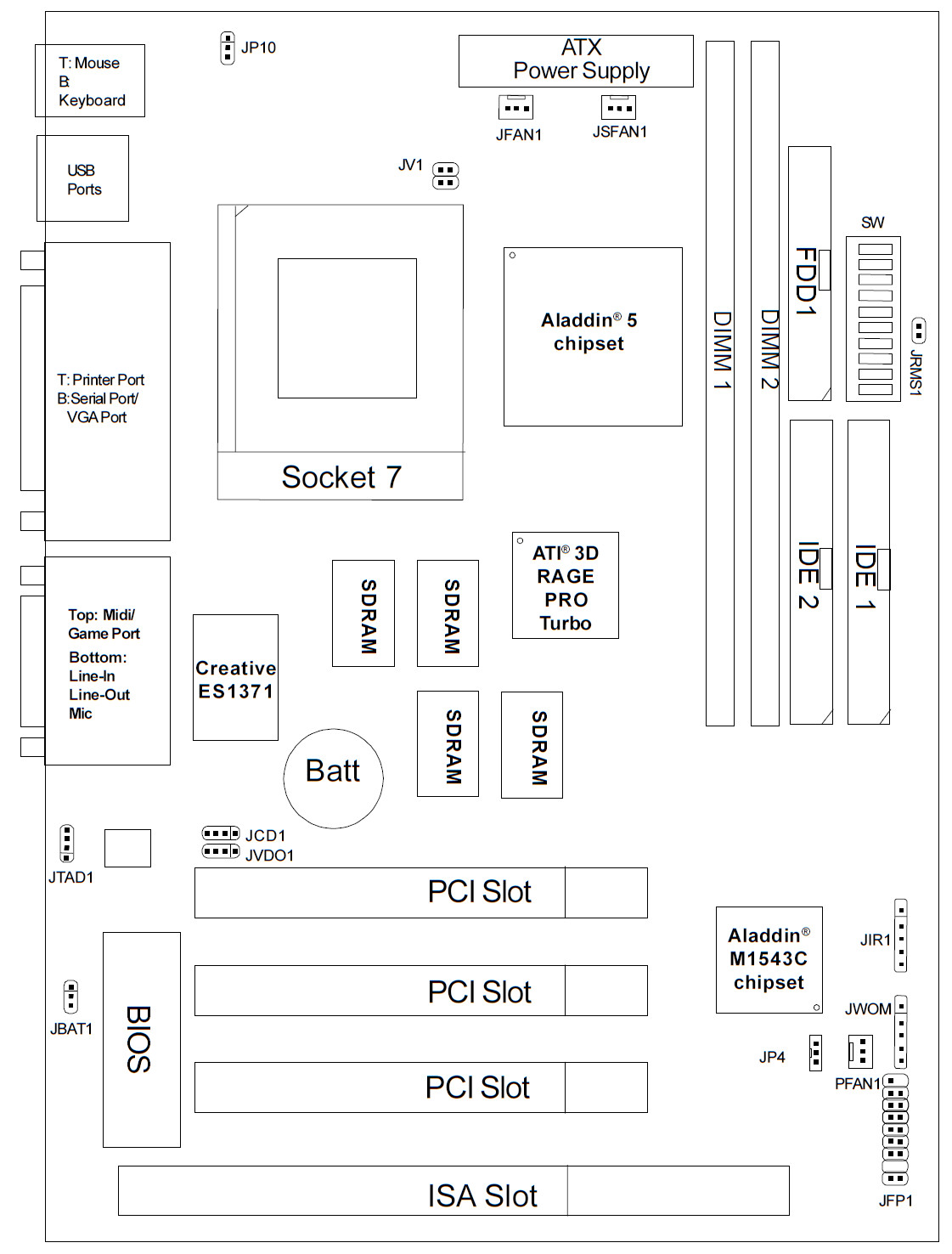

image1 Image 1 of 3 (MSI)

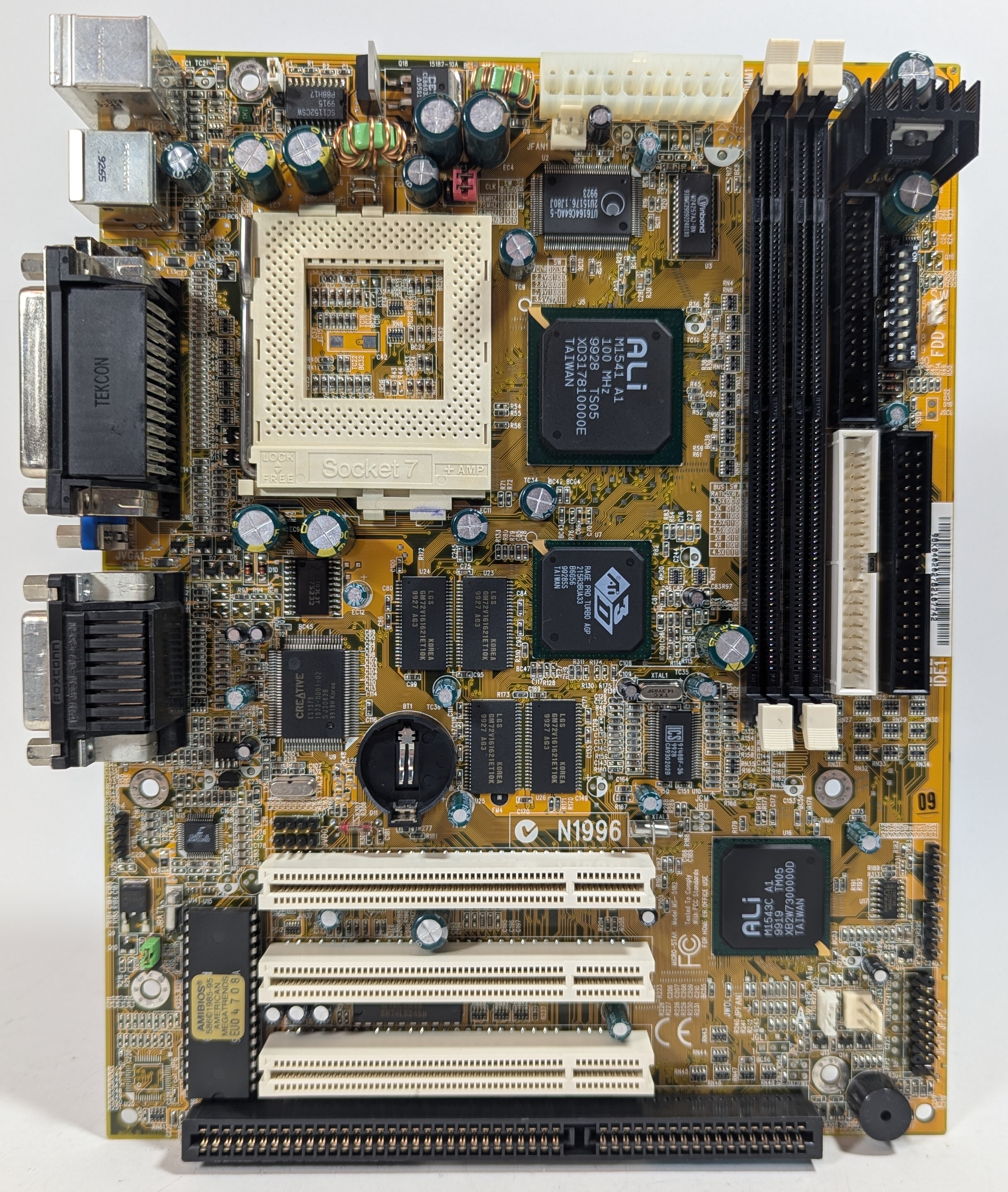

image2 Image 2 of 3 (Andrew Spode)

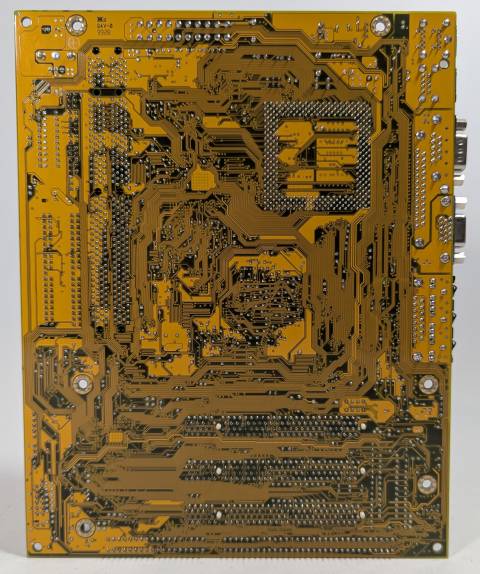

image3 Image 3 of 3 (Andrew Spode)
