MSI K9N6PGM2-V
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 205mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • MSI MS-7309 VER:1.3
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

notes Notes
  • Limited 65W AM3 CPU support with updated BIOS.
Last updated 2024-08-19T14:25:46Z
Board info score is 9.6/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-122309-ATHLON64-1ADKR017
Note
A7309NMS V9.9 122309
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-102609-ATHLON64-1ADKR017
Note
A7309NMS V9.8 102609
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-091809-ATHLON64-1ADKR017
Note
A7309NMS V9.7 091809
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-040909-ATHLON64-1ADKR017
Note
A7309NMS V9.5 040909
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-021709-ATHLON64-1ADKR017
Note
A7309NMS V9.4 021709
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-010909-ATHLON64-1ADKR017
Note
A7309NMS V9.3 010909
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-090508-ATHLON64-1ADKR017
Note
A7309NMS V9.2 090508
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-051408-ATHLON64-1ADKR017
Note
A7309NMS V9.0 051408
Core version
080015
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

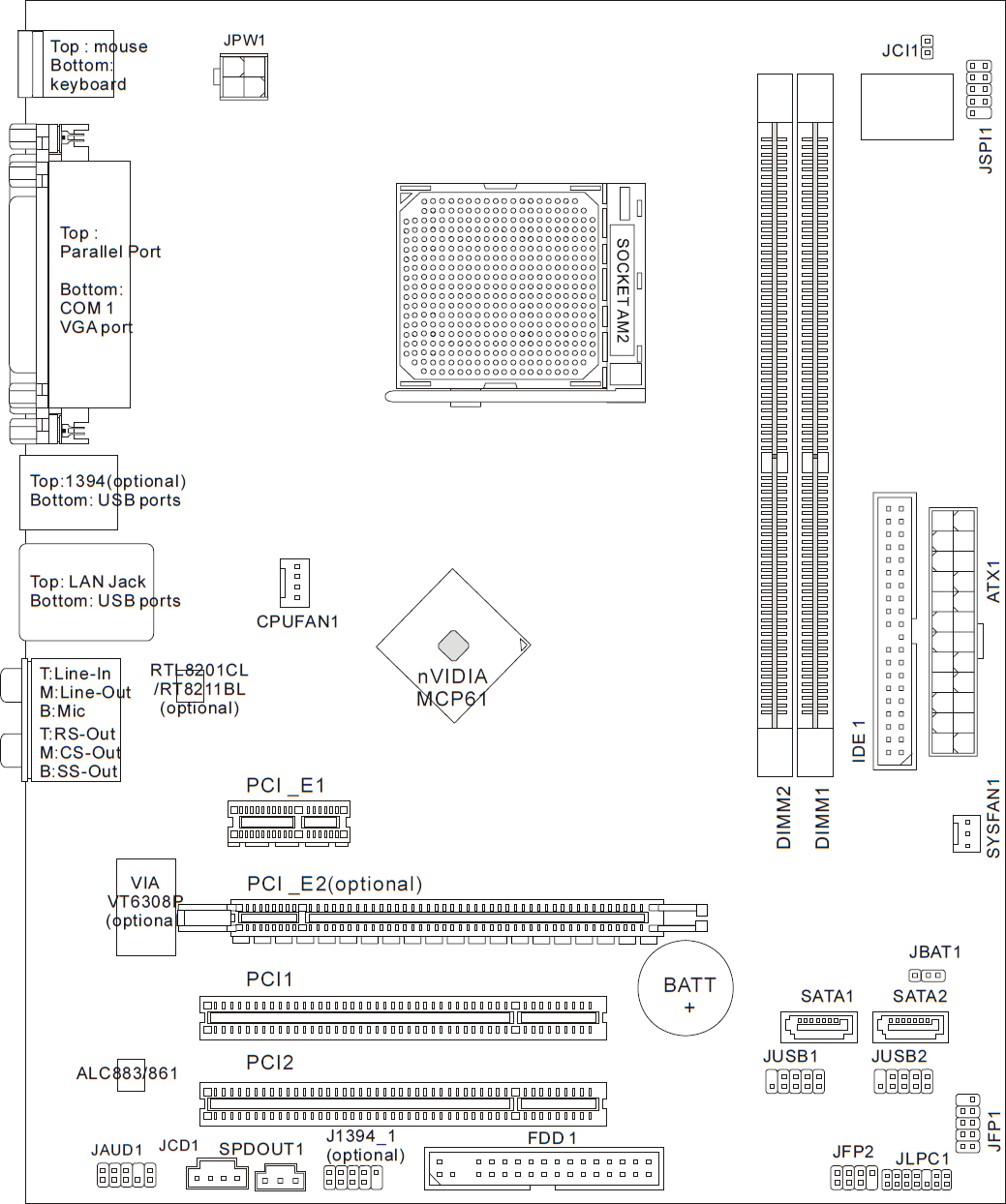

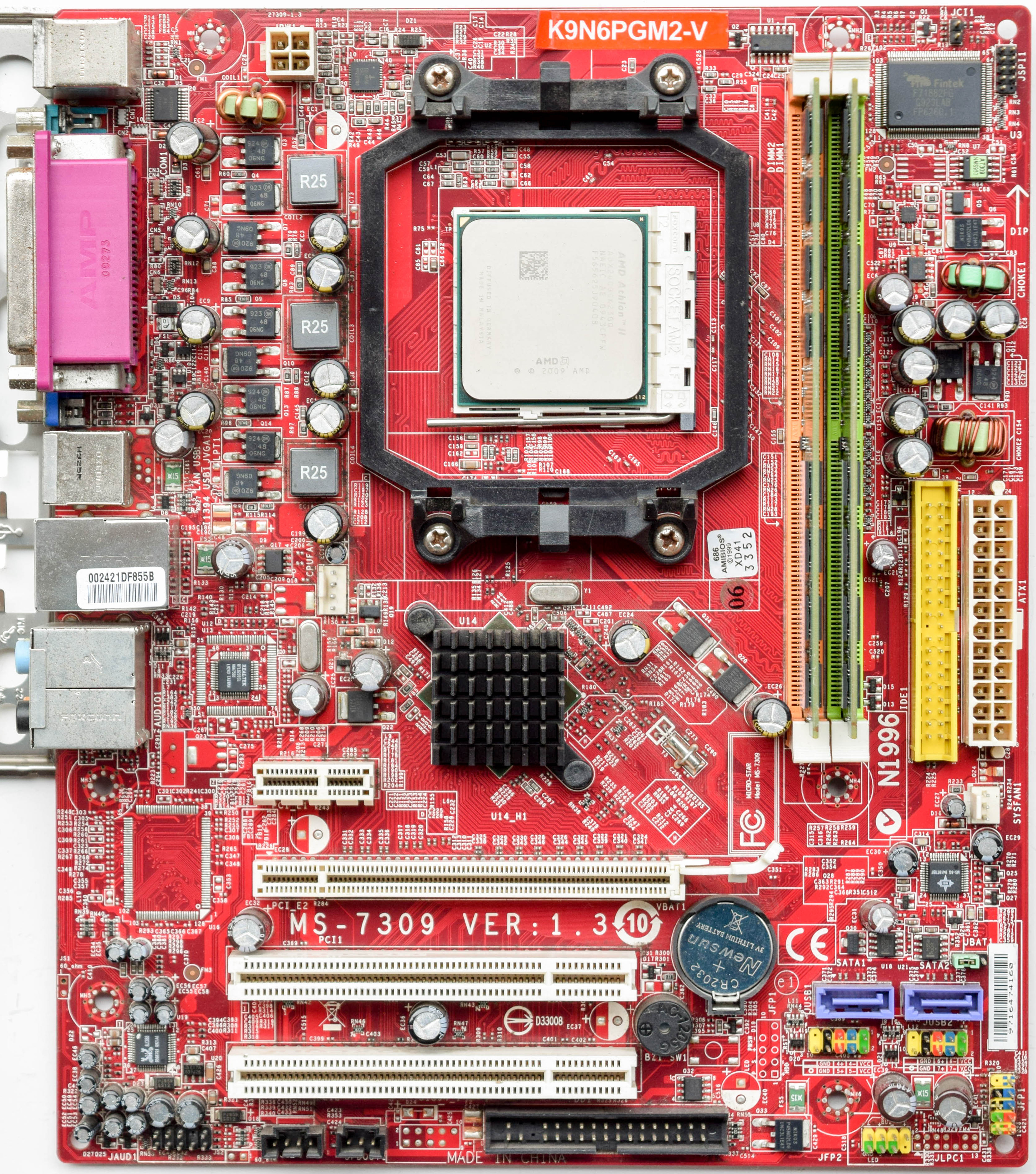

image1 Image 1 of 5 (MSI)

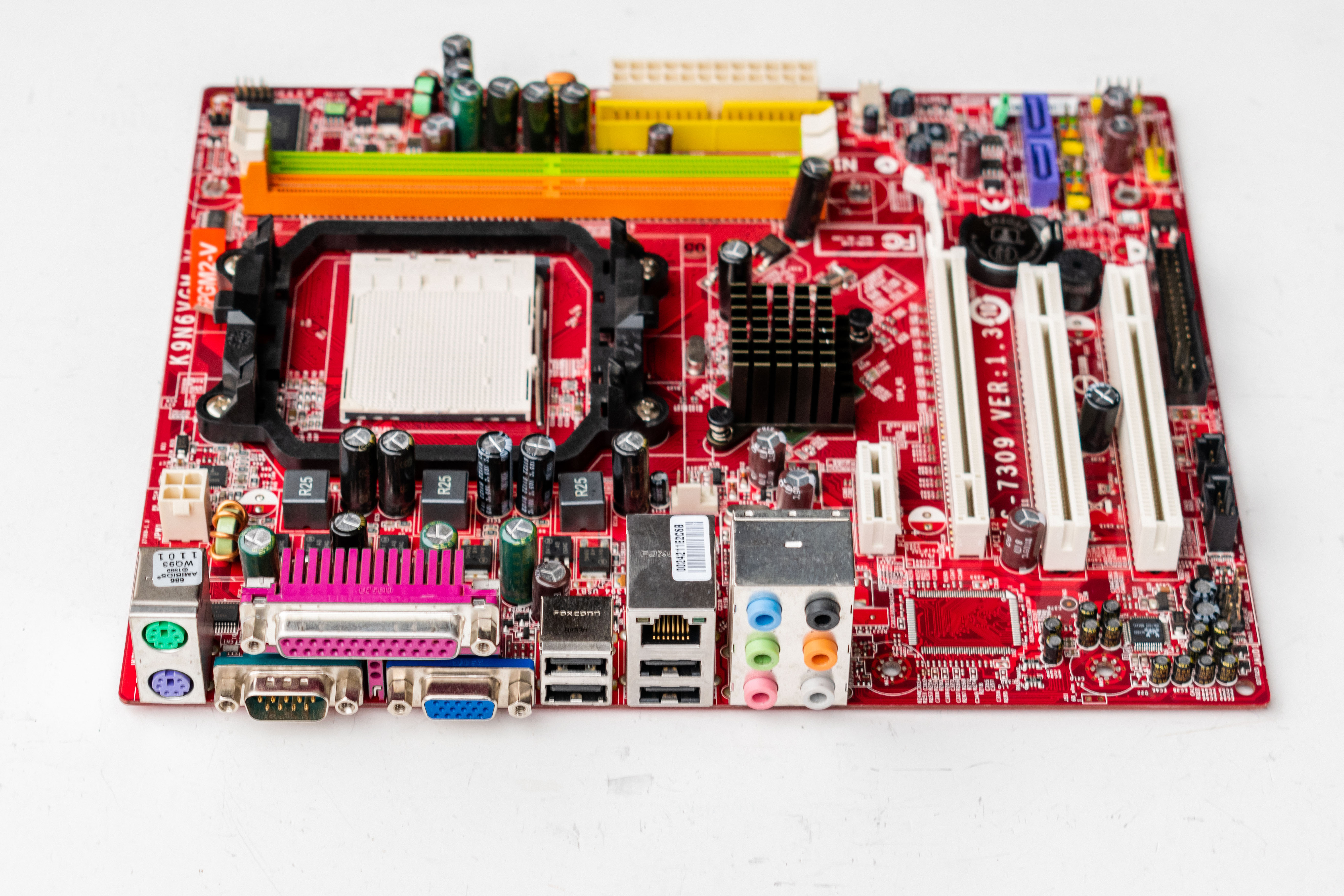

image2 Image 2 of 5 (Motherboard Continuum)

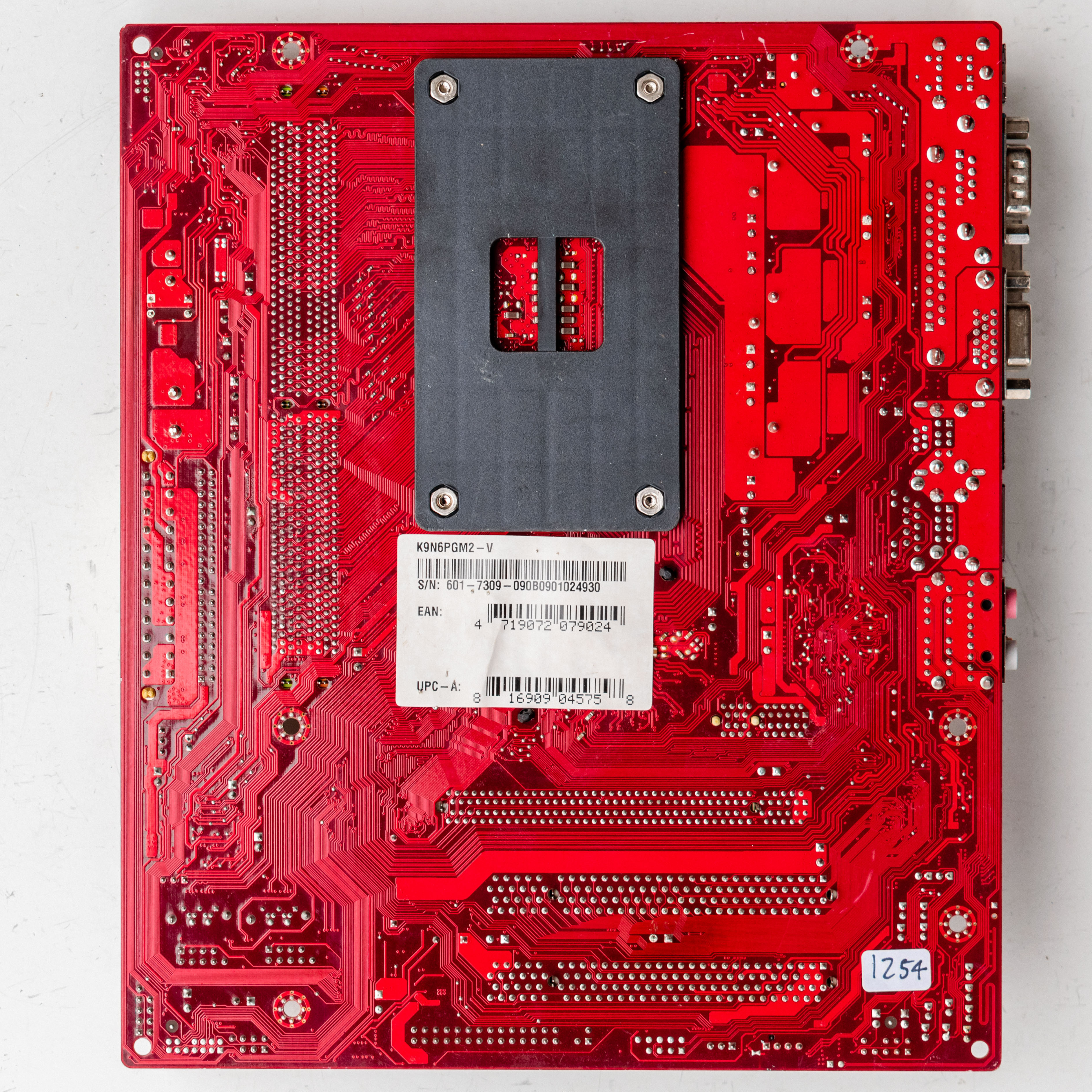

image3 Image 3 of 5 (Motherboard Continuum)
image4 Image 4 of 5 (Motherboard Continuum)

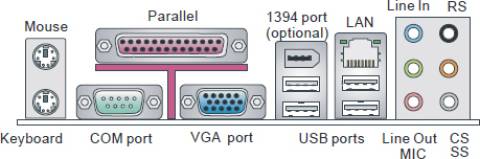

image5 Image 5 of 5 (MSI)
