MSI K8T Neo2-FIR
Logs
chipChipset
cpuSocket
Socket 939 (mPGA939)
speedFSB speeds
800MHz1000MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM types
DDR UDIMMDDR UDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
FireWire 400 Mini
1x
Floppy interface
3x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
1x
Serial
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
notes Notes

Two variants of this board exist for the same PCB

  • FIR variant features Promise SATA controller and FireWire Controller
  • F variant without Promise controller or FireWire controller.

As such the F variant has 2 less SATA ports and 1 less IDE port than the FIR variant and doesn't feature the Firewire IO port.

Last updated 2025-04-08T12:32:46Z
Board info score is 9.8/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-009999-00101111-101206-ATHLON64-1XXXX005
Note
Core version
080011
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
1.60.615
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
File
Logs

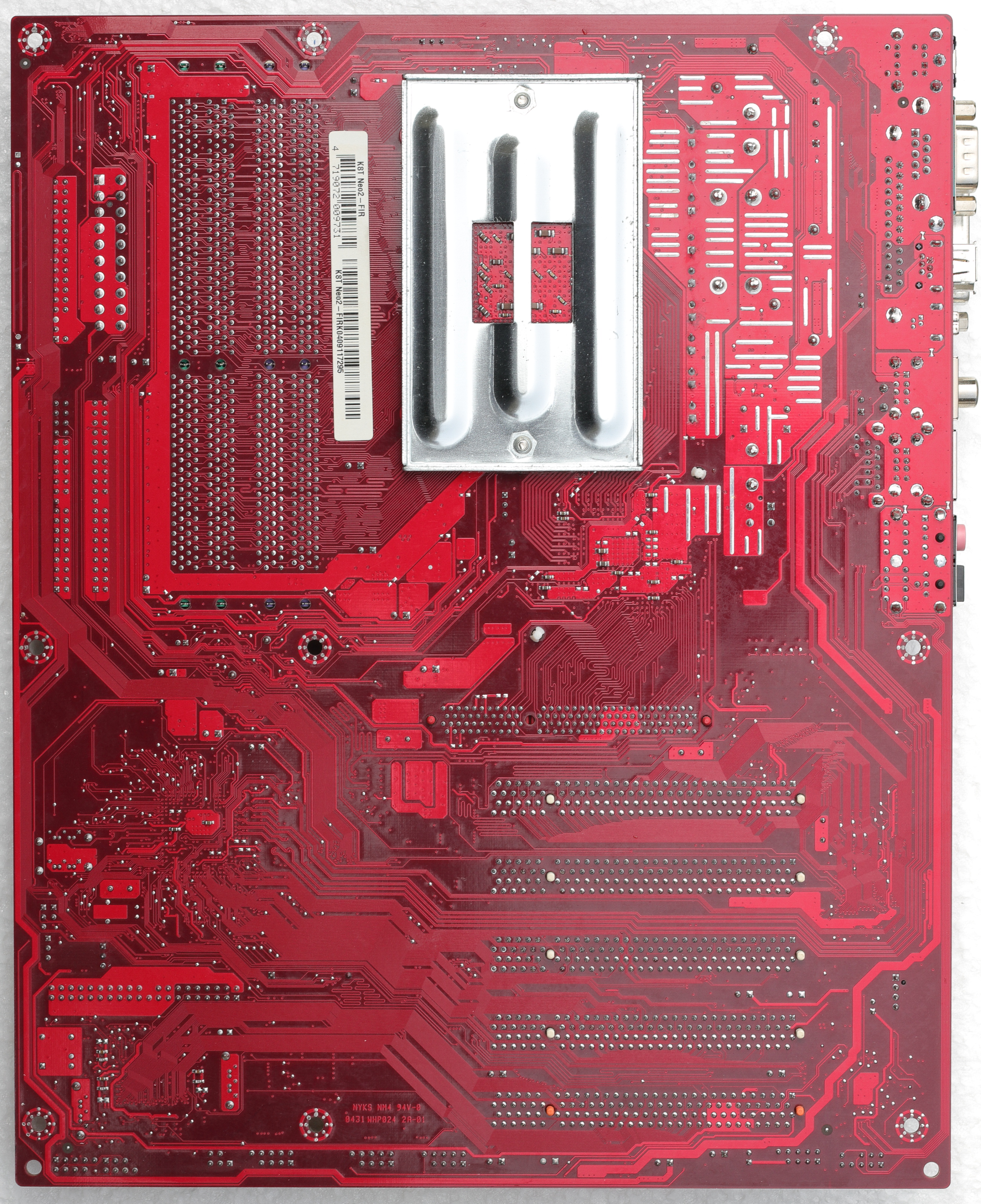

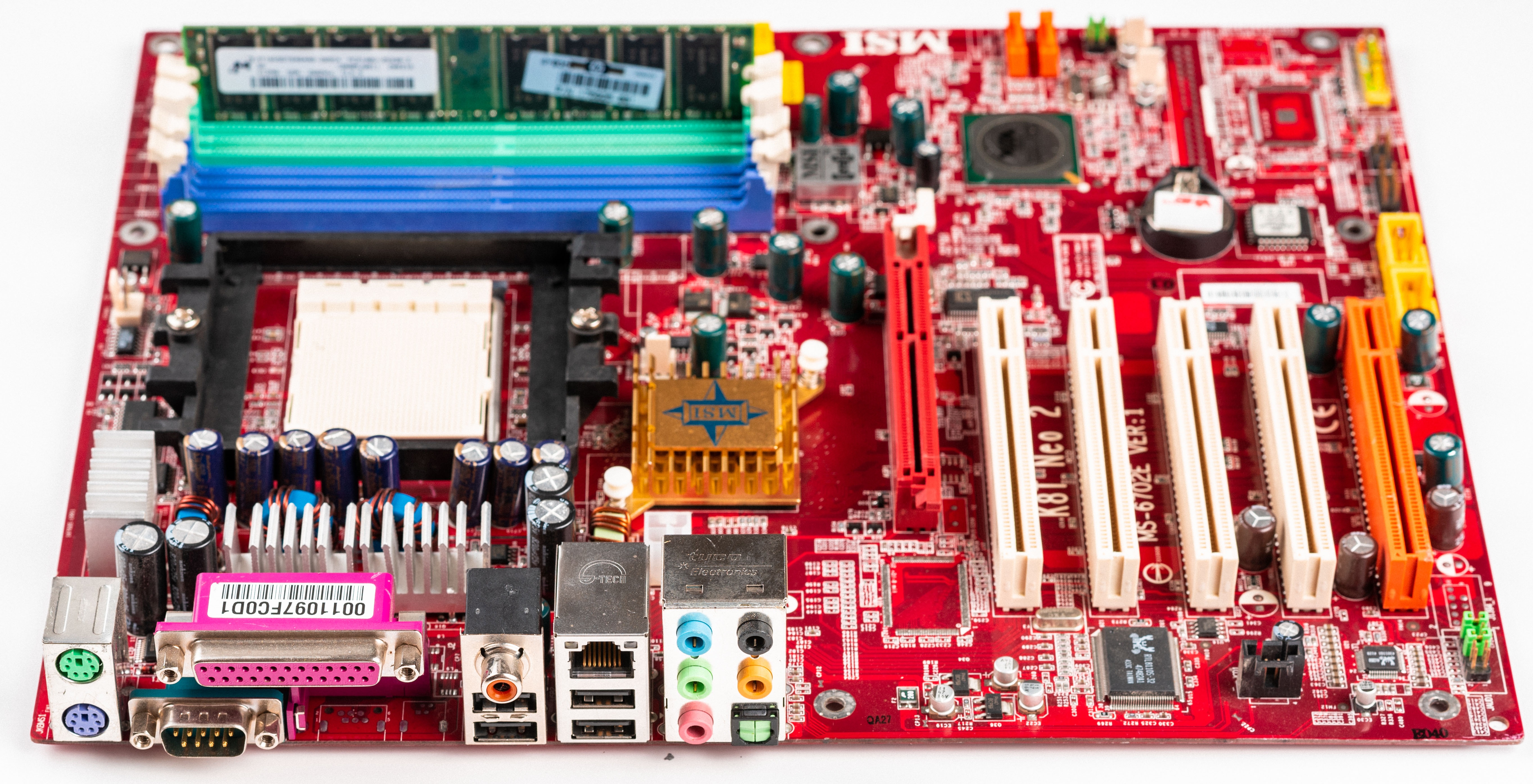

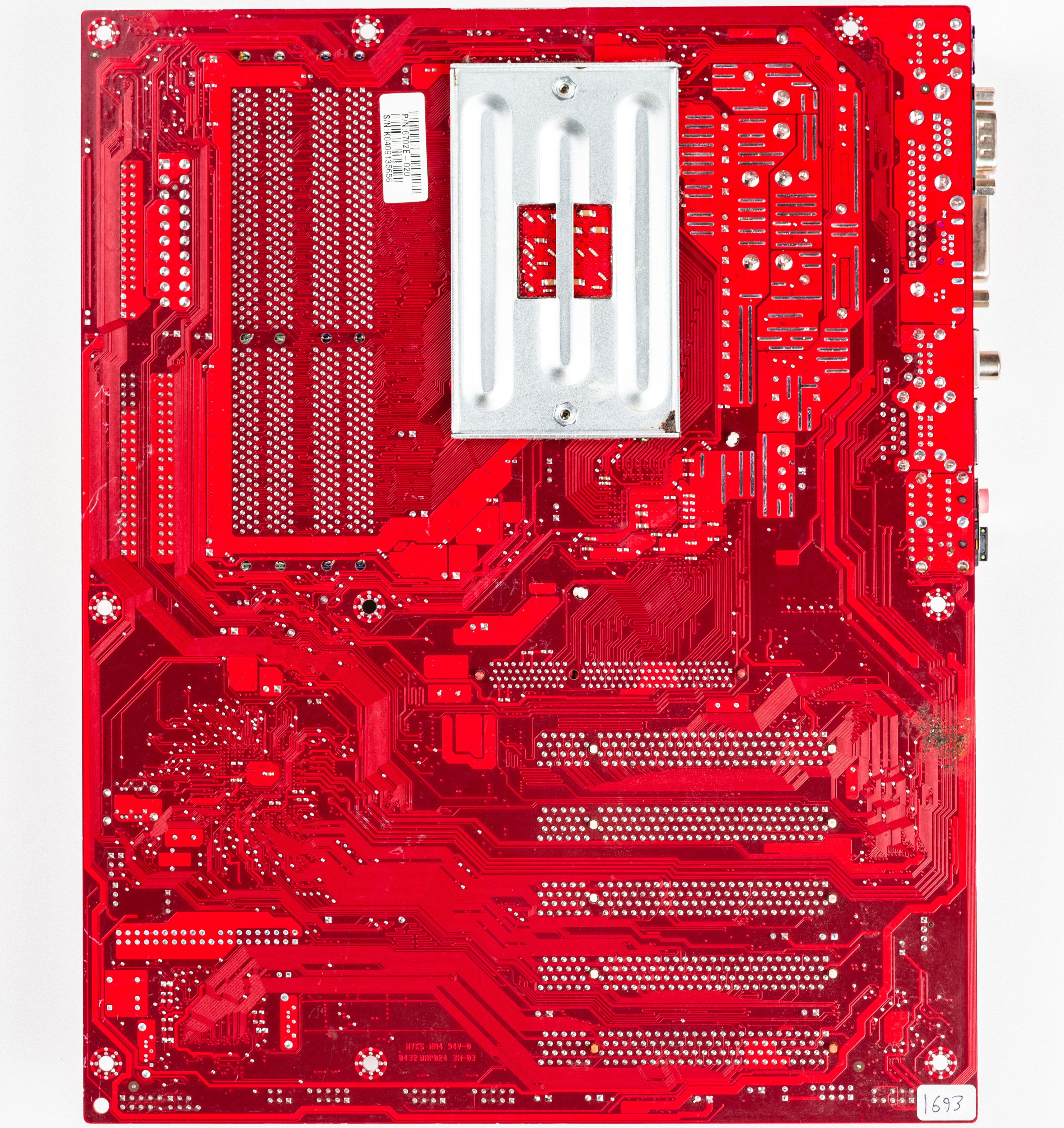

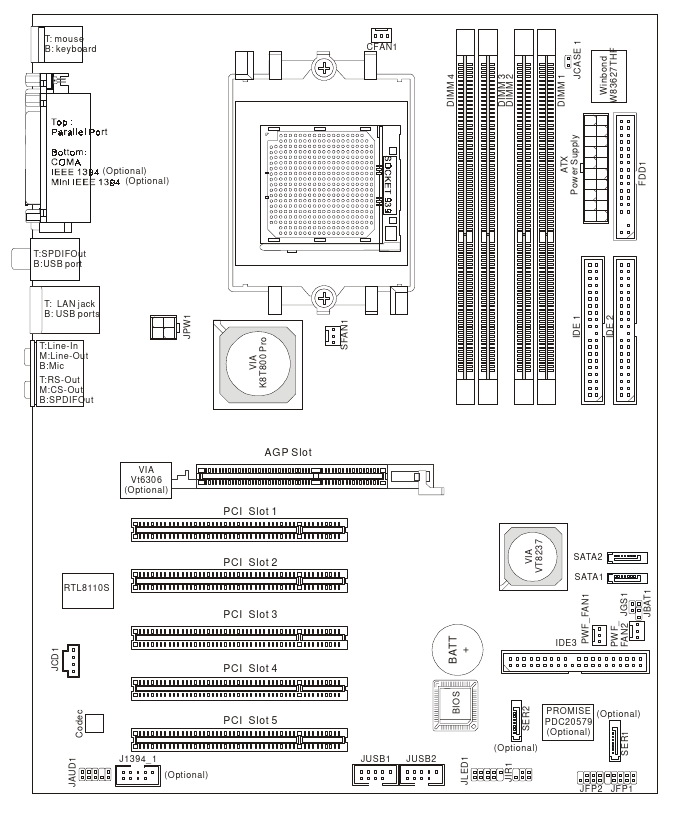

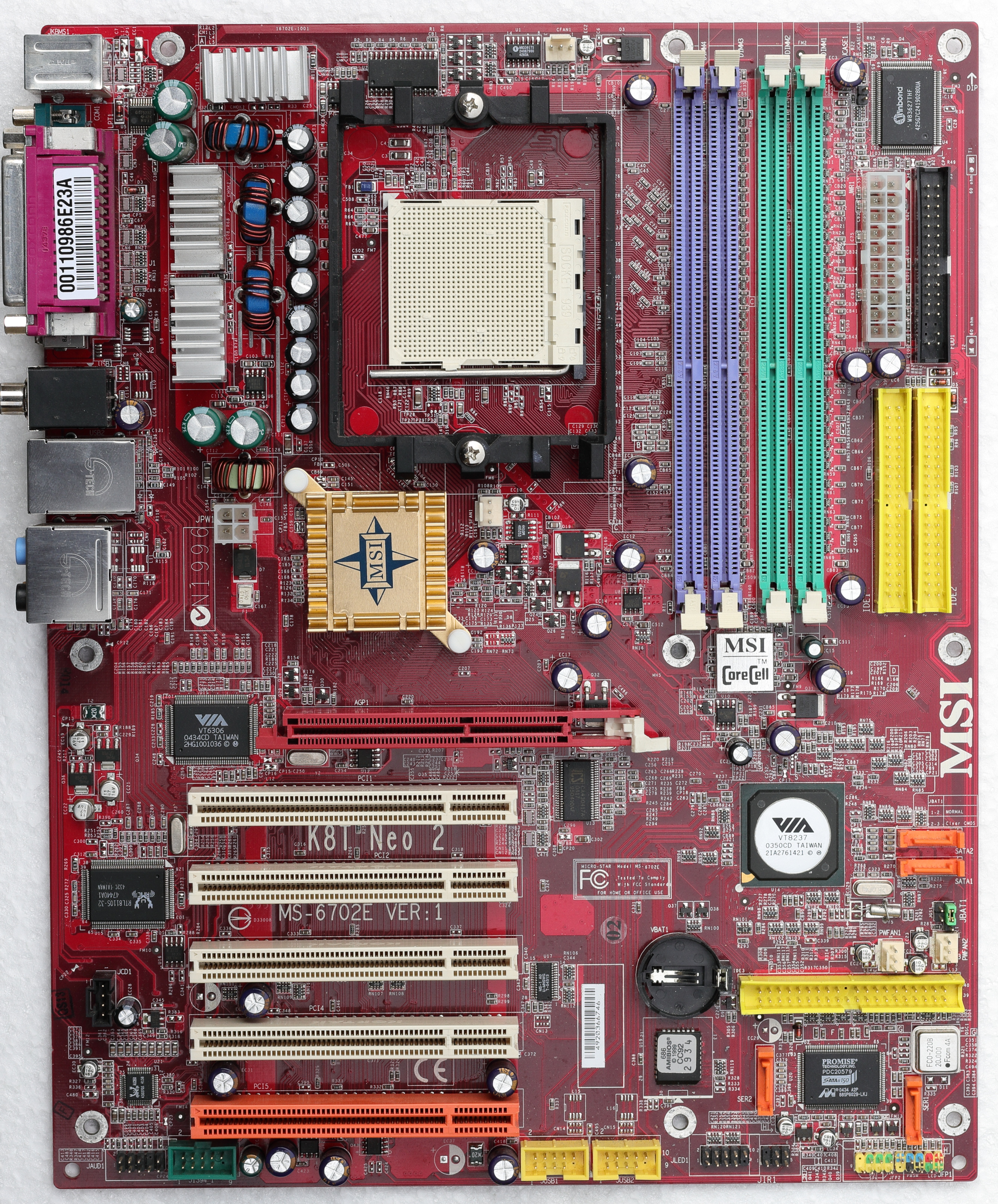

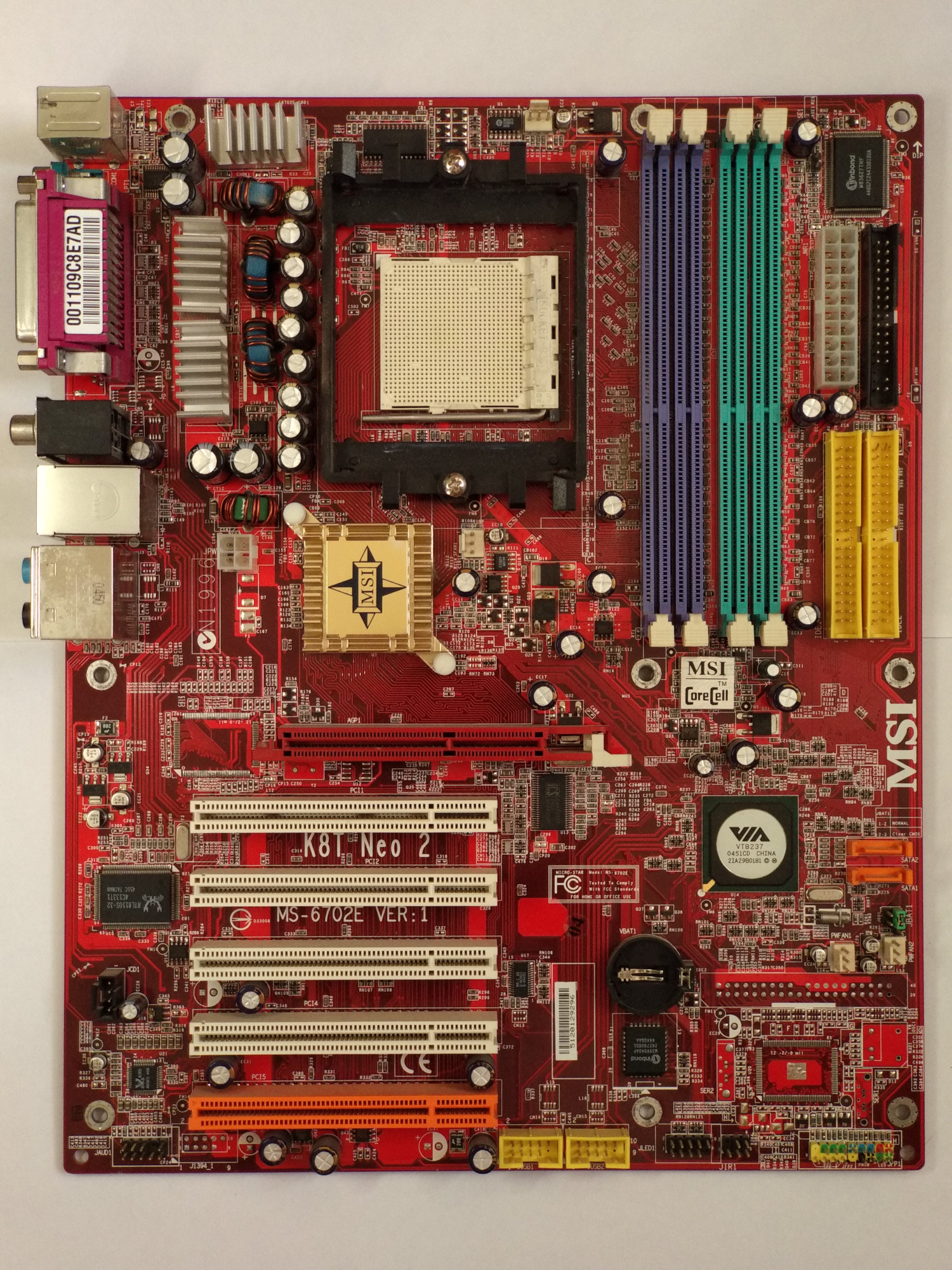

image1 Image 1 of 7 (MSI)
image2 Image 2 of 7 (Motherboard Continuum)

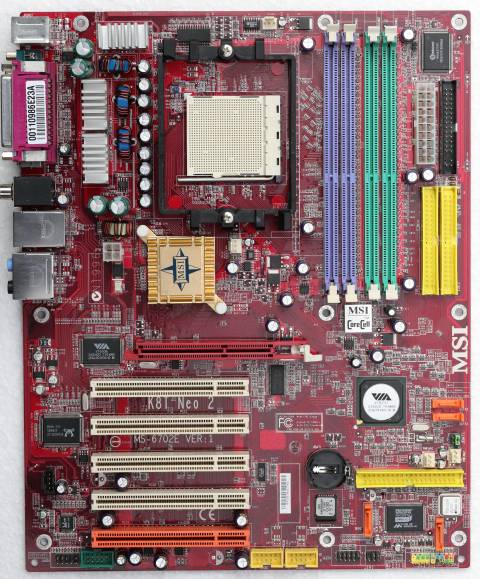

image3 Image 3 of 7 (Rigo "0xCats" Reddig)
image4 Image 4 of 7 (Necro Kitchen)
image5 Image 5 of 7 (Motherboard Continuum)
image6 Image 6 of 7 (Rigo "0xCats" Reddig)
image7 Image 7 of 7 (Motherboard Continuum)
