MSI K7N2G-L
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 230mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB(DDR-400)
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • MSI MS-6570 VER: 1
  • MSI K7N2G (no RAID, no FireWire)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
1x
ACR
Last updated 2024-07-01T07:59:27Z
Board info score is 9.8/10
chip Chips
-> Chipset part
Nvidia NV1F Nvidia MCP2
-> Audio
Realtek ALC650 (AC97)
-> Super I/O
Winbond W83627HF
cpufam CPU family support
bios 12 BIOS files available

vendor Award - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/02/2004-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/29/2004-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/07/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/16/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/12/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/01/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/12/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/16/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/14/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/16/2003-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/20/2002-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/18/2002-nVidia-nForce-6A61BM49C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 37 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
56.64
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
61.4MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86-64
Size
48.2MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
28.7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
12.2MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
27.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.1MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
19.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
20.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
14.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
30.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
16.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
25.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
20MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
13MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
19.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.8MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
19MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
15.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2002-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs

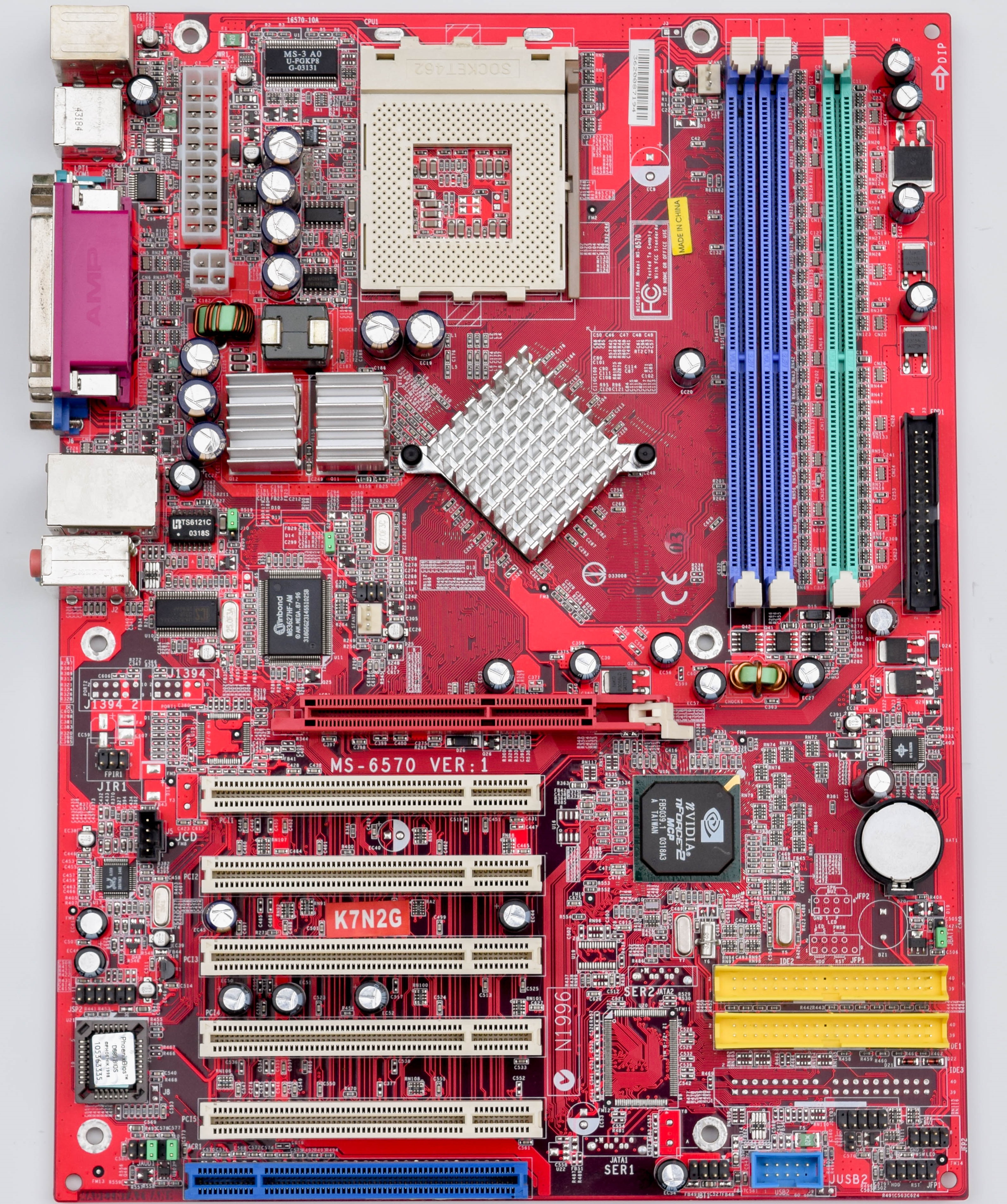

image1 Image 1 of 4 (MSI)

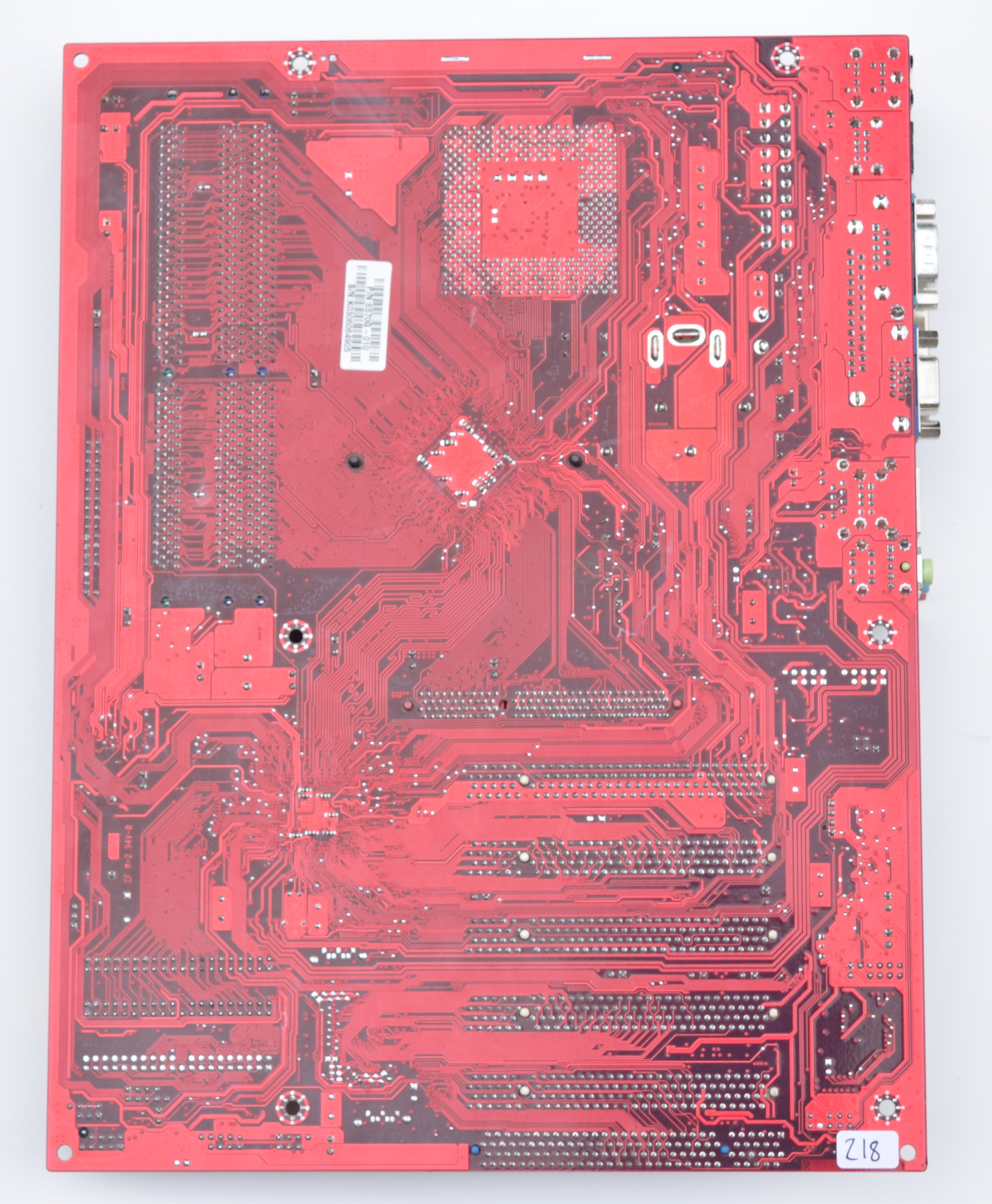

image2 Image 2 of 4 (Motherboard Continuum)

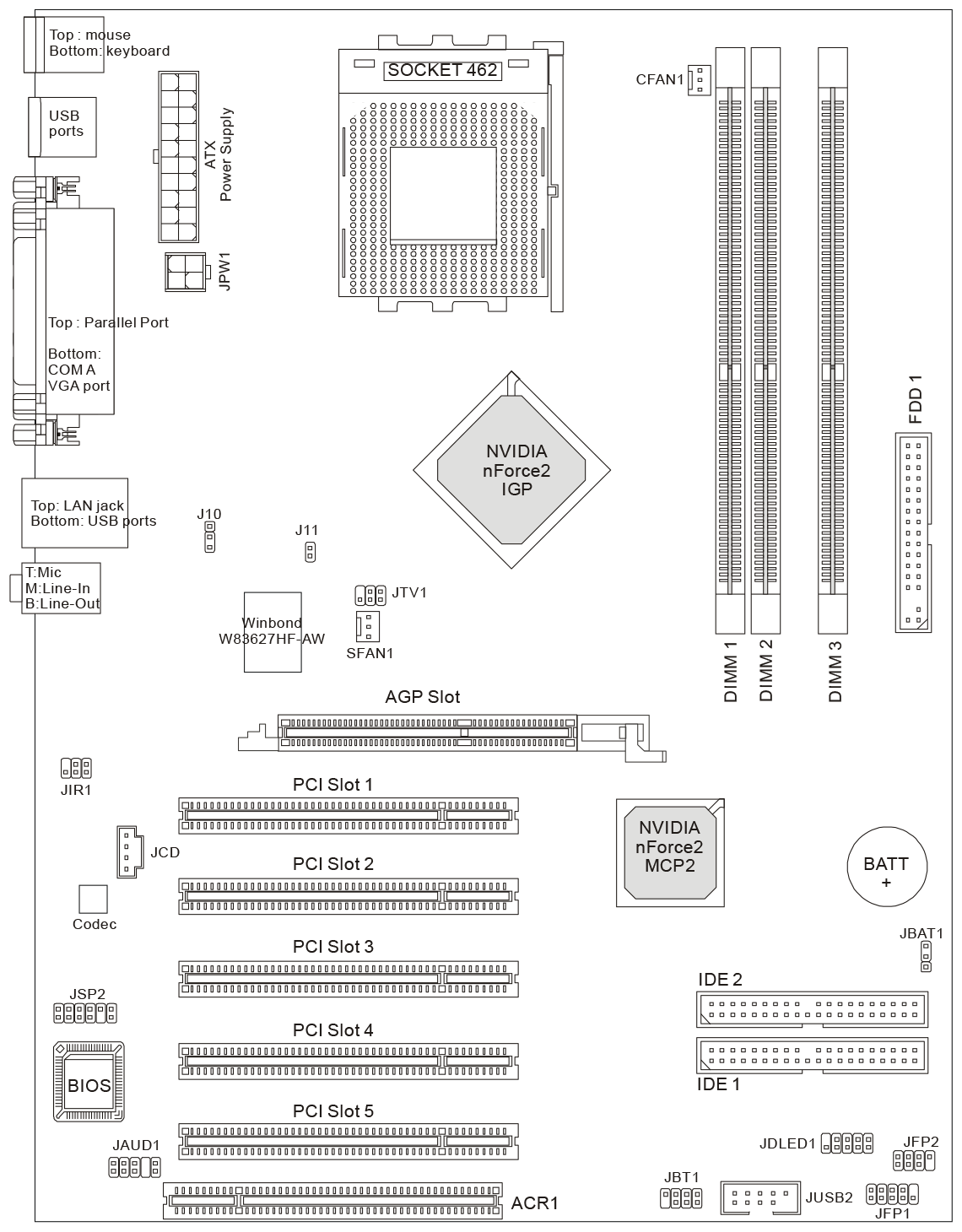

image3 Image 3 of 4 (Motherboard Continuum)

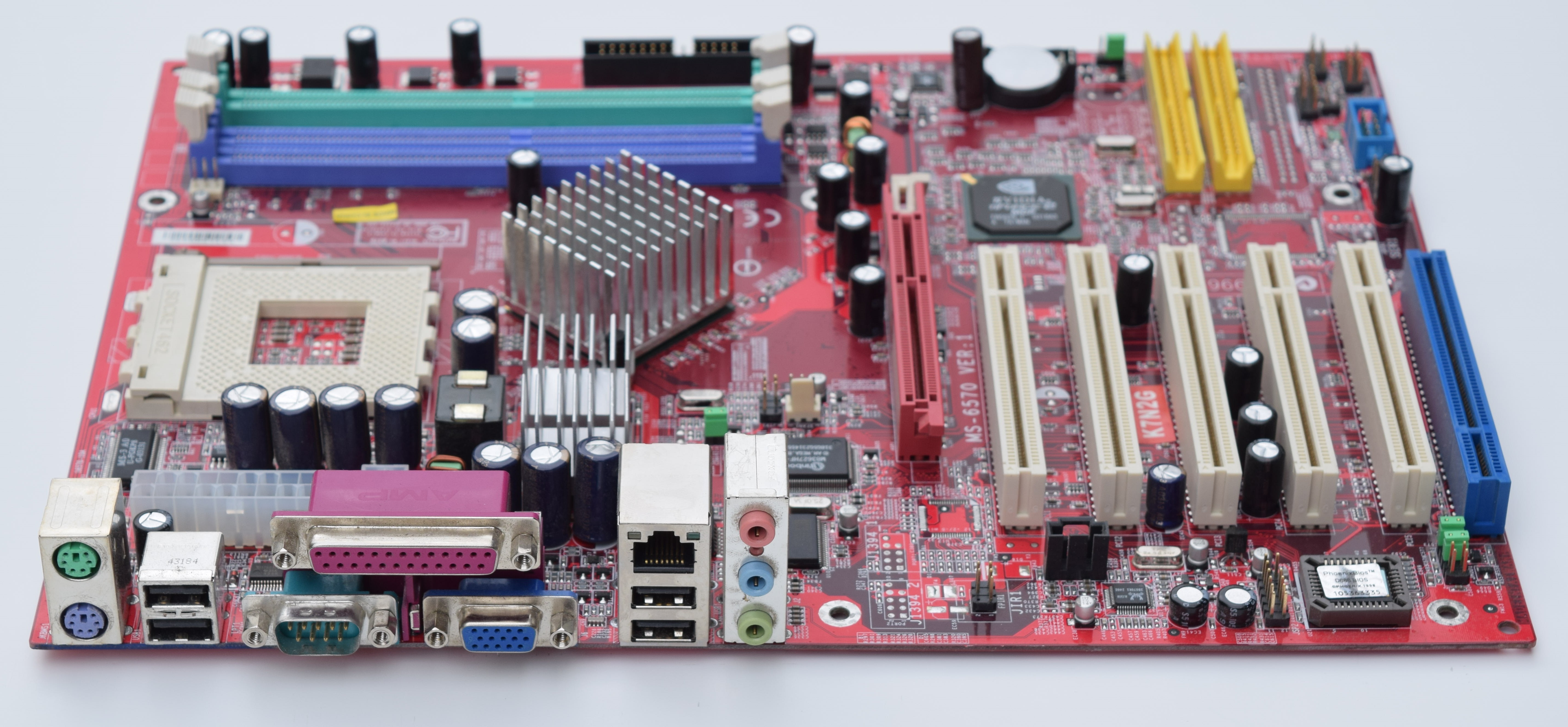

image4 Image 4 of 4 (Motherboard Continuum)
