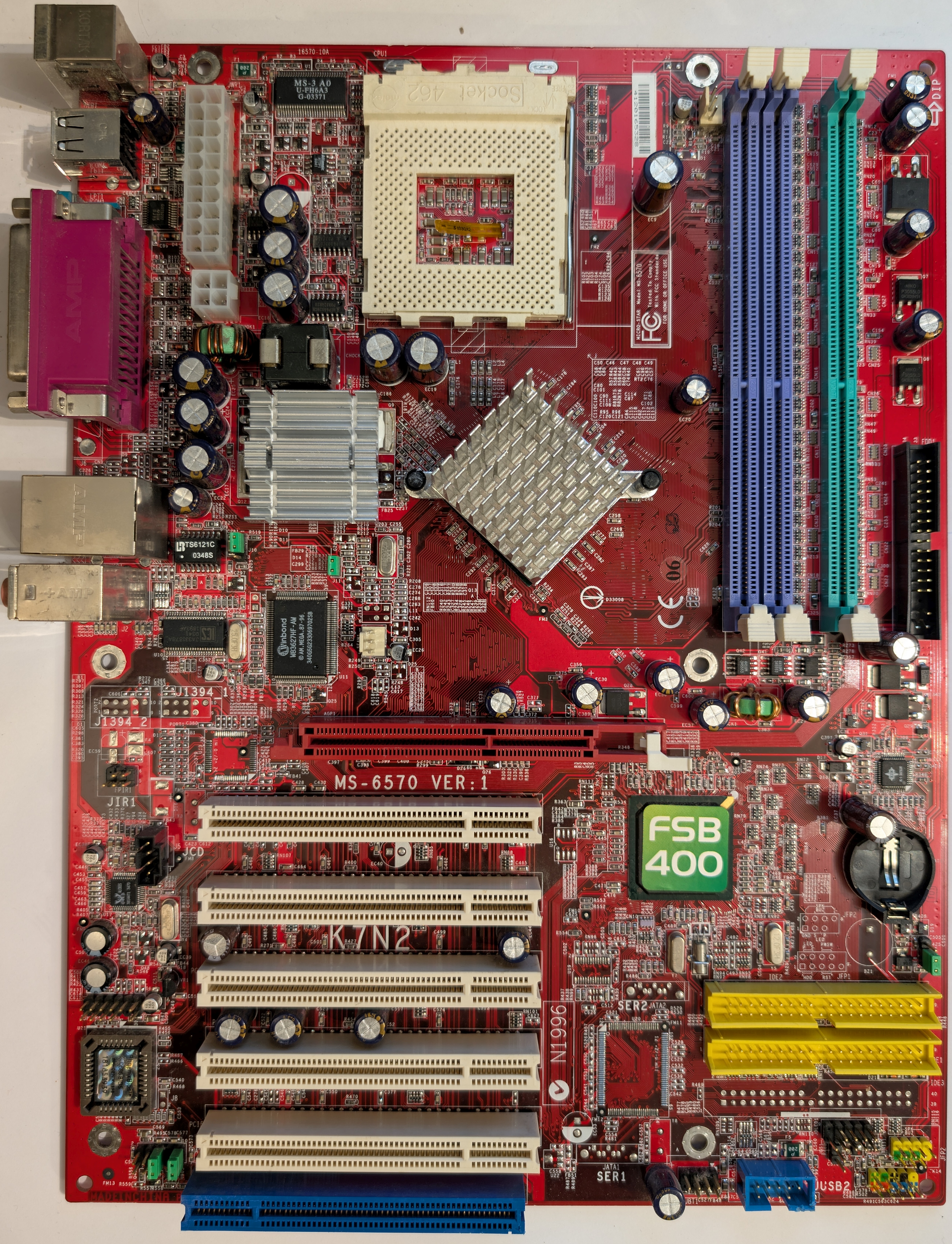

MSI K7N2 Delta-L

Description

Chips

BIOS 9

Drivers 37

Documentation 1

Chipset

Nvidia nForce2 Ultra 400 (MCP2)

Socket

Socket A (PGA462)

FSB speeds

200MHz266MHz333MHz400MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

305mm x 230mm

Cache

None/Integrated in the CPU

Max RAM size

3GB(DDR-400)

RAM type

DDR UDIMM

PSU connector

ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)

Also known as

MSI MS-6570 VER: 1

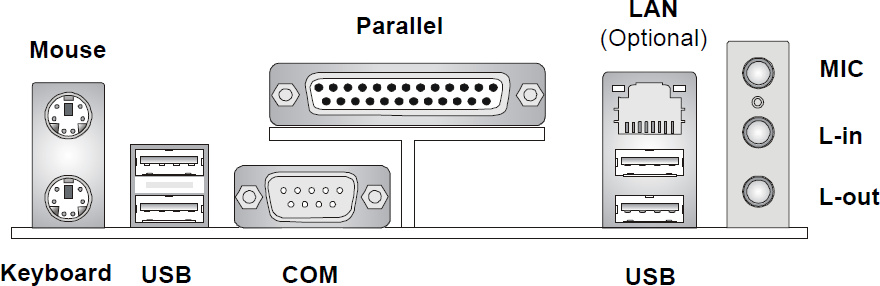

I/O ports

1x

3.5mm Audio Combo

1x

Floppy interface

2x

IDE interface

1x

IrDA

1x

PS/2 keyboard

1x

PS/2 mouse

1x

Parallel

1x

RJ-45 LAN

2x

Serial

6x

USB 2.0

Expansion slots

1x

1.5V AGP

5x

32-bit PCI

1x

ACR

Notes

the cut down version of the K7N2 Delta, with no RAID and no FireWire
original MSI board page

Last updated 2025-08-09T13:52:46Z

Board info score is 10/10

Chips

-> Chipset part

Nvidia NV1F Nvidia MCP2

-> Audio

Realtek ALC650 (AC97)

-> Network

ICS ICS1893 (3.3V 10/100M Integrated PHY)

-> Power Management

MSI MS-5 (CoreCell) MSI MS-3

-> Sensing / Monitoring

Qualcomm Atheros Attansic ATTP1

-> Signal transmitter/receiver

(multiple brand) 75185 / 75232 (RS-232 Driver/Receiver)

-> Super I/O

Winbond W83627HF

CPU family support

9 BIOS files available

Award - 9 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

01/27/2005-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

08/02/2004-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

03/29/2004-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

11/07/2003-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

08/12/2003-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

07/30/2003-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

06/02/2003-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

04/18/2003-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

POST string

03/18/2003-nVidia-nForce-6A61BM4CC-00

Note

Core version

6.00PG

BIOS version

Logs

37 drivers available

Name

Version

OS support

Arch

Size

Filename

Name

NVIDIA ForceWare Display Driver (WHQL)

Version

56.64

OS support

Windows 2000

Windows XP/2k3

Arch

x86

Size

10MB

Filename

56-64-winxp2k-english-whql.exe

Name

Realtek AC97 audio driver

Version

A4.06

OS support

Windows 2000

Windows XP/2k3

Arch

x86

Size

17.9MB

Filename

1 board document available

Release date

File

Logs

Release date

File

Logs

Image 1 of 10 (MSI)

Image 2 of 10 (Fo-91)

Image 3 of 10 (Eric Voirin (oerg866))

Image 4 of 10 (computerguy096)

Image 5 of 10 (Fo-91)

Image 6 of 10 (Eric Voirin (oerg866))

Image 7 of 10 (computerguy096)

Image 8 of 10 (computerguy096)

Image 9 of 10 (computerguy096)

Image 10 of 10 (MSI)
