MiTAC/Trigon PWA-PL5600D-I
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
RAM type
PSU connector
Also known as
- Compaq Presario 7100 series (Pentium) 7150, 7152, 7170, and 7180
I/O ports1x
3.5mm Line-In
1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slotsEmpty
Known issues

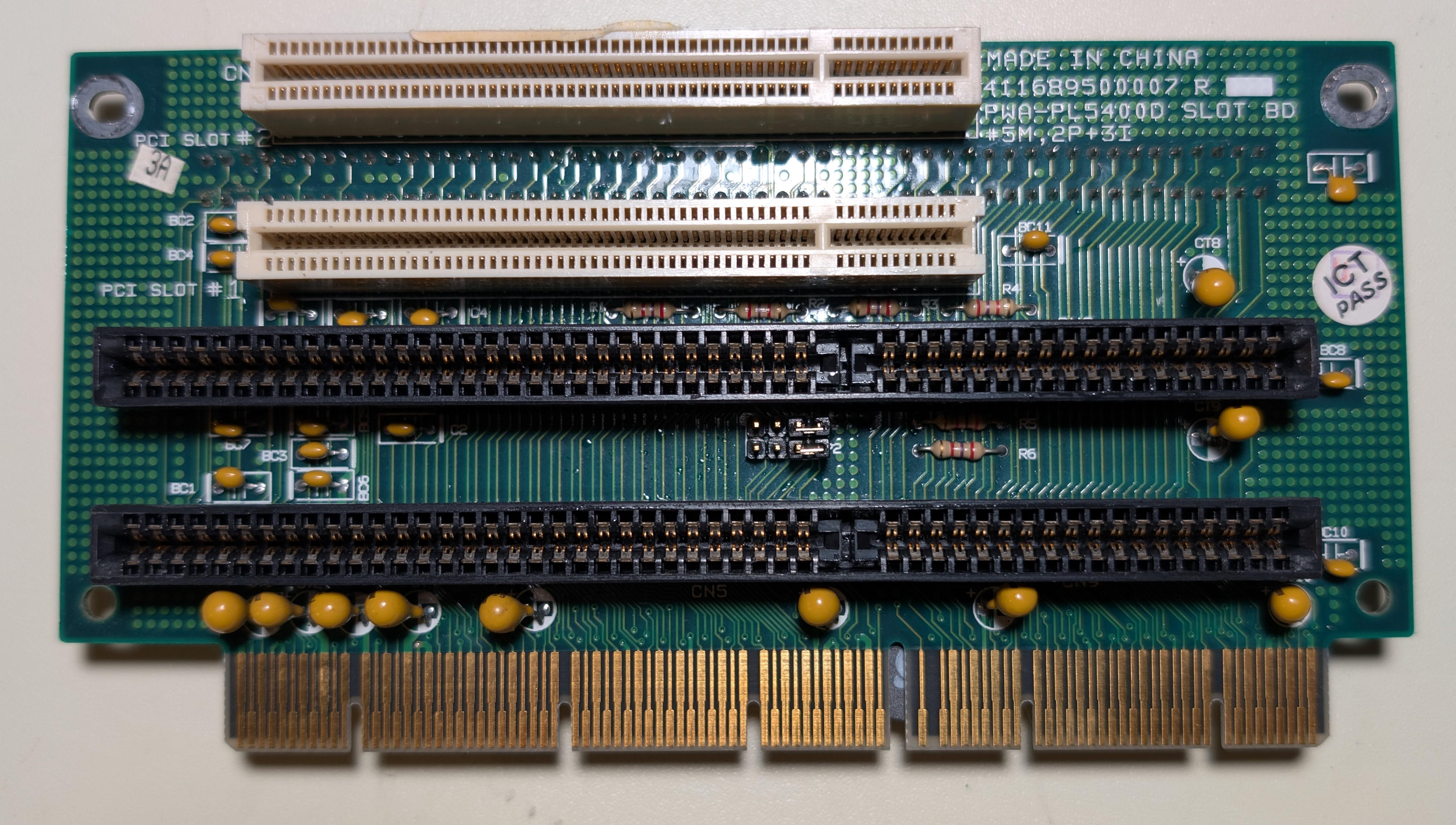

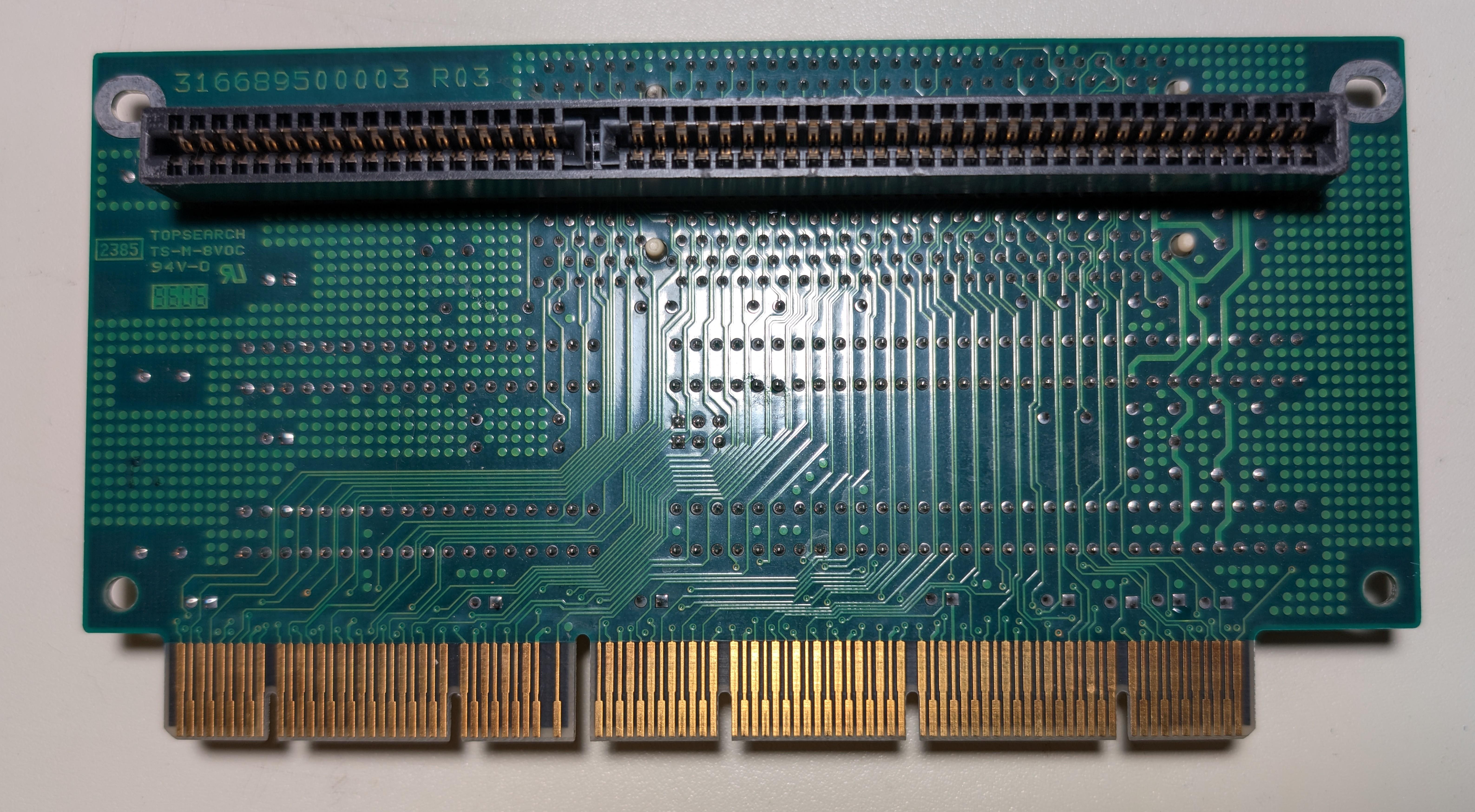

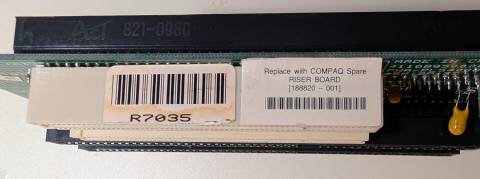

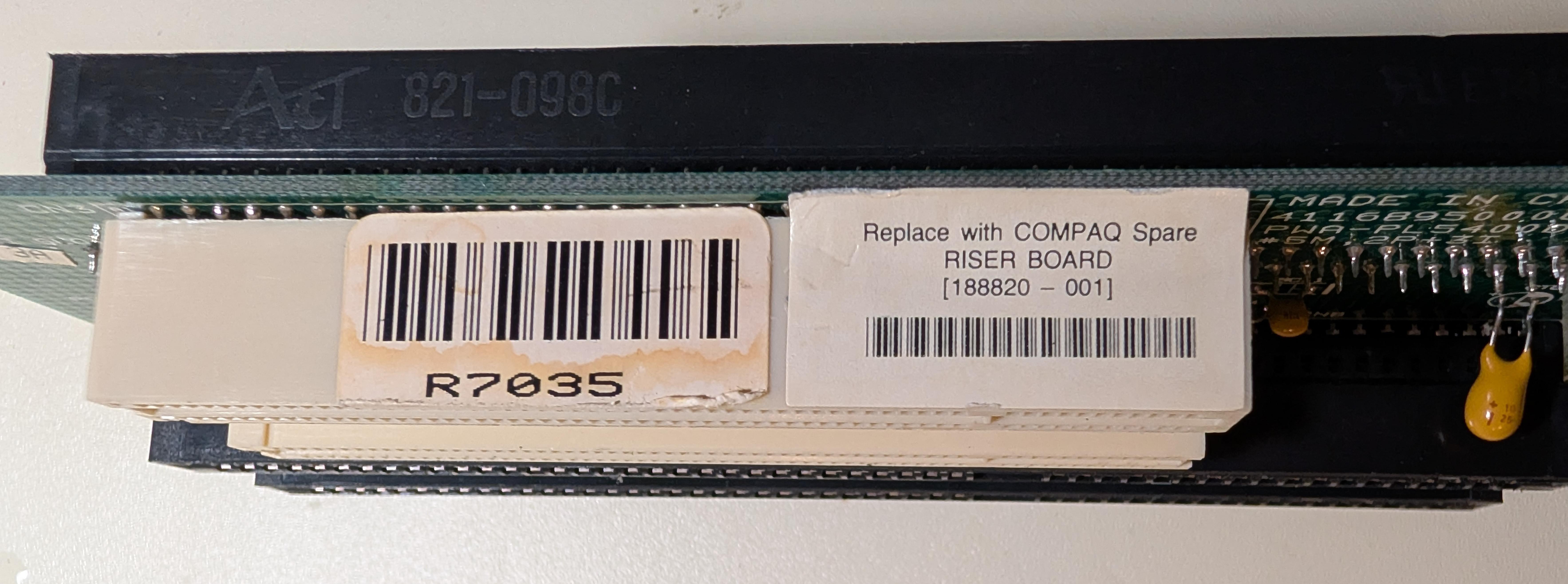

- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-12-04T16:43:33Z
Board info score is 8.7/10
Chips
-> Chipset part
-> Audio
-> Real-Time Clock
-> Super I/O
-> Video
CPU family support
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.05.02
OS support
Windows 9x
Arch
x86
Size
358.1KB
Filename
Name
Version
1.6
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs

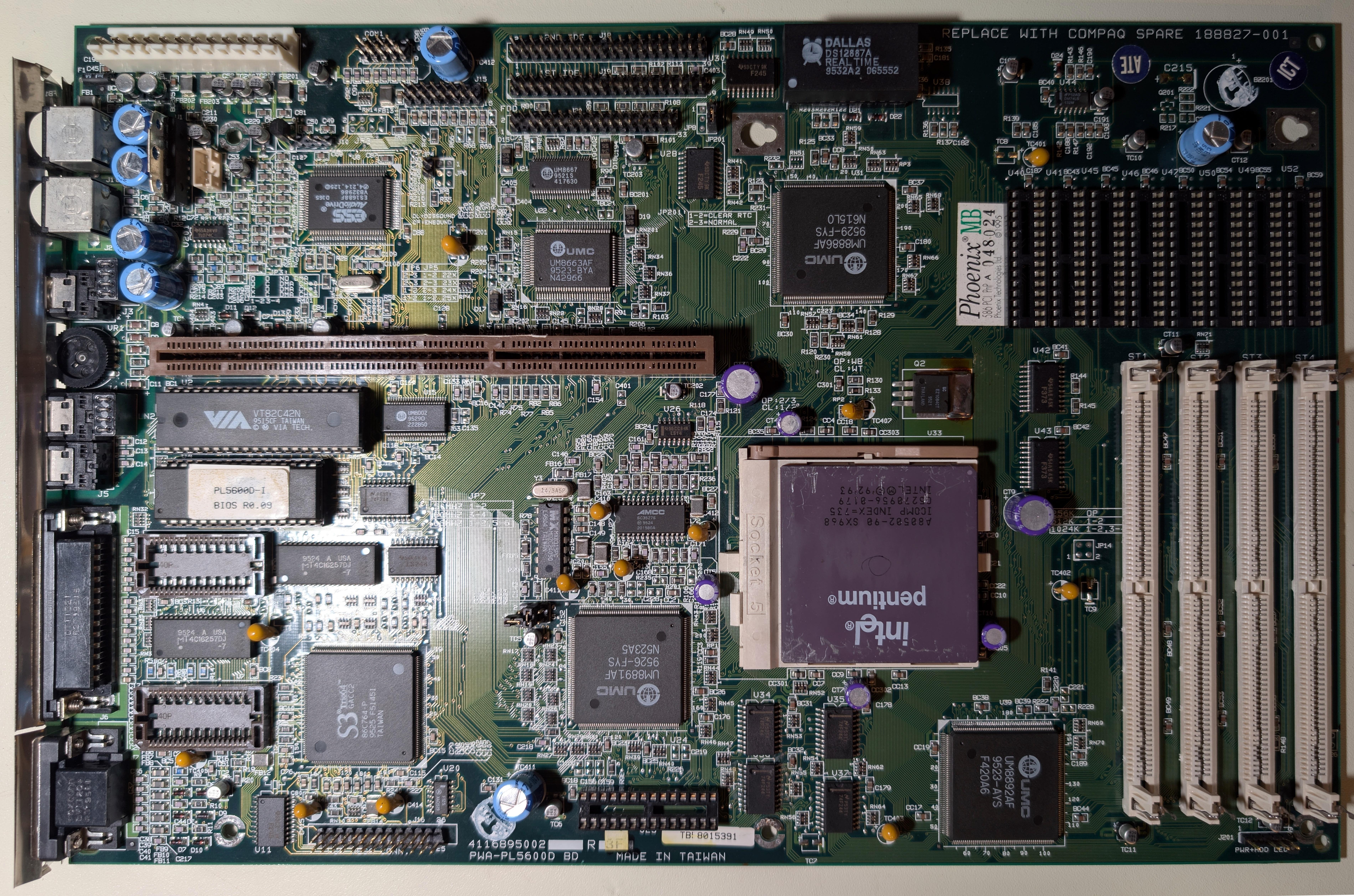

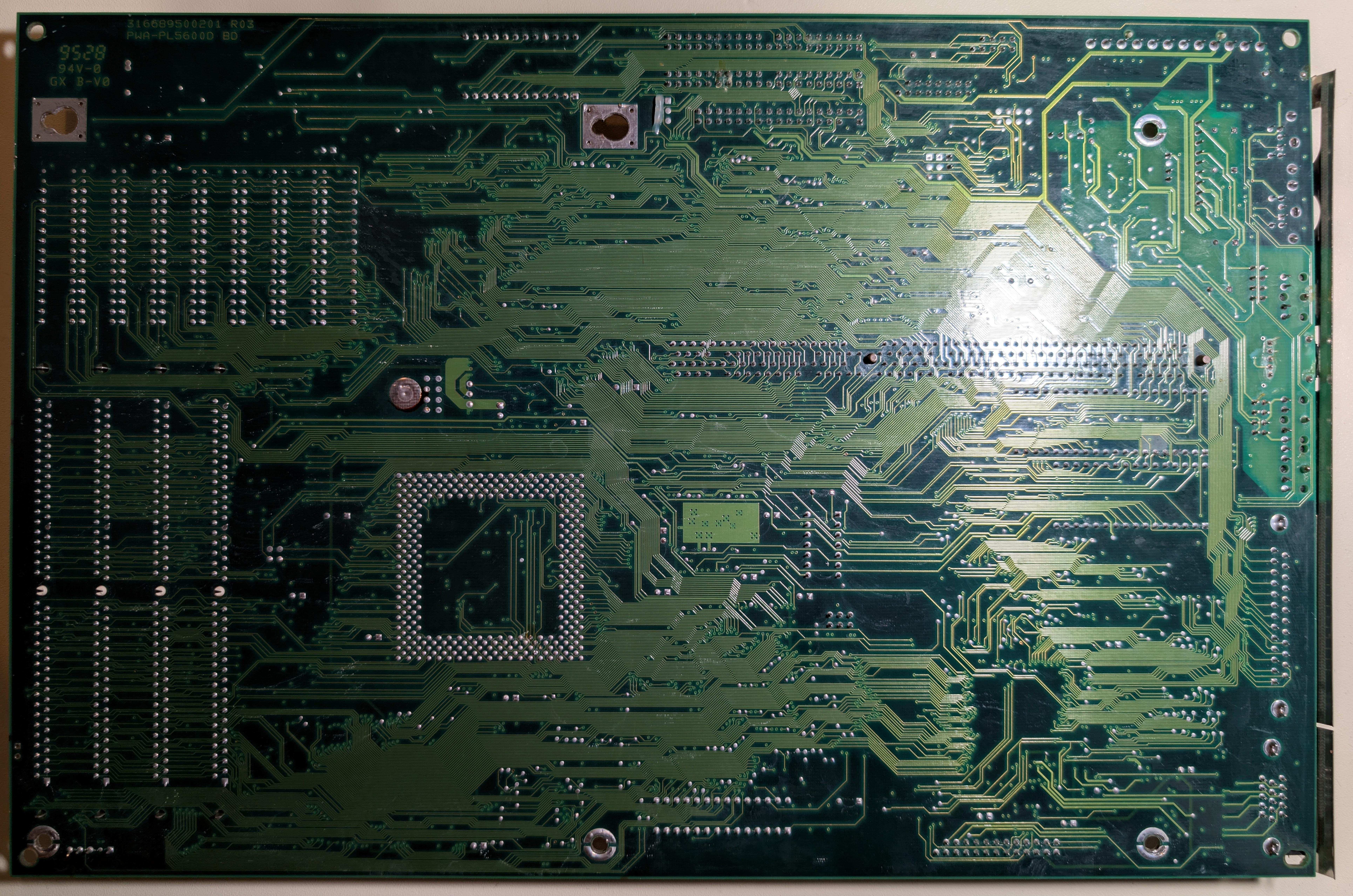

Image 1 of 7 (Microhouse)
Image 2 of 7 (d.rock)
Image 3 of 7 (d.rock)
Image 4 of 7 (d.rock)
Image 5 of 7 (d.rock)
Image 6 of 7 (d.rock)
Image 7 of 7 (d.rock)
