MCST E8C-SWTX (Ver. 3)
Logs
Chipset
Socket
FSB speed Empty
Form factorOEM / Proprietary
Dimensions406mm x 427mm
Cache
None/Integrated in the CPU
Max RAM size
256GB
RAM type DDR3 UDIMM ECC
PSU connector
Multi CPU support4 CPUs
I/O ports1x
GPIO
5x
RJ-45 LAN
8x
SATA III
2x
Serial
6x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x16
1x
PCIe x16 @ x4
1x
PCIe x16 @ x8
Notes
- 3 PCI Express 2.0 x16 slots (2×8 + 1×4 or 1×16 + 1×4)
- 3 x 1000Base-T Ethernet ports with RJ45 connectors + 2 x 100Base-TX Ethernet ports with RJ45 connector for MUS
Last updated 2025-11-23T15:29:22Z
Board info score is 7.7/10
Chips
-> Chipset part
-> Network
-> Programmable Logic
-> Signal transmitter/receiver
-> Video
CPU family support
0 BIOS files available
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

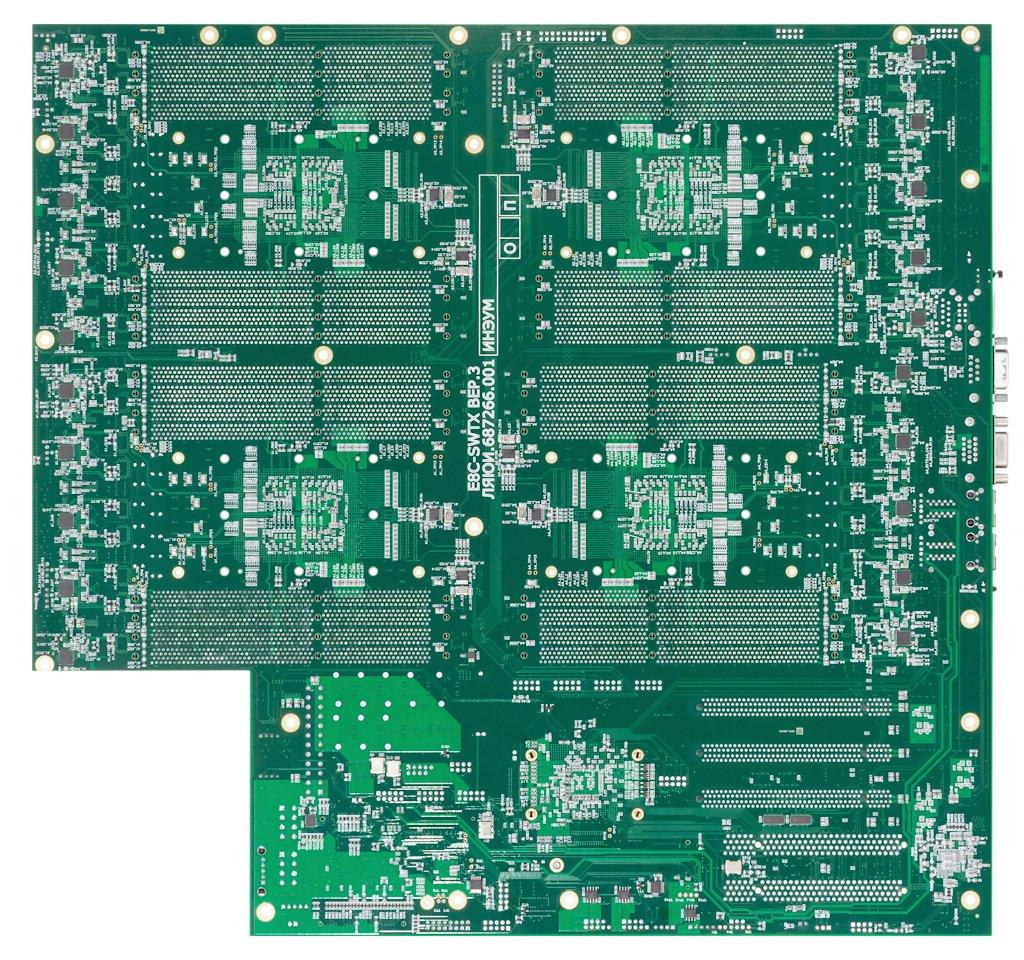

Image 1 of 5 (MCST)

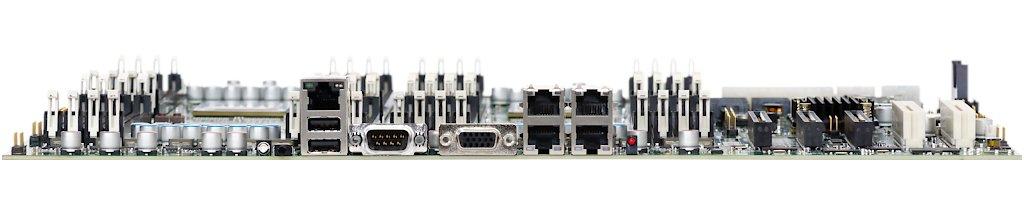

Image 2 of 5 (MCST)

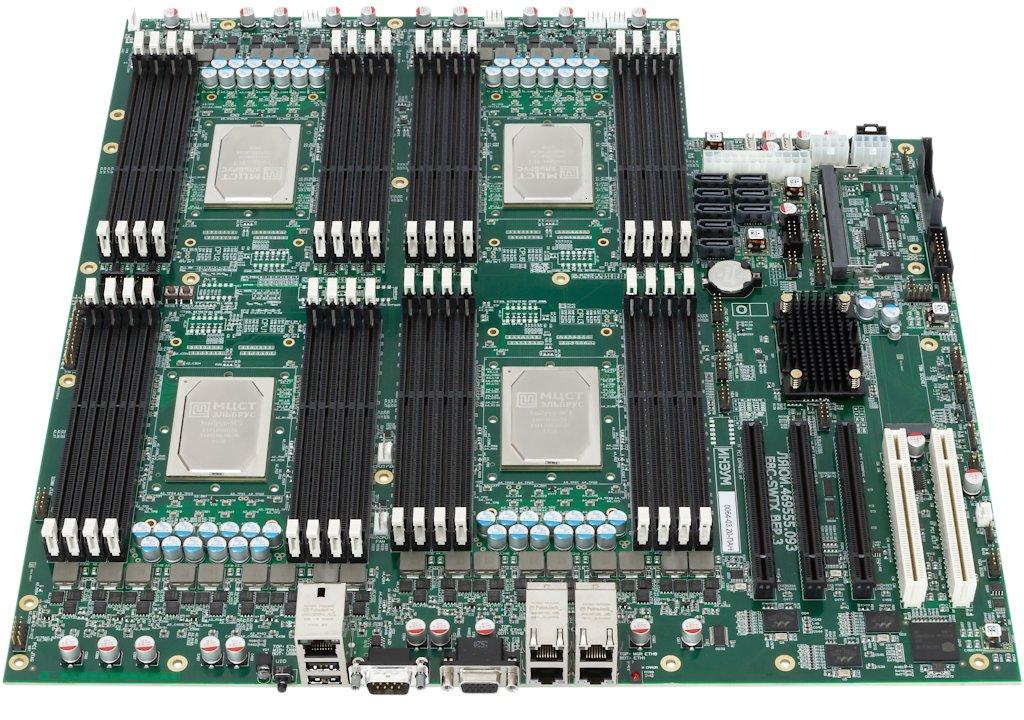

Image 3 of 5 (MCST)

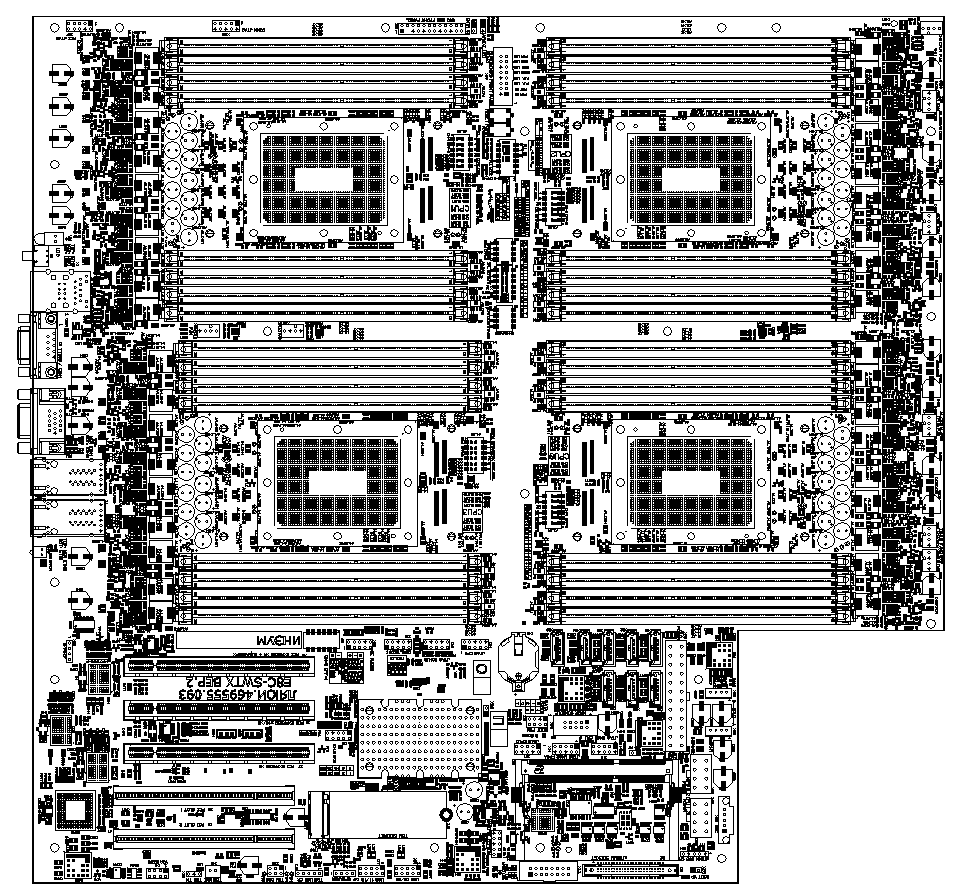

Image 4 of 5 (MCST)
