Lucky Star LS-486EF REV:B
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
128KB256KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Also known as
- Lucky Star SIS486 P.I.
- Lucky Star LS-486E REV:F
- Lucky Star LS-486E(B) REV:F
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
3x
32-bit PCI
Notes
Improved PCI 2.1 support (tested with ATi Rage LT PRO)
Last updated 2025-12-11T08:05:37Z
Board info score is 9.5/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Human Interface
-> Signal transmitter/receiver
-> Super I/O
CPU family support
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/14/96-SiS-496-497/A/B-2A4IBL13C-00
Note
Core version
4.50G
BIOS version
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
Empty
Filename
Version
OS support
MS-DOS
NetWare Server 3
OS/2 1.x
Windows 3.0
Windows NT 3.1
Arch
x86
Size
97.9KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

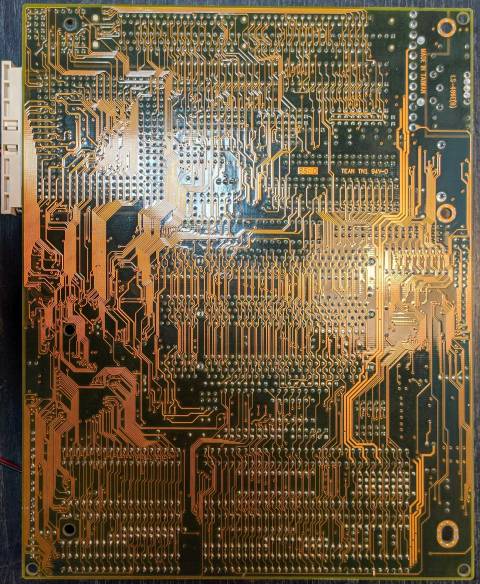

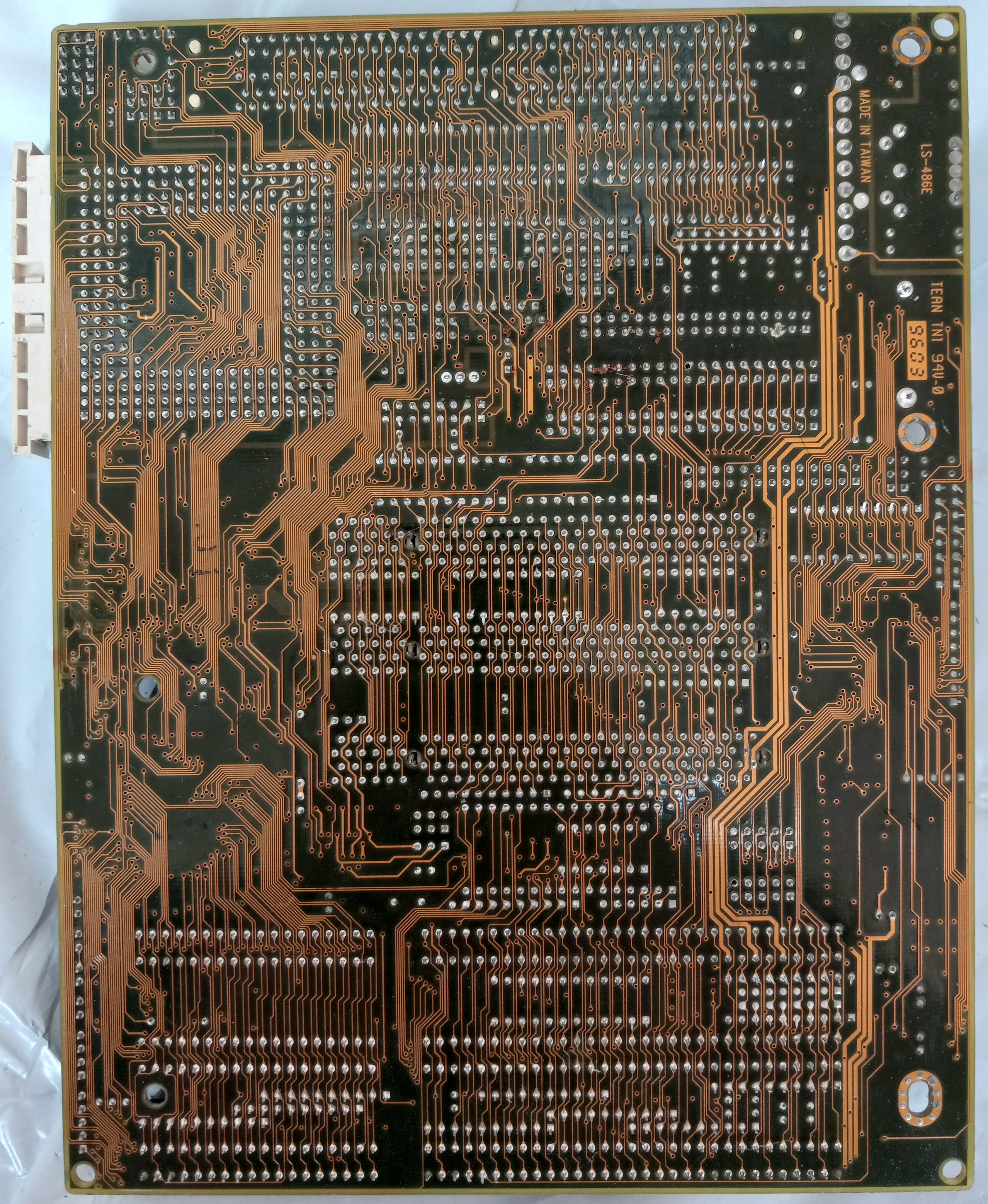

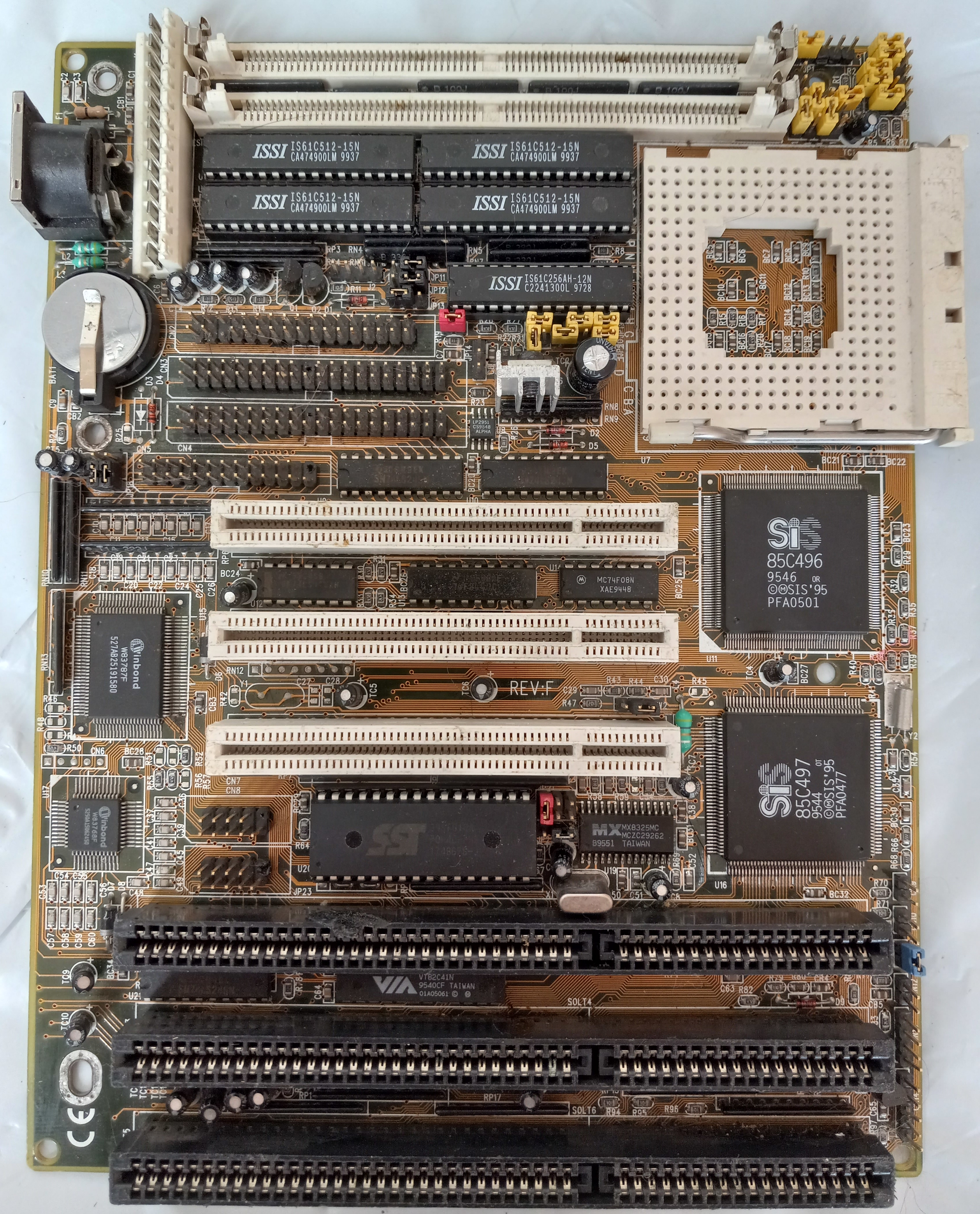

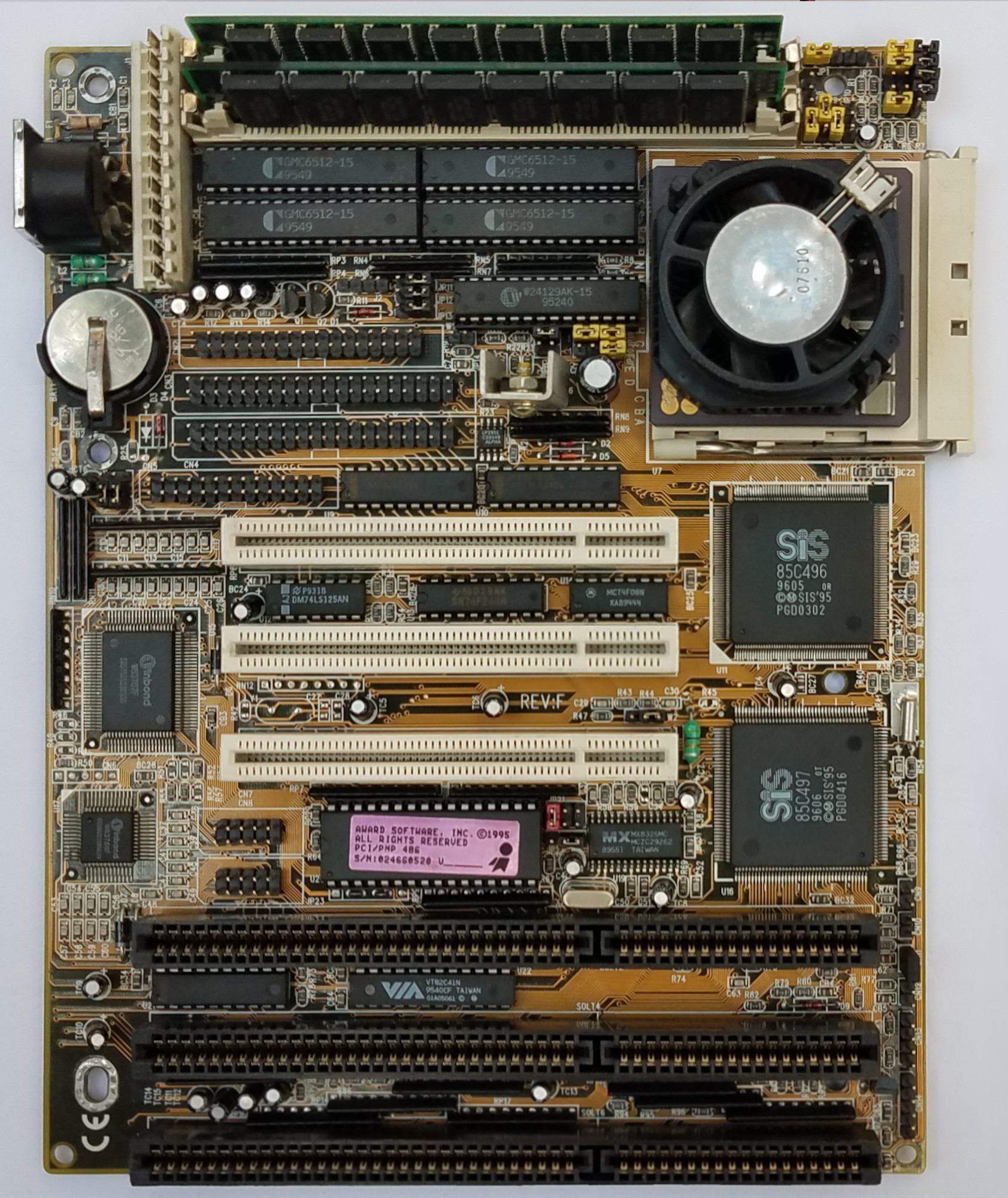

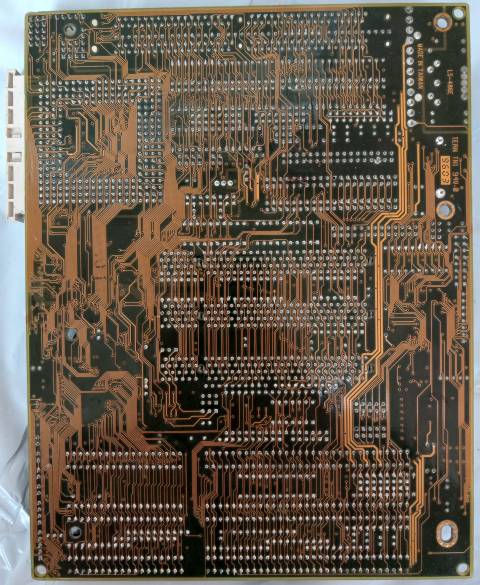

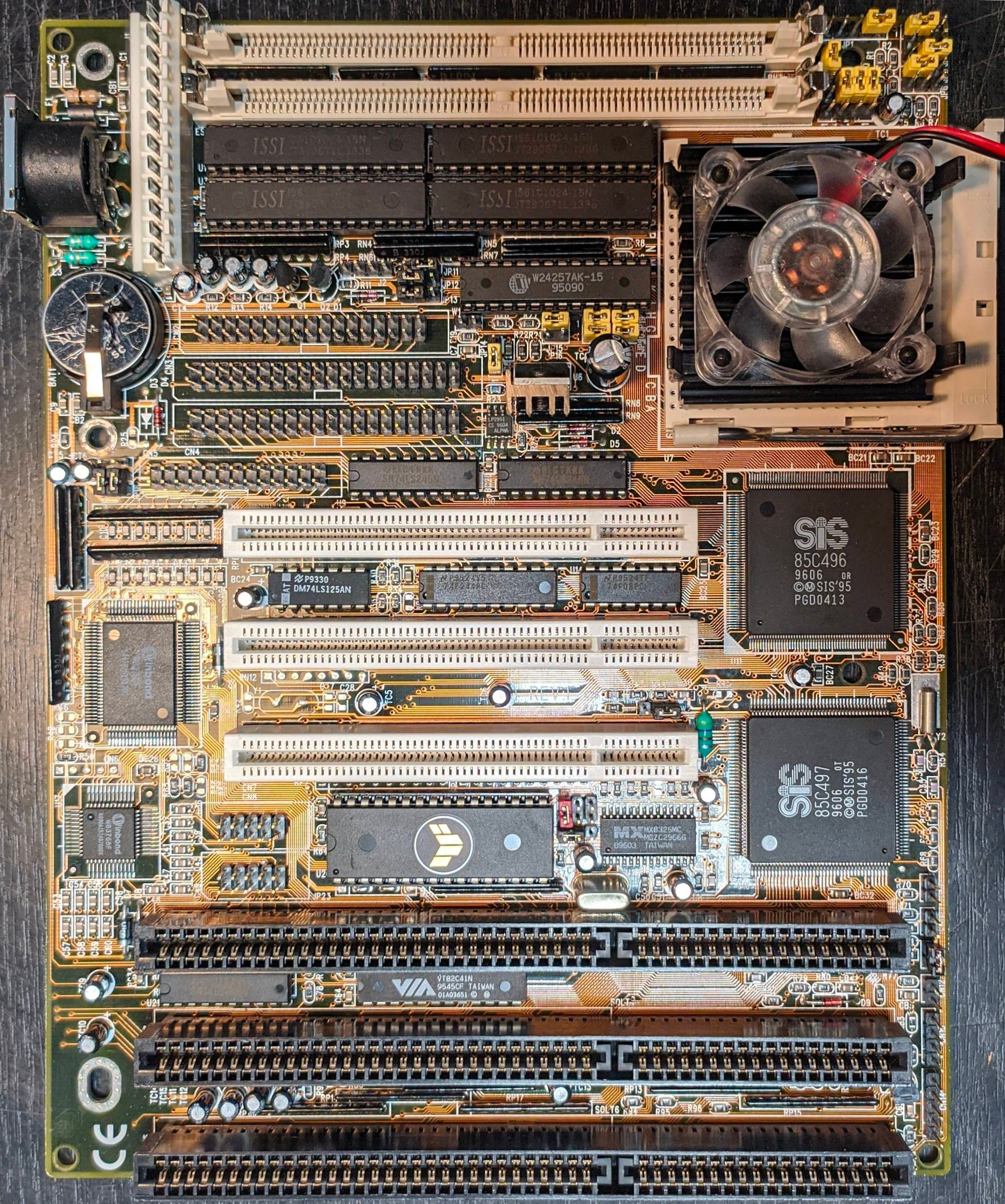

Image 1 of 6 (evasive)
Image 2 of 6 (pshipkov)
Image 3 of 6 (PowerGood.)
Image 4 of 6 (AltairTheDragonHorse)
Image 5 of 6 (PowerGood.)
Image 6 of 6 (AltairTheDragonHorse)
