Lanner Electronics EM-9641 series
Logs
chipChipset
cpuSocket
FCBGA479 (BGA479)
speedFSB speed
400MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170 mm x 170 mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
GPIO
2x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
notes Notes

EM-9641B Onboard Intel Celeron 1GHz(Zero L2 Cache) with FSB 400/MHz DDR 200/266 SDRAM VIA VT1616 supports 5.1 CH Audio Realtek RTL8110S Gigabit LAN 3 x RS-232,1 x RS232/422/485 one Mini PCI slot 16 bit GPIO EM-9641D Onboard Intel Celeron 600 MHz (512k L2 Cache) with FSB 400/MHz DDR 200/266 SDRAM VIA VT1616 supports 5.1 CH Audio Realtek RTL8110S Gigabit LAN 3 x RS-232,1 x RS232/422/485 one Mini PCI slot 16 bit GPIO

Last updated 2025-12-11T05:59:42Z
Board info score is 7.7/10
bios 0 BIOS files available
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
4.1
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Name
Version
2.11.15
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
1.60.615
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename

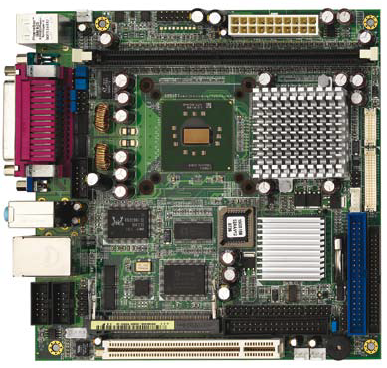

image1 Image 1 of 1 (Lanner Electronics)
