Kontron pITX-SP
Logs
chipChipset
cpuSocket
BGA441
speedFSB speed
Empty
moboForm factor
Pico ITX Biscuit SBC 2.5" (max 100 x 72 mm)
dimDimensions
100mm x 72mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
DC Jack (5V)
maxcpuMulti CPU support
4 CPUs
connI/O ports
1x
DVI
1x
GPIO
1x
IDE interface
1x
RJ-45 LAN
2x
SATA II
1x
SD Card Slot
6x
USB 2.0
cardExpansion slots
Empty
Last updated 2026-01-05T19:38:32Z
Board info score is 7/10
chip Chips
-> Chipset part
Intel AF82US15W (SCH)
-> Network
Intel 82574L (PCIe Gigabit Ethernet)
cpufam CPU family support
bios 0 BIOS files available
drv No drivers available
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
File
Logs
Family
Release date
2014-07
File
Logs
doc 2 other files available
Title
File
Logs
Title
3D mechanical drawing (IGS)
File
Logs
Title
3D mechanical drawing (STEP)
File
Logs

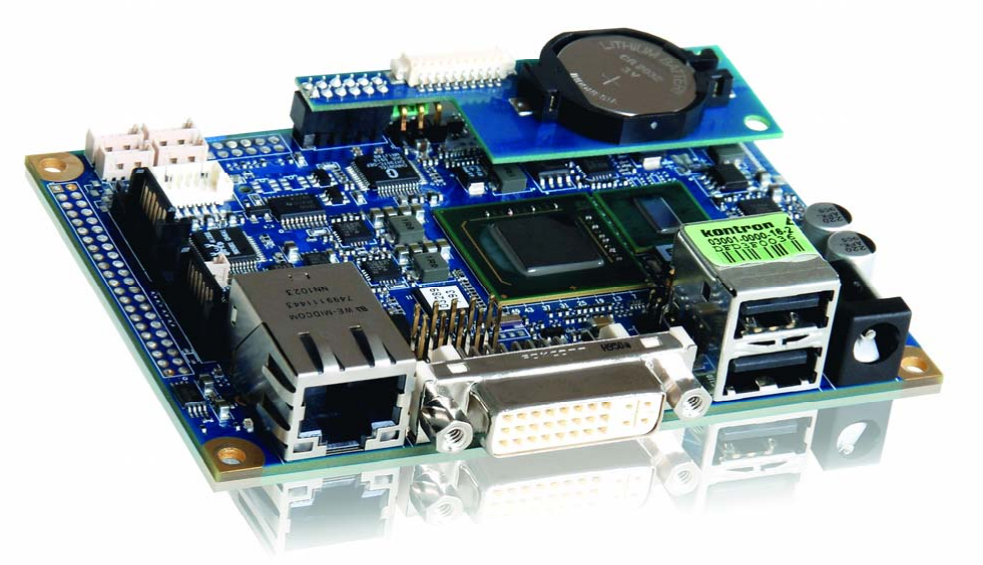

image1 Image 1 of 3 (Kontron)

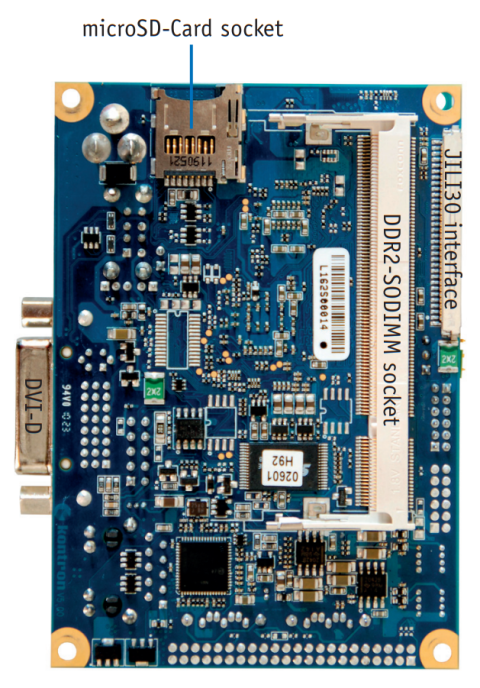

image2 Image 2 of 3 (Kontron)

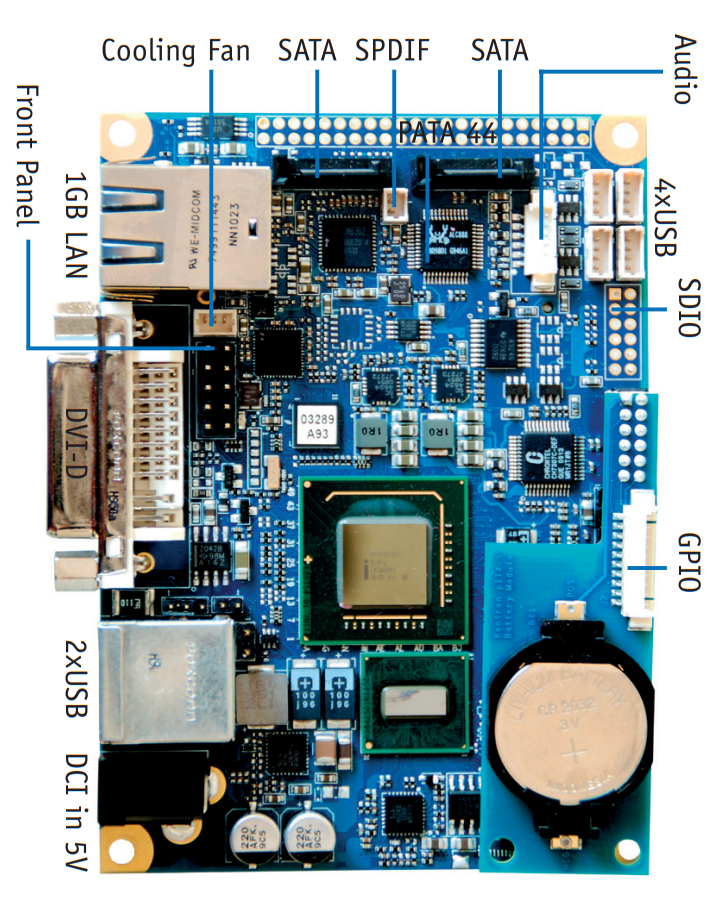

image3 Image 3 of 3 (Kontron)
