Kontron JRexplus-LX
Logs
Chipset
Socket
FSB speed Empty
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions147mm x 102mm
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type 200-pin DDR SO-DIMM
PSU connector
I/O ports1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
LVDS
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
Serial
4x
USB 2.0
1x
VGA
Expansion slots1x
PCI-104
Notes
- JRexplus-LX (02006-0000-50-0) - 24 Bit LVDS support
- JRexplus-LX (02006-0000-50-1) - 18 Bit LVDS support
Last updated 2026-01-05T19:16:00Z
Board info score is 6.5/10
Chips
-> Chipset part
CPU family support
0 BIOS files available
No drivers available
5 board documents available
Release date
File
Logs
Family
Release date
File
Logs
2 other files available
Title
File
Logs

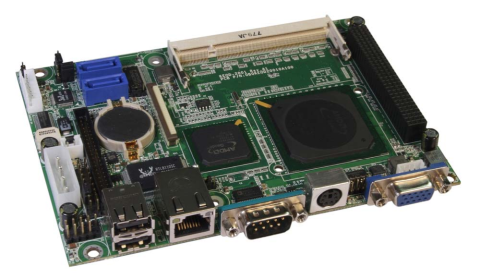

Image 1 of 2 (Kontron)

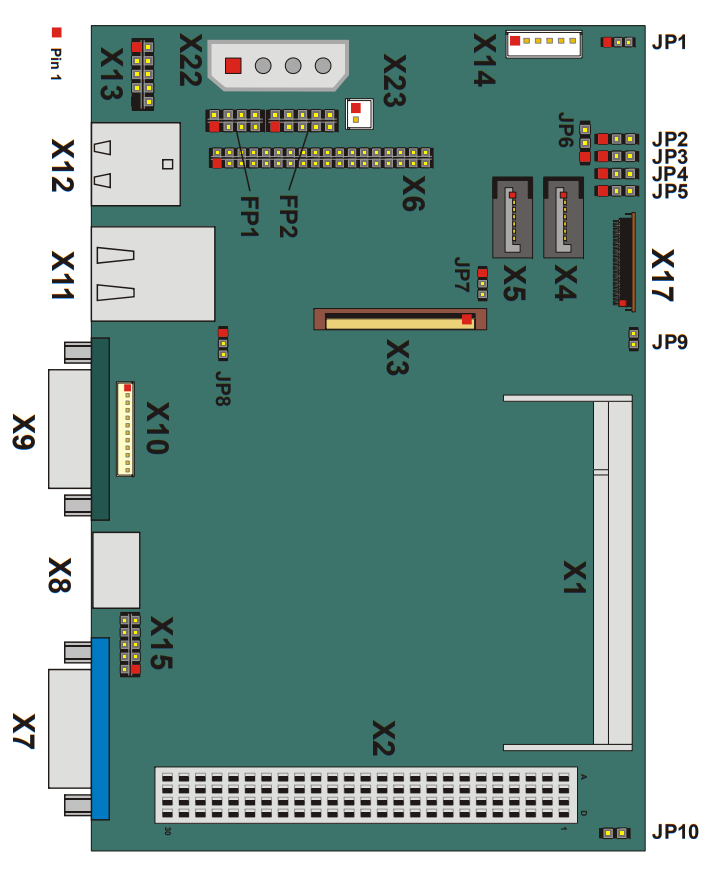

Image 2 of 2 (Kontron)
