Kompan/Infinity (КОМПАН) Kompan 386RC
Logs
chipChipset
cpuSockets
PGA132 PGA121
speedFSB speed
40MHz
moboForm factor
OEM / Proprietary
dimDimensions
Empty
ramMax VRAM size
1MB
chipCache
128KB
ramMax RAM size
Empty
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-24T18:53:05Z
Board info score is 7.9/10
bios 2 BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0201-ZZ1132-00101111-050591-OPWB
Note
KOMPAN - INFINITY GROUP
Core version
050591
BIOS version
Logs

vendor Quadtel - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Trident
Note
VGA BIOS
Core version
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
C4.02
OS support
Windows 3.0
Arch
x86
Size
1.1MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
1989-08-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1992-03-13
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1986-11
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Chip
Release date
1988-10
File
Logs
Chip
Release date
File
Logs

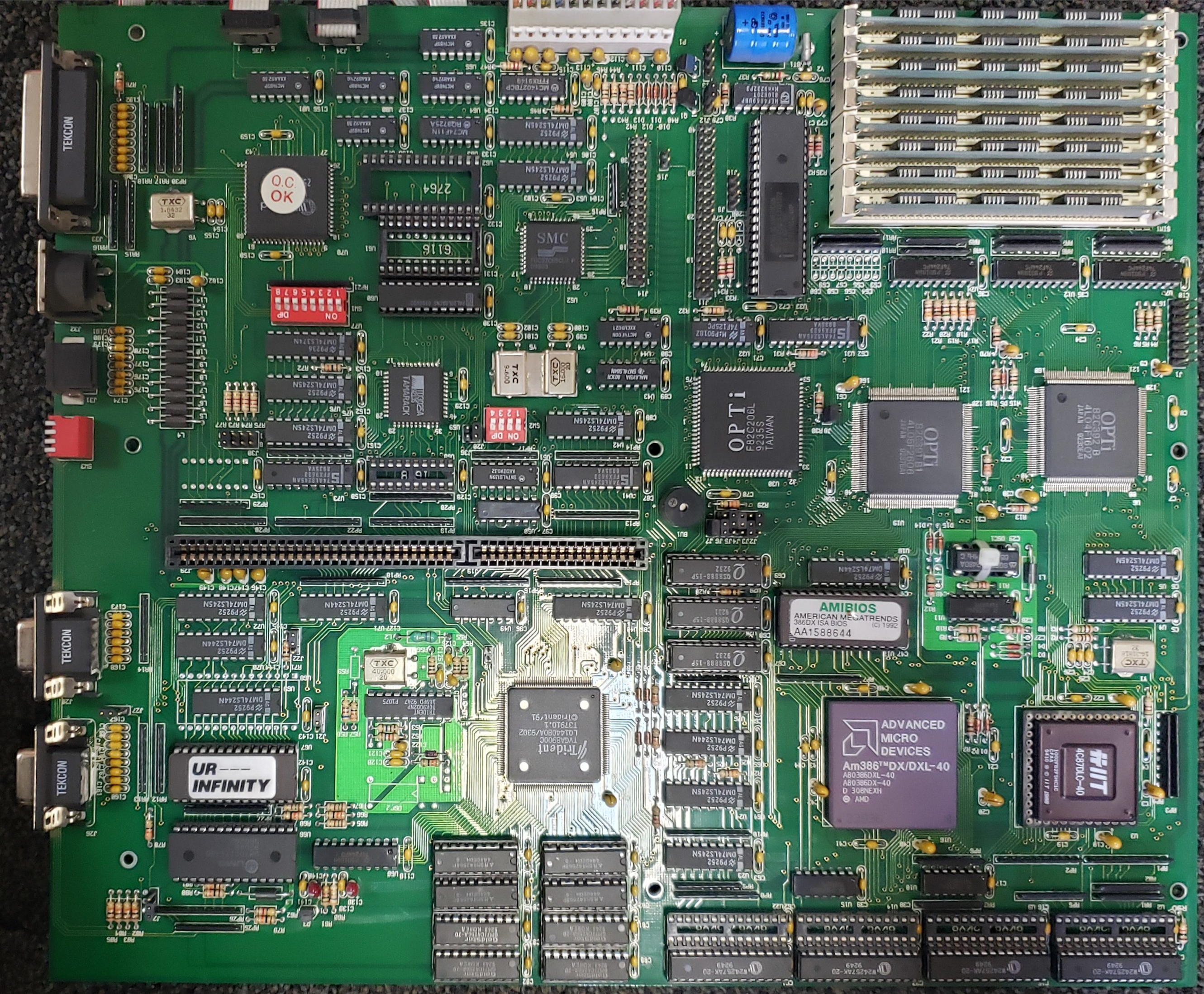

image1 Image 1 of 2 (Cbb)

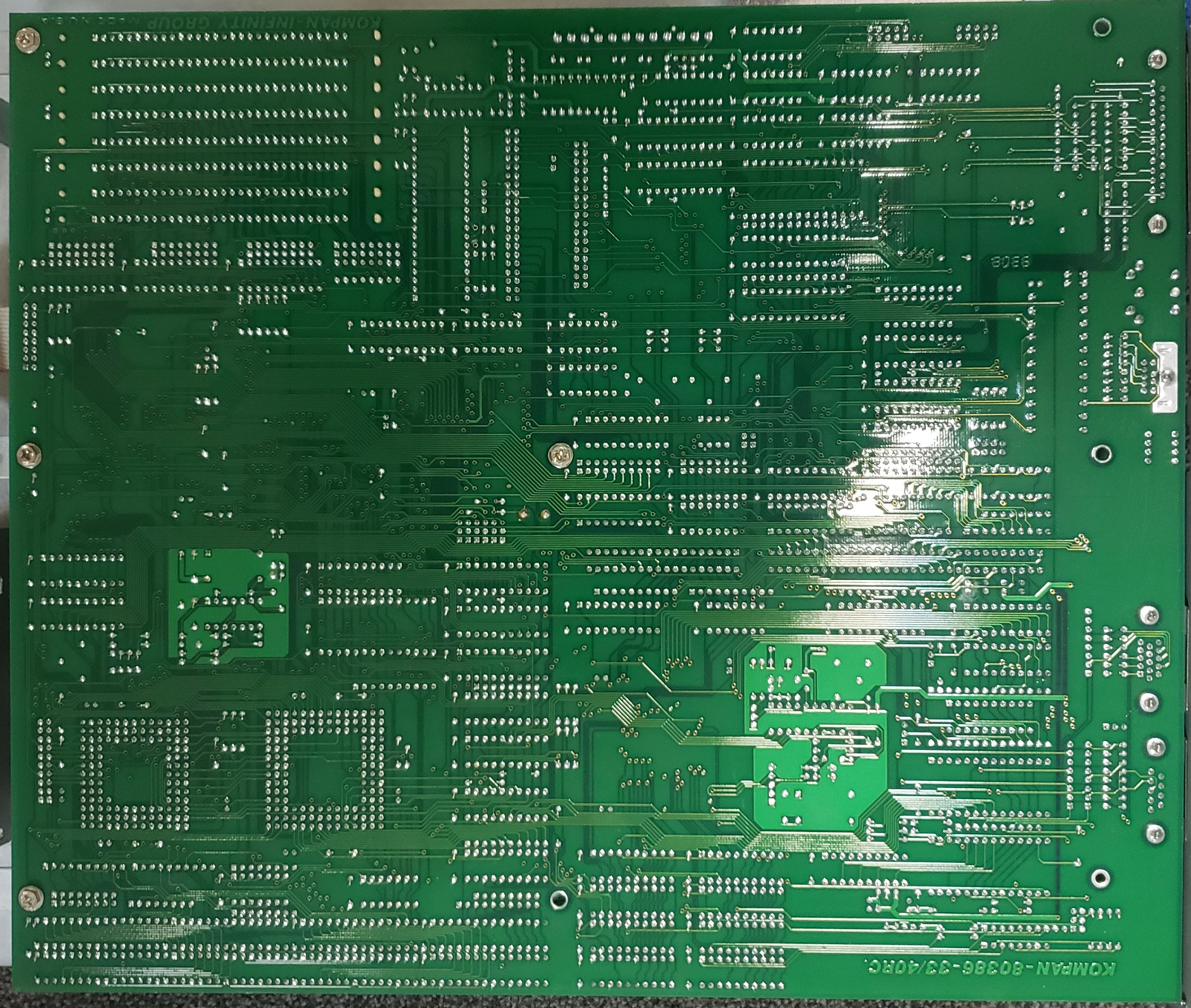

image2 Image 2 of 2 (Cbb)
