JUKO NEST N3
Logs
chipChipset
cpuSocket
DIP40
speedFSB speeds
4.77MHz7.16MHz10MHz
moboForm factor
XT (max 216 × 279 mm)
dimDimensions
220mm x 210mm
chipCache
None/Integrated in the CPU
ramMax RAM size
512KB640KB1MB
ramRAM types
DIP-20 (4bit)DIP-18 (4bit)DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
XT Keyboard
cardExpansion slots
8x
8-bit ISA
notes Notes

Since GLaBIOS release 0.4.0, there is also a modern, scratch-built, open-source alternative BIOS available for this special board/chipset, in both 8086 and V30 variants.

GLaBIOS on GitHub

Last updated 2025-07-19T14:04:58Z
Board info score is 8.3/10
bios 2 BIOS files available

vendor JUKO - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
POST string
Note
Core version
V3
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
1988
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
V30
Release date
1986-10
File
Logs
image1 Image 1 of 2 (evasive)

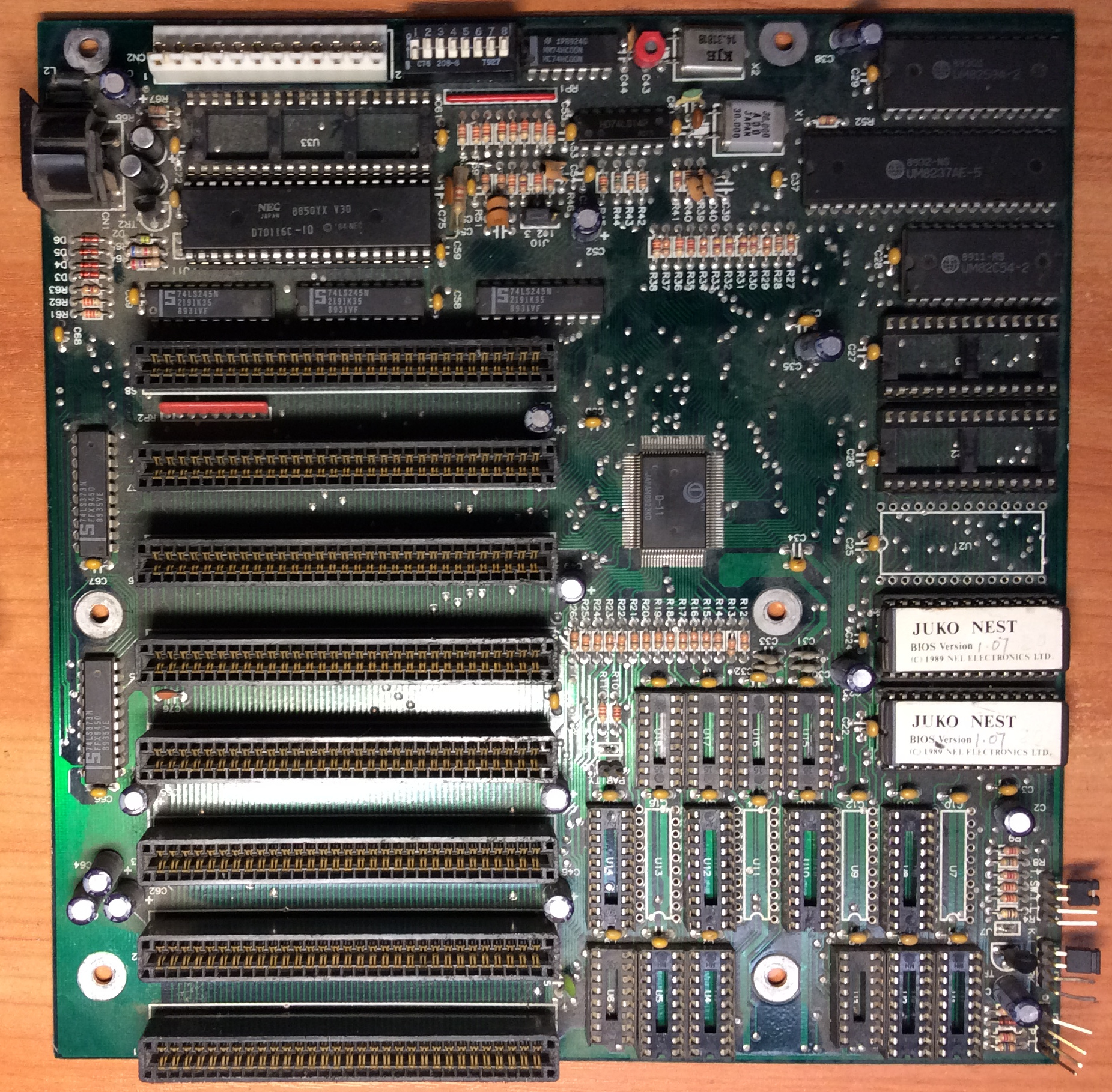

image2 Image 2 of 2 (Jager)
