Jetway V600DAP
Chipset
Socket
FSB speeds 200MHz266MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 210mm
Cache
None/Integrated in the CPU
Max RAM size
3GB
RAM type DDR UDIMM
PSU connector
Also known as
- Jetway V600DA (no LAN)
- Mach Speed Viper V600DAP
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
Serial
8x
USB 2.0
Expansion slots1x
1.5V AGP
5x
32-bit PCI
1x
CNR
Last updated 2022-12-30T10:29:53Z
Board info score is 9.2/10
Chips
CPU family support
5 BIOS files available
Award - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/13/2004-KT600-8237-6A6LYJ19C-00
Note
V600DAP
Core version
6.00PG
BIOS version
Logs
POST string
10/07/2003-KT600-8237-6A6LYJ19C-00
Note
V600DA
Core version
6.00PG
BIOS version
Logs
POST string
10/07/2003-KT600-8237-6A6LYJ19C-00
Note
V600DAP
Core version
6.00PG
BIOS version
Logs
POST string
08/06/2003-KT600-8237-6A6LYJ19C-00
Note
V600DA
Core version
6.00PG
BIOS version
Logs
POST string
08/06/2003-KT600-8237-6A6LYJ19C-00
Note
V600DAP
Core version
6.00PG
BIOS version
Logs
7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
, x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000
Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000
Windows NT 4.0
Windows Vista
Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

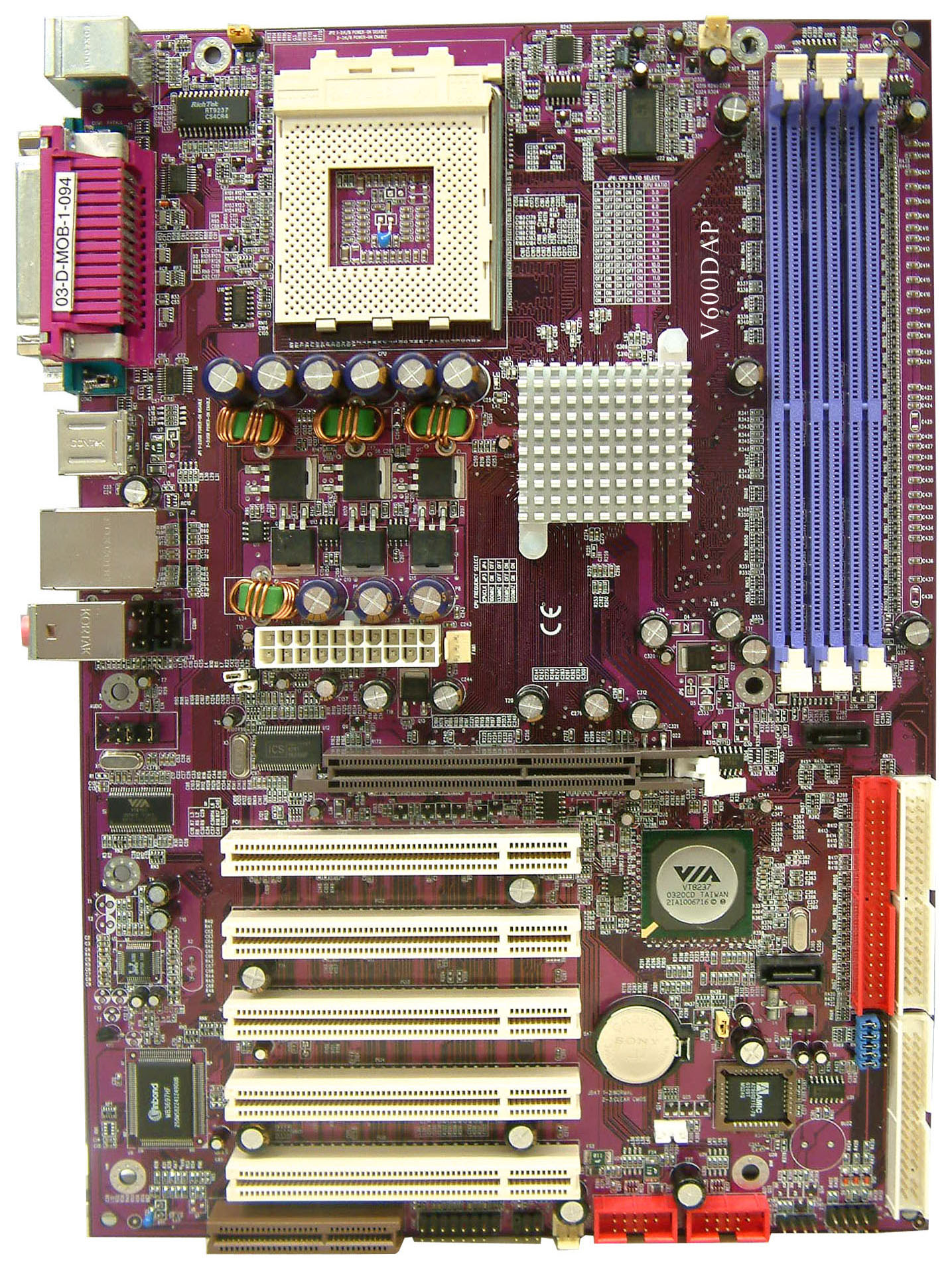

Image 1 of 1
