Jetway NF9C-2600
Logs
chipChipset
cpuSocket
BGA559
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
DC Jack (12V) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Line-Out
1x
CFast socket
1x
HDMI
2x
LVDS
1x
RJ-45 LAN
2x
SATA II
1x
SATA III
4x
Serial
7x
USB 2.0
cardExpansion slots
1x
32-bit PCI
1x
Mini-PCIe
Last updated 2025-12-11T03:53:50Z
Board info score is 9.3/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-102010-Chipset-0AAAA000
Note
08-30-2013
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

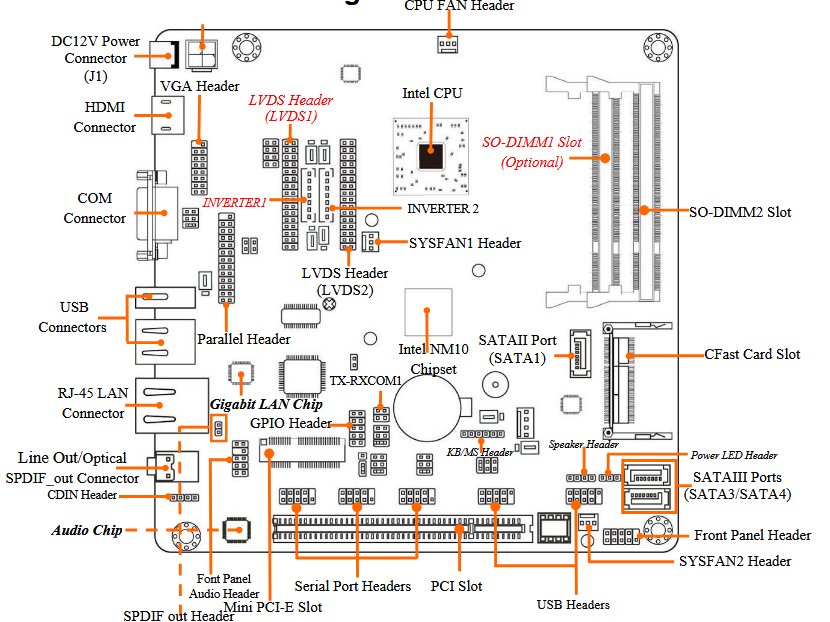

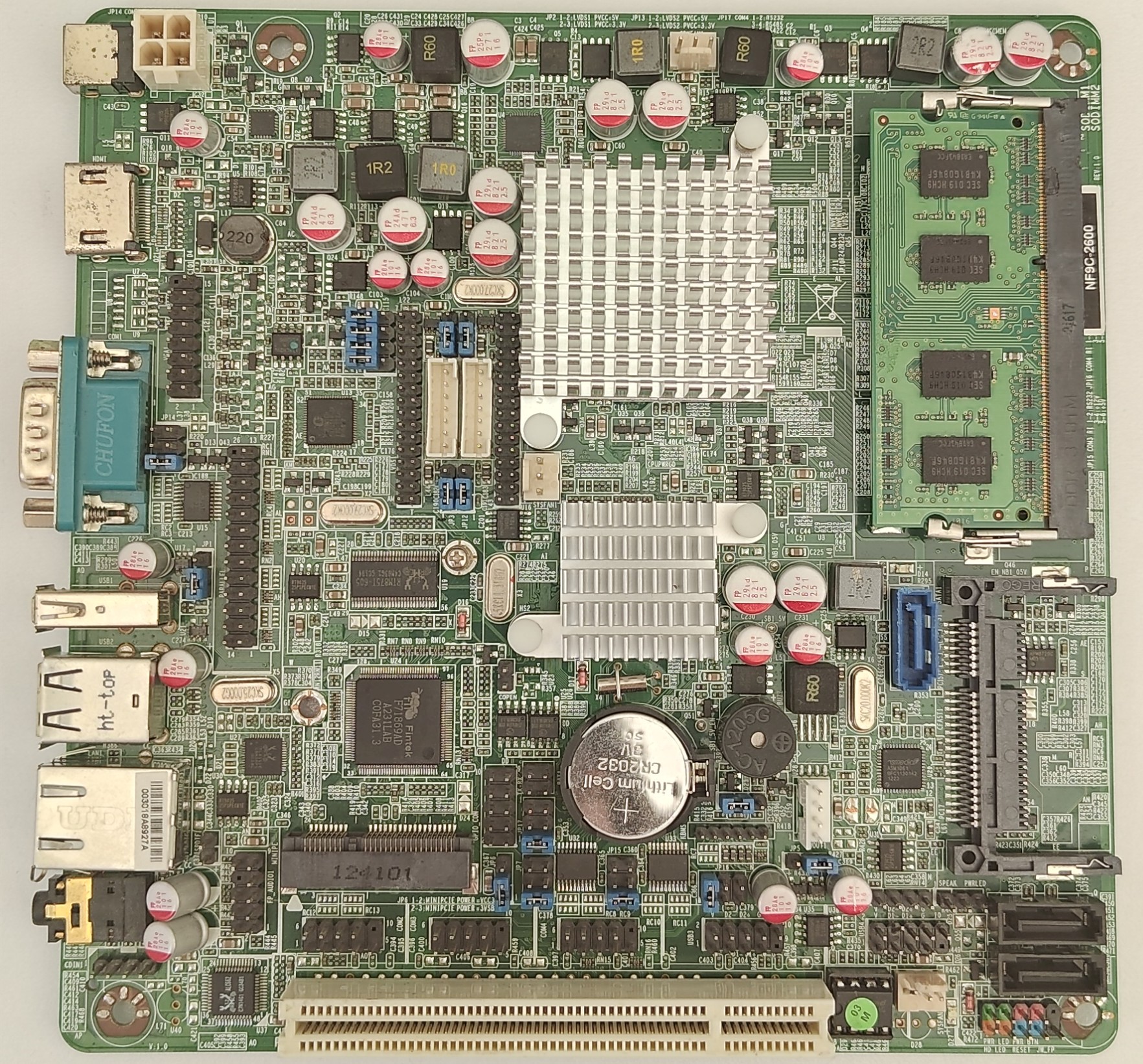

image1 Image 1 of 4 (Jetway)
image2 Image 2 of 4 (Ashley98)
image3 Image 3 of 4 (Ashley98)
image4 Image 4 of 4 (Ashley98)
