Intel SE7520AF2
Chipset
Socket
FSB speed 800MHz
Form factorSSI EEB (max 305 × 330 mm)
Dimensions305mm x 330mm
Max VRAM size8MB
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR2 RDIMM ECC
PSU connector
Multi CPU support2 CPUs
I/O ports1x
Floppy interface
1x
IDE interface
2x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
2x
SATA I
2x
Serial
3x
USB 2.0
1x
VGA
Expansion slots3x
64-bit PCI-X
2x
PCIe x4
Notes
Supports 4GB per DIMM density.
Last updated 2025-08-03T12:24:48Z
Board info score is 7.7/10
Chips
-> Chipset part
-> Bridge Interface
-> Network
-> Processor
-> SCSI ctrl.
-> Super I/O
-> Video
CPU family support
0 BIOS files available
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-07
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2006-02
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs

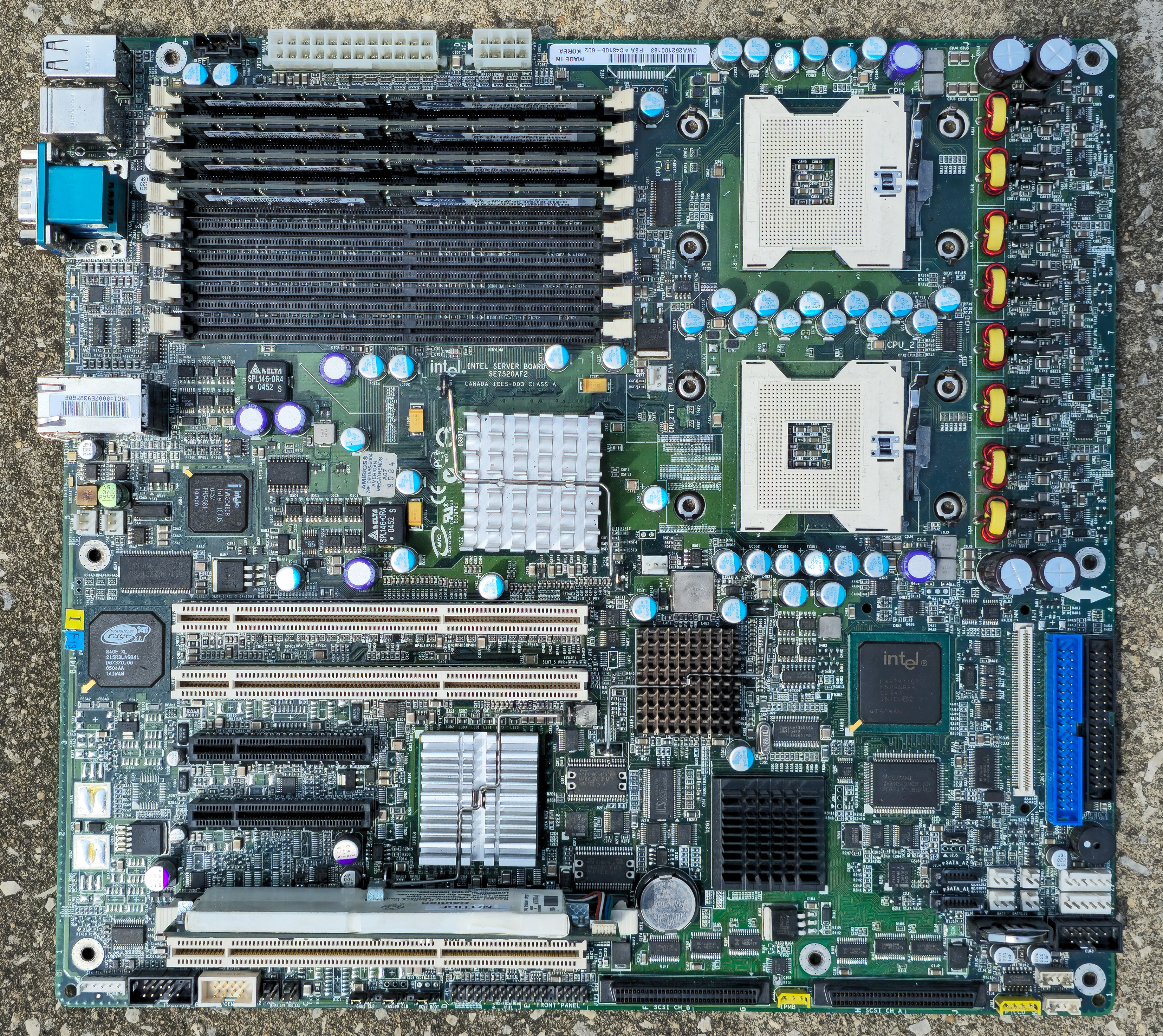

Image 1 of 1 (computerguy096)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
