Intel SE7505VB2 (Vero Beach)
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speeds
400MHz533MHz
moboForm factor
SSI EEB (max 305 × 330 mm)
dimDimensions
305 x 330mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR RDIMM ECC
pwrPSU connector
OEM/Proprietary ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
  • Intel SC5200/SC5250-E System Board

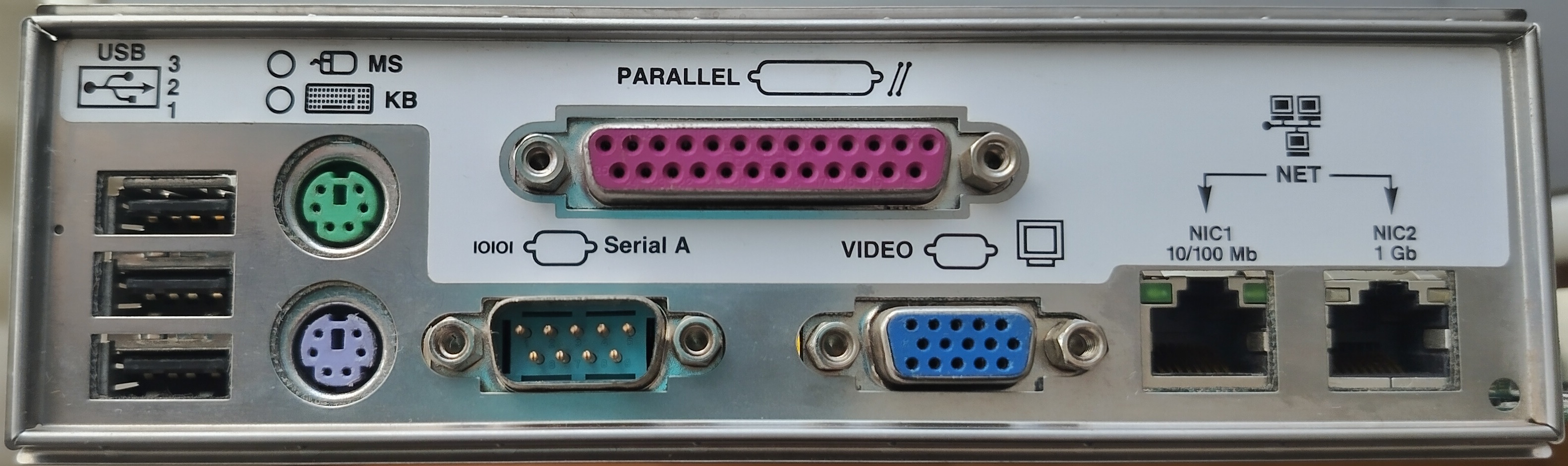

connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
SATA I
1x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP Pro
3x
32-bit PCI
2x
64-bit PCI-X
notes Notes

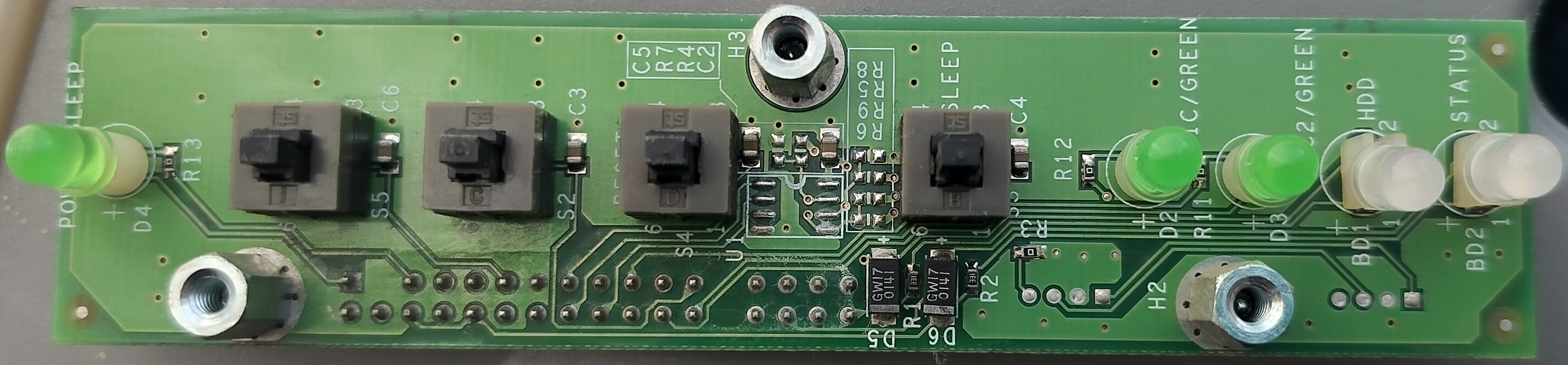

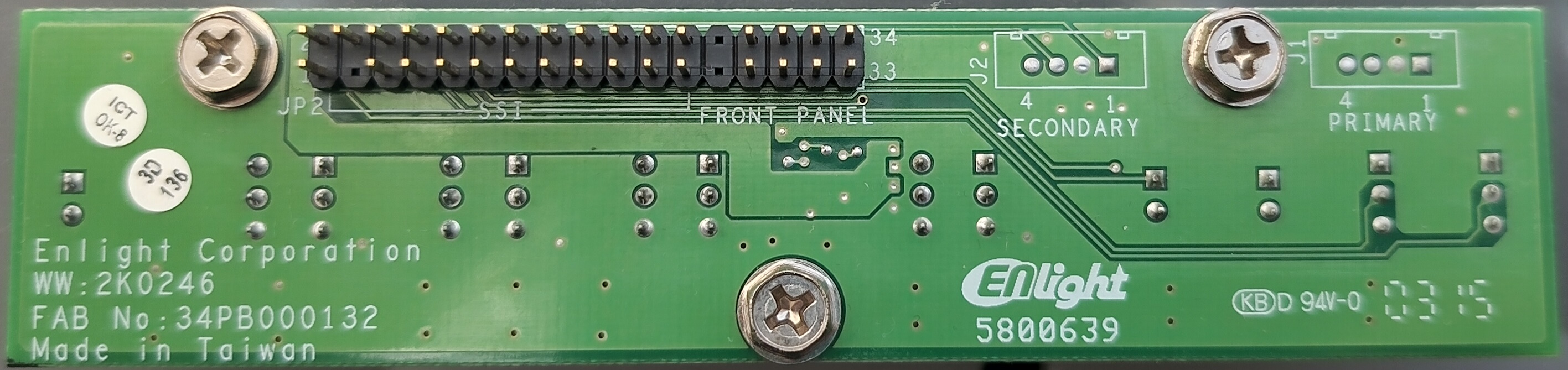

SSI-compatible front panel (such as pictured) is potentionally required for operation

Last updated 2024-10-01T12:39:40Z
Board info score is 9/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
09/07/04 22:18:33
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
Note
06/28/04 13:54:47
Core version
4.0 rel. 6.0
BIOS version
Logs
drv 43 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
2.11.15
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
6.2
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
1.2.0.5
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.5MB
Filename
Name
Version
1.3.68.2
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86
Size
127.8KB
Filename
Name
Version
1.3.61.0
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
122.5KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
372KB
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
353KB
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
350.7KB
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
332.3KB
Filename
Version
OS support
Windows XP/2k3
Arch
x86-64 , IA-64
Size
344.1KB
Filename
Version
OS support
Windows XP/2k3
Arch
x86-64 , IA-64
Size
253.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
142.2KB
Filename
Version
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86
Size
127.8KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
137.4KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
123.5KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
123.1KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
102.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
443.1KB
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64
Size
162.7KB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
429.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7
Arch
x86 , x86-64
Size
6.9MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
145.5KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
130KB
Filename
doc 9 board documents available
Release date
File
Logs
Release date
2006-01
File
Logs
Release date
2003
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
2004-04
File
Logs
Release date
2004-12
File
Logs
Release date
2004-01-21
File
Logs
Release date
File
Logs
Release date
2003-02-21
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-06-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

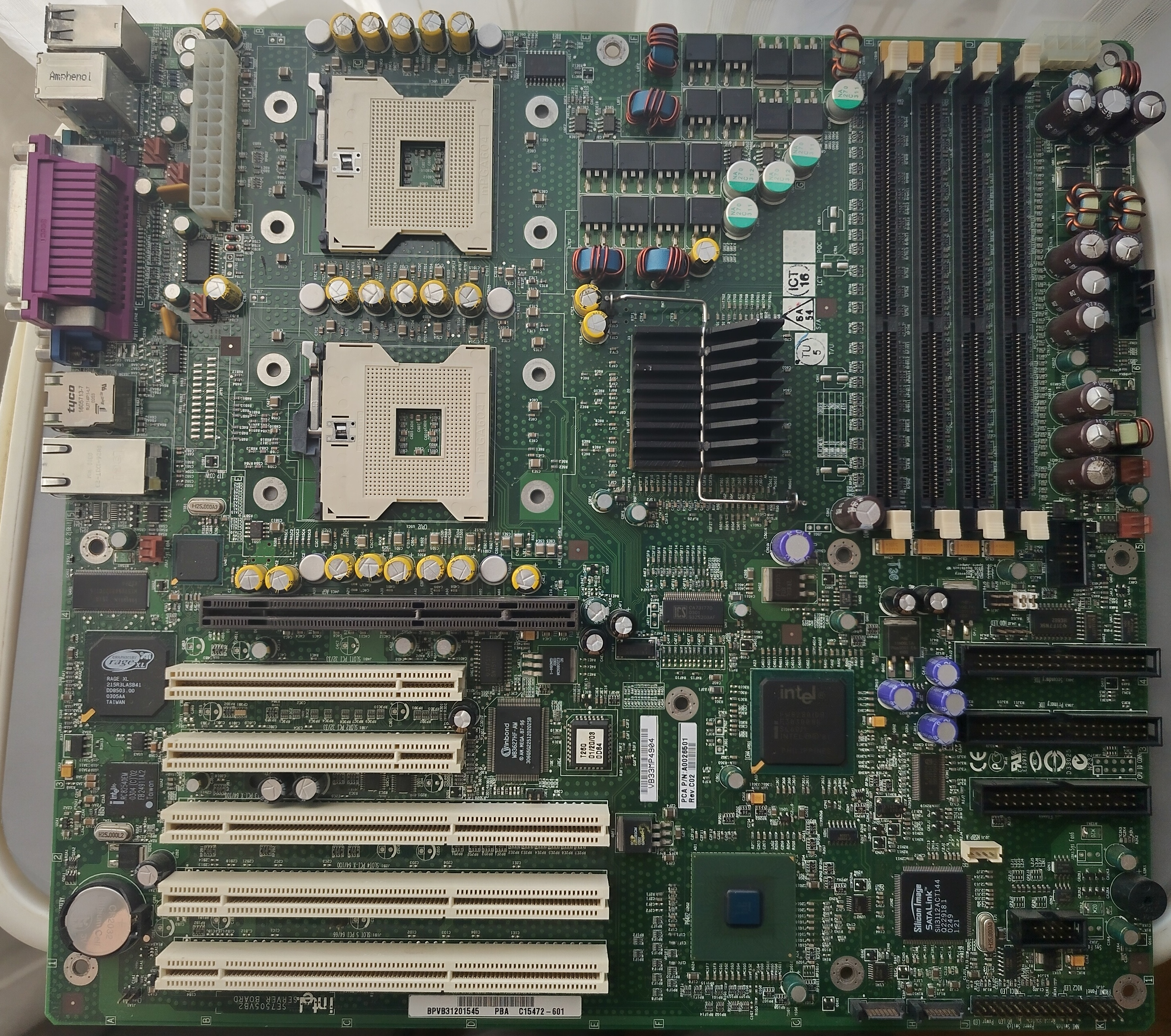

image1 Image 1 of 5 (Harakhti)

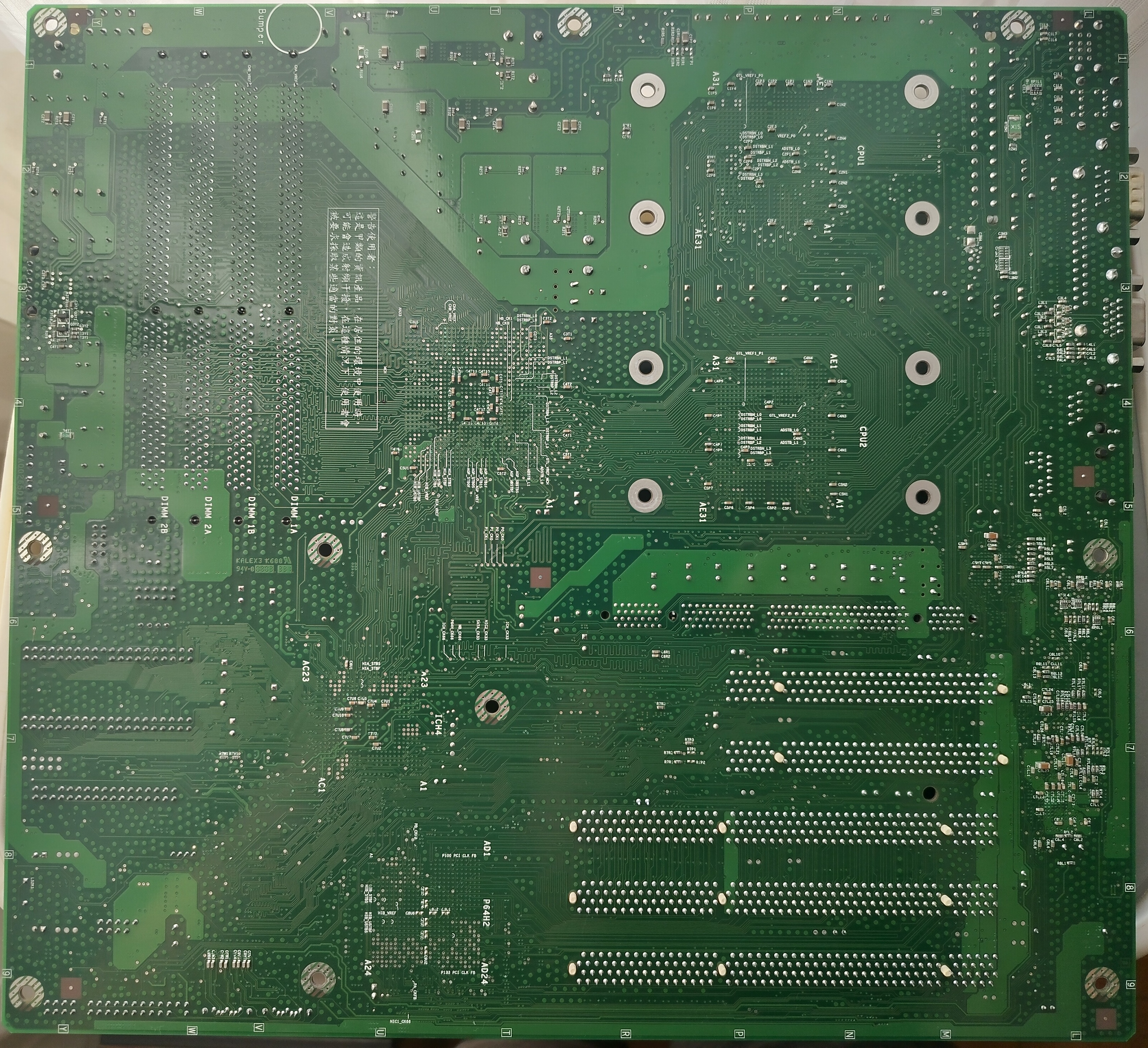

image2 Image 2 of 5 (Harakhti)
image3 Image 3 of 5 (Harakhti)
image4 Image 4 of 5 (Harakhti)
image5 Image 5 of 5 (Harakhti)
