Intel DQ67EP (Eastern Point)
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
2x
DVI
1x
DisplayPort
1x
RJ-45 LAN
2x
SATA II
2x
SATA III
1x
Serial
10x
USB 2.0
2x
USB 3.0
2x
eSATA II
cardExpansion slots
1x
Mini-PCIe
1x
PCIe x16
wrench No board specific known issues
  • Recalled Product (Certain revisions only)

One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.

Always look the hardware compoment's page for more info about it.

Last updated 2025-05-14T12:20:31Z
Board info score is 9.2/10
bios 14 BIOS files available

vendor Intel - 14 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
SWQ6710H.86A.0060.2011.1220.1805
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0057.2011.1111.1537
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0055.2011.0921.1044
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0054.2011.0815.1459
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0053.2011.0615.1535
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0052.2011.0520.1802
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0051.2011.0413.1154
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0050.2011.0401.1409
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0049.2011.0314.1053
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0047.2011.0222.1058
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0041.2011.0114.1542
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0038.2010.1227.1958
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0037.2010.1222.1328
Note
Core version
UEFI
BIOS version
Logs
POST string
SWQ6710H.86A.0032.2010.1204.0539
Note
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2010-12
File
Logs
Release date
2011-03
File
Logs
Release date
2011-01
File
Logs
Release date
2011-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs

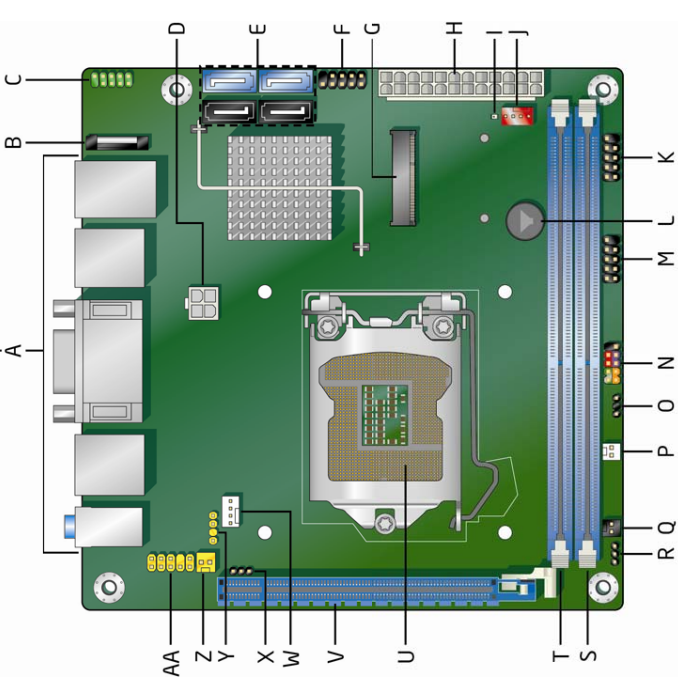

image1 Image 1 of 4 (Intel)

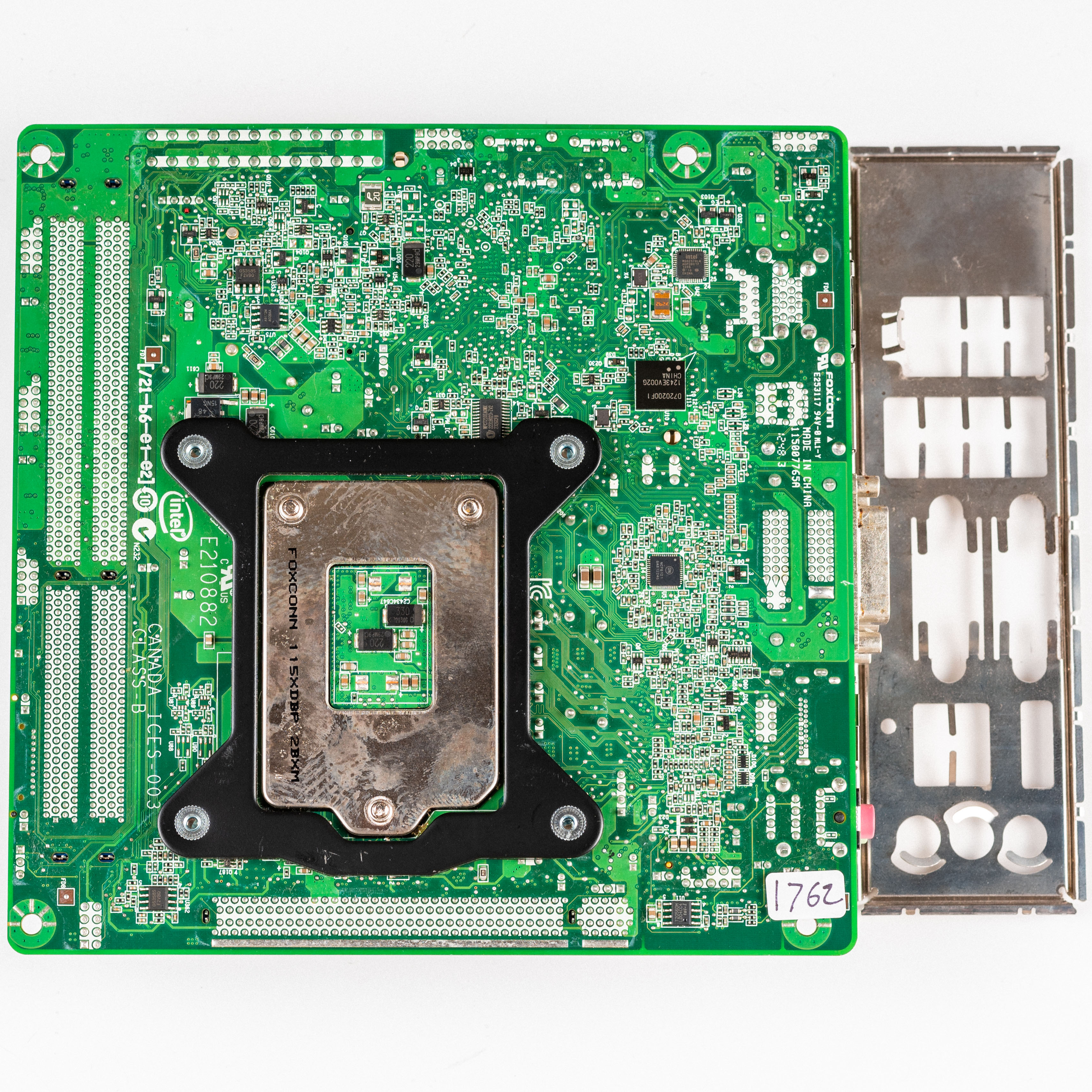

image2 Image 2 of 4 (Motherboard Continuum)

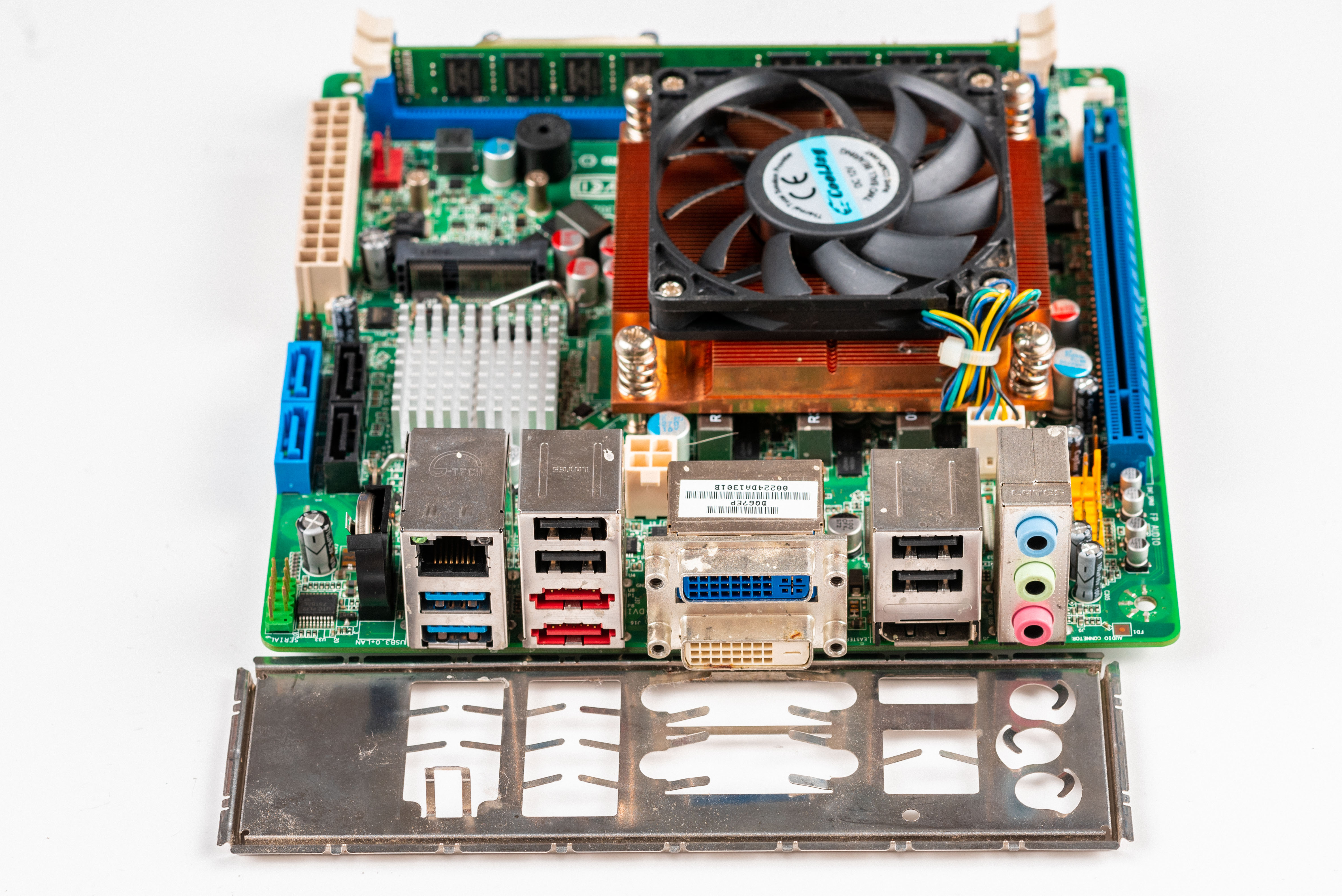

image3 Image 3 of 4 (Motherboard Continuum)

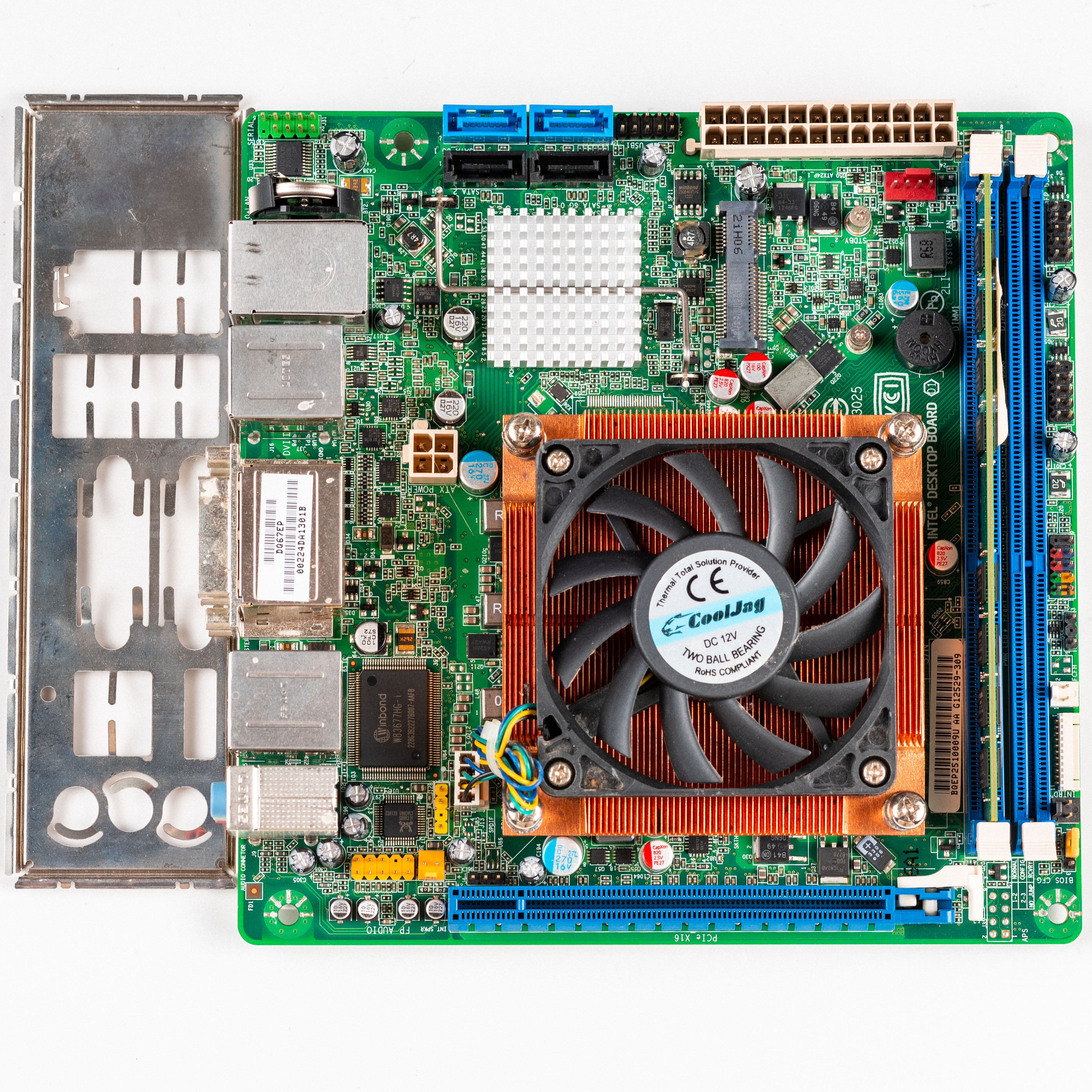

image4 Image 4 of 4 (Motherboard Continuum)
