Intel CU430HX (Cumberland)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
321 mm x 210 mm
ramMax VRAM size
4MB
chipCache
256KB512KB
ramMax RAM size
192MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9) AT auxiliary 3.3v (6-pin P10)
tag Also known as
connI/O ports
1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
PISA
Last updated 2025-11-12T06:40:55Z
Board info score is 9.8/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.06.DK0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.04.DK0K
Note
NEC OEM, "1.00.04.DK0Z" string is also present
Core version
Intel
BIOS version
Logs
POST string
1.00.03.DK08
Note
Toshiba OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.02.DK0K
Note
NEC OEM
Core version
Intel
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.2
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
1.8MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 6 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 11 (Microhouse)
image2 Image 2 of 11 (Rafal Rzeczkowski)
image3 Image 3 of 11 (Necroware)
image4 Image 4 of 11 (Rafal Rzeczkowski)
image5 Image 5 of 11 (Necroware)
image6 Image 6 of 11 (Rafal Rzeczkowski)
image7 Image 7 of 11 (Rafal Rzeczkowski)

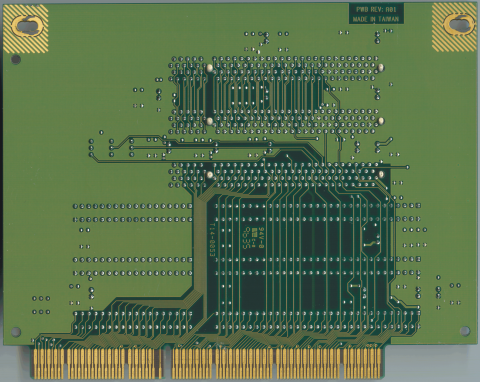

image8 Image 8 of 11 (Rafal Rzeczkowski)
image9 Image 9 of 11 (Rafal Rzeczkowski)
image10 Image 10 of 11 (Necroware)
image11 Image 11 of 11 (Necroware)
