iCOP VDX3-PCI
Logs
chipChipset
cpuSocket
BGA720
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
185mm x 121mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1 GB2 GB
ramRAM type
DDR3
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
CF Card Slot
1x
IDE interface
1x
LVDS
1x
PS/2 keyboard
1x
RJ-45 LAN
1x
SATA I
2x
Serial
2x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
Last updated 2025-05-29T14:47:34Z
Board info score is 6.5/10
chip Chips
-> Network
Realtek RTL8111F (PCIe Gigabit Ethernet)
-> Processor
DM&P (DMP) Vortex86DX3
cpufam CPU family support
Empty
bios No BIOS files available
drv 3 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
10.001.0505.2015
Arch
x86 , x86-64
OS support
Windows 10
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
Arch
x86 , x86-64
OS support
Windows 7
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
Arch
x86 , x86-64
OS support
Windows 8.x
Size
3.6MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2009-12-16
File
Logs
Chip
Release date
2019-04-24
File
Logs
Chip
Release date
2015-05-12
File
Logs
Chip
Release date
2015
File
Logs

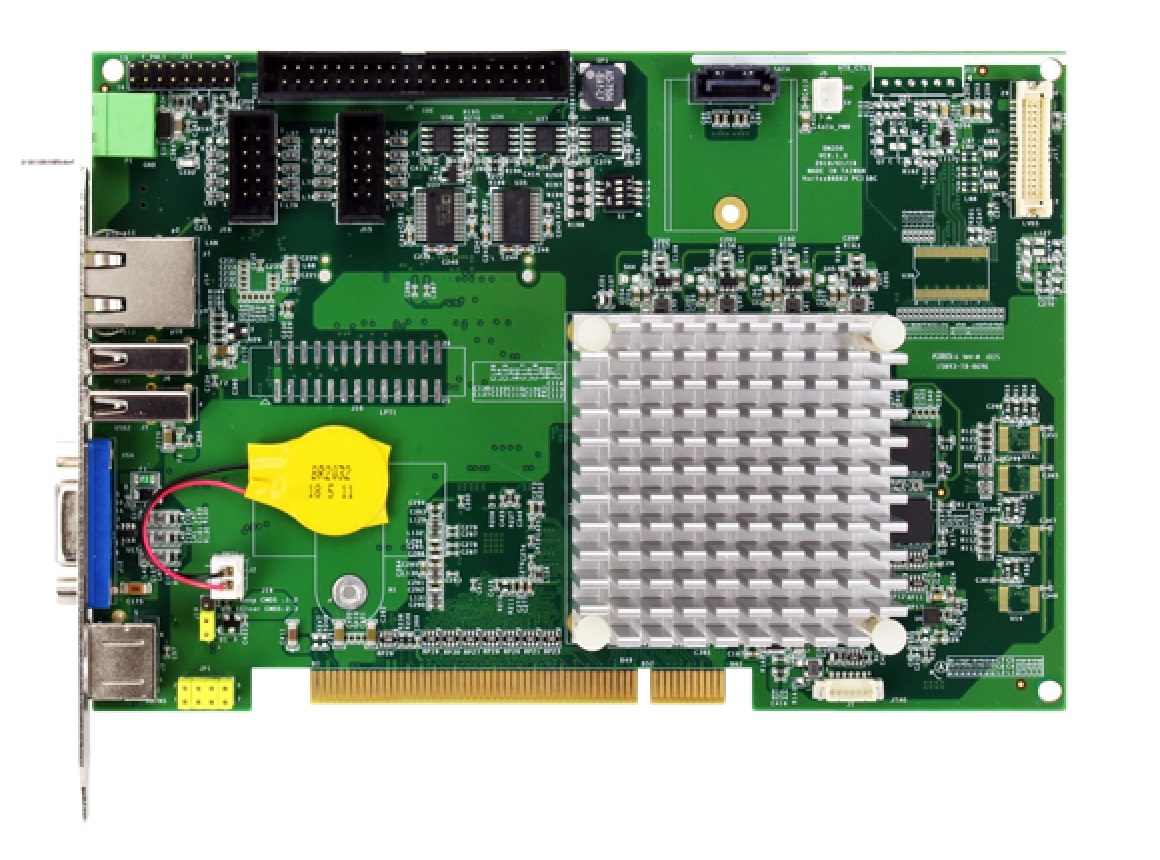

image1 Image 1 of 3 (iCOP)

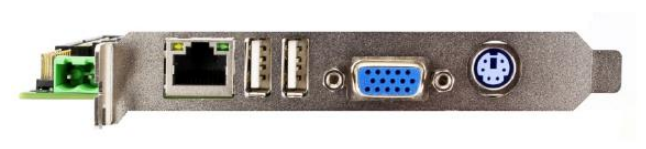

image2 Image 2 of 3 (iCOP)

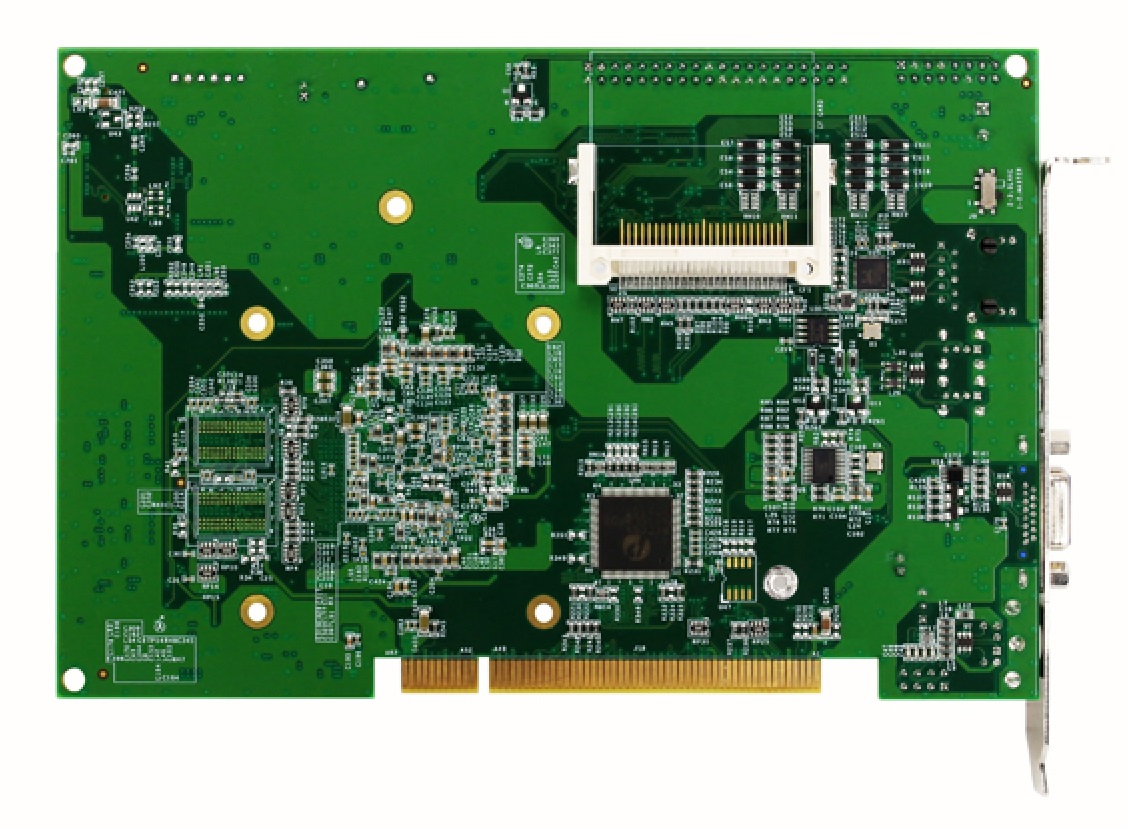

image3 Image 3 of 3 (iCOP)
