Hyundai SUPER 286C (REV. H)

Description

Chips

BIOS 1

Drivers 0

Documentation 1

Logs

Chipset

CHIPS and Technologies CS8220 (PC/AT compatible CHIPSet)

Sockets

FSB speed

10MHz

Form factor

OEM / Proprietary

Dimensions

355mm x 304mm

Cache

None/Integrated in the CPU

Max RAM size

16MB

RAM type

DIP-16 (1bit)

PSU connector

AT (6-pin P8 + 6-pin P9)

Also known as

Hyundai E4008002301

I/O ports

AT Keyboard

Floppy interface

Parallel

Serial

Expansion slots

16-bit ISA

8-bit ISA

Last updated 2023-11-28T14:01:11Z

Board info score is 8/10

Chips

-> Chipset part

CHIPS and Technologies 82A203 (High Address Buffer) CHIPS and Technologies 82A204 (Low Address Buffer) CHIPS and Technologies 82A205 (Data Buffer) CHIPS and Technologies 82C201 (System Controller) CHIPS and Technologies 82C202 (Address Decoder)

-> Floppy ctrl.

NEC uPD765 (Floppy Controller)

-> UART ctrl.

(multiple brand) 16450 (High-speed UART)

CPU family support

0 BIOS files available

Award - 1 entry

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

Note

Core version

BIOS version

Logs

No drivers available

1 board document available

Release date

File

Logs

Release date

File

MTL Jumper manual

Logs

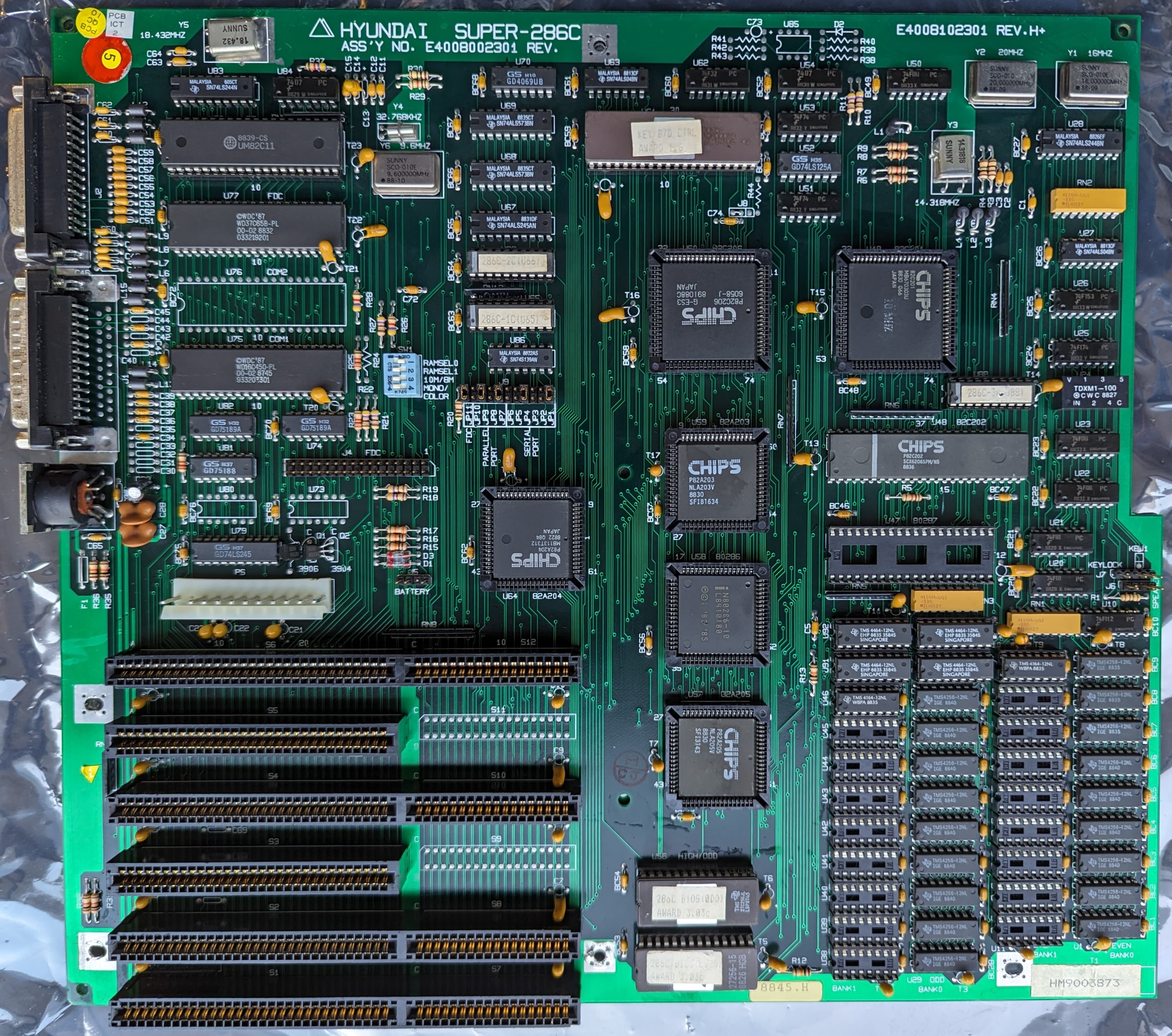

Image 1 of 2 (Microhouse)

Image 2 of 2 (Xourque)
