Chipset
Sockets
FSB speed
Form factor
Dimensions
Max VRAM size
Cache
Max RAM size
RAM type
PSU connector
I/O ports
Expansion slots
Known issues
- Underperforming chipset/board
The motherboard or chipset may deliver subpar performance compared to similar products, which can result in reduced memory bandwidth, poor memory latency, and bad AGP performance. This can negatively impact overall system performance.
- Bumpgate
These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.
On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).
You can see a very detailed explanation of this issue by RIP Felix on YouTube
Notes
Due to chipset limitation PCIe is 8x.
Limited AM2+ CPU support with beta BIOS.
Chips
CPU family support
10 BIOS files available
Award - 10 entries
3 drivers available
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Windows XP/2k3
1 board document available

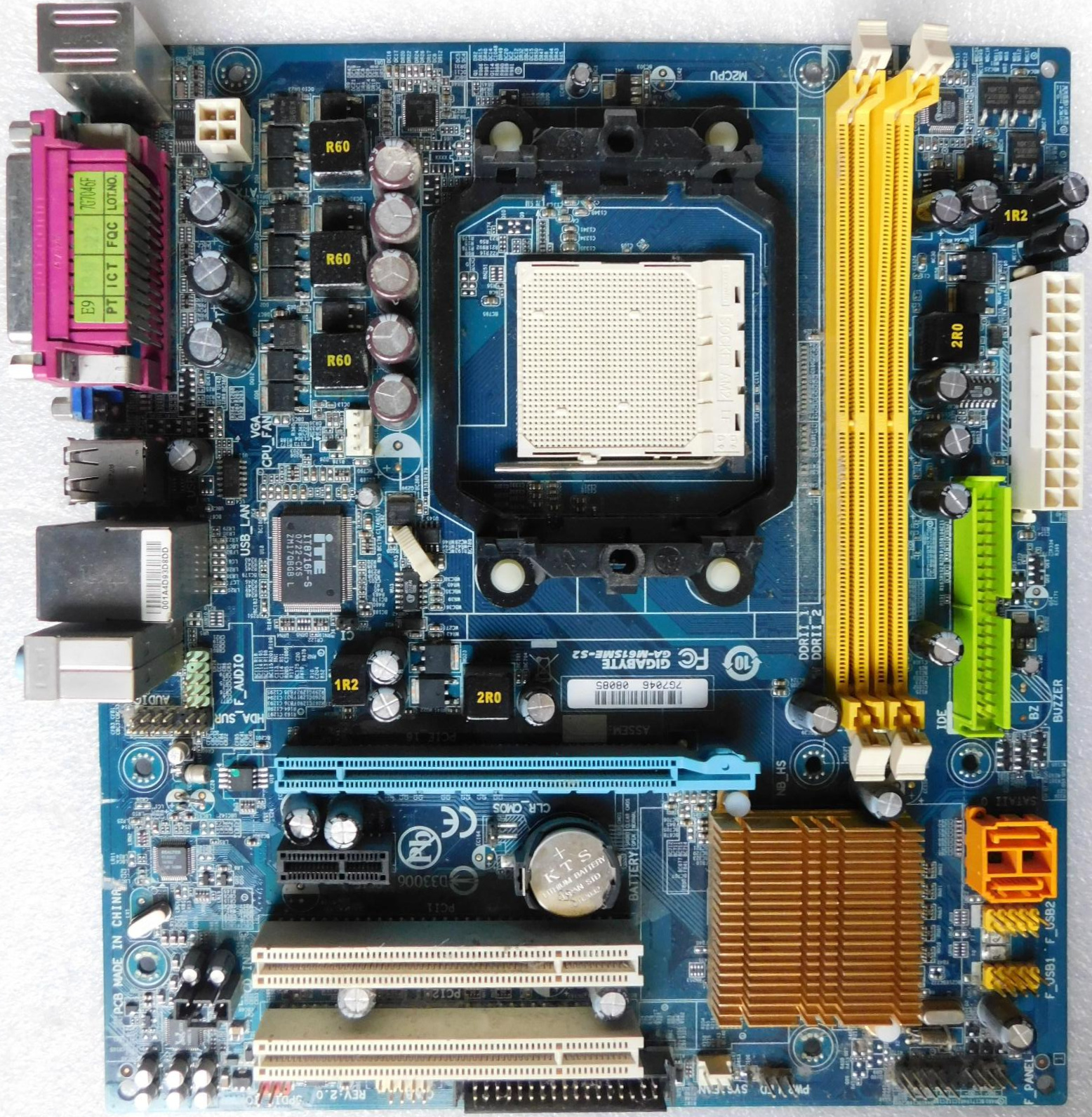

Image 1 of 7 (Gigabyte)

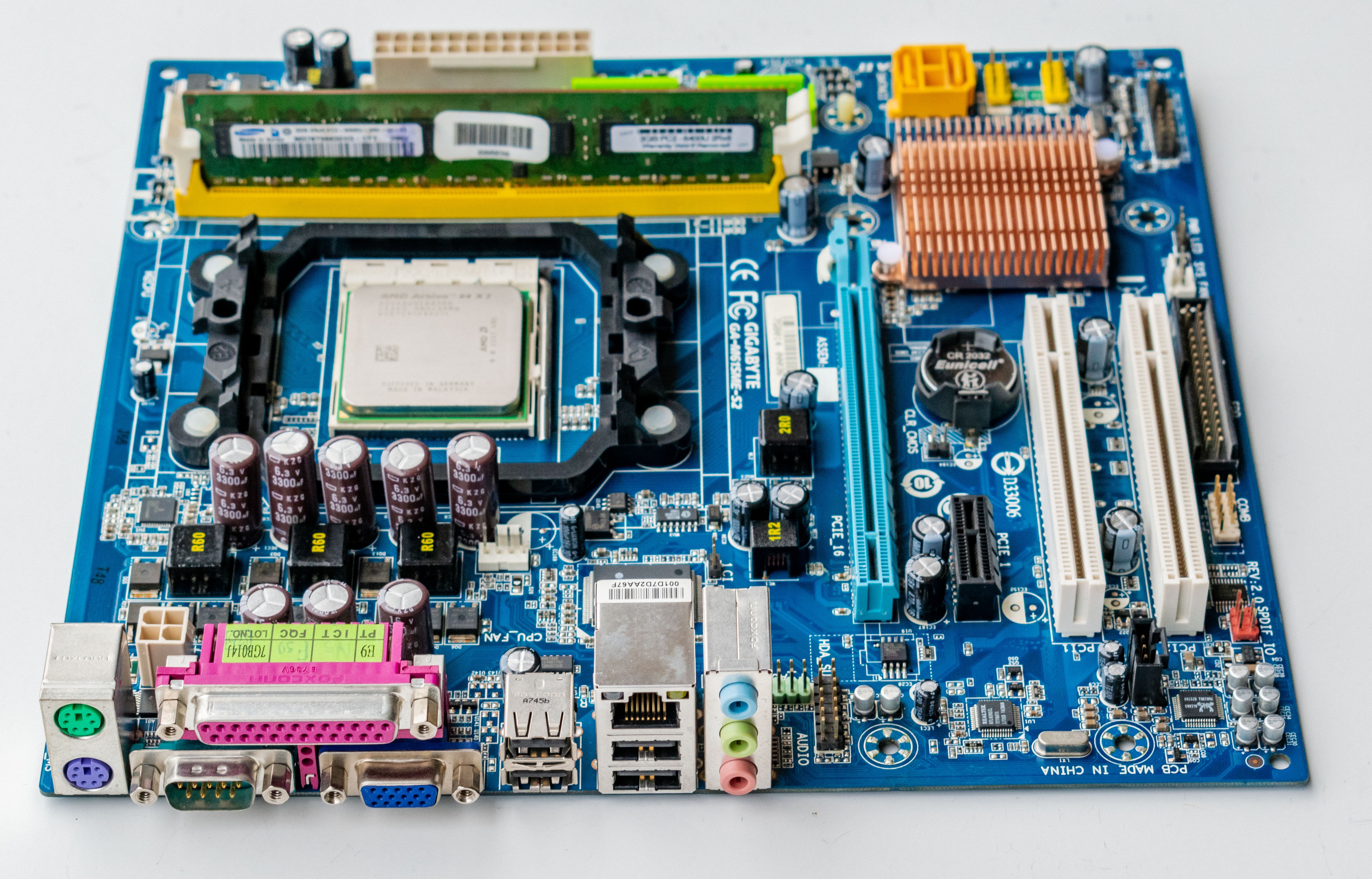

Image 2 of 7 (Motherboard Continuum)

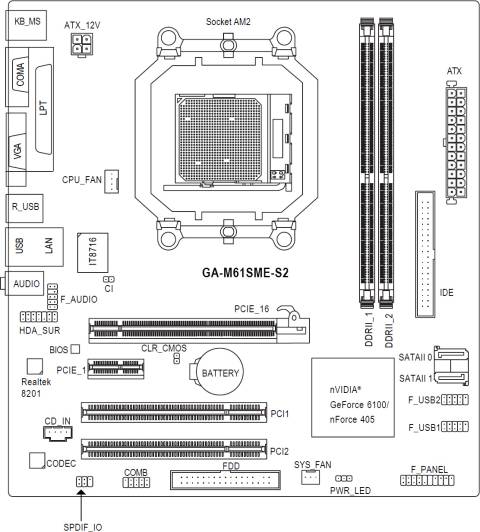

Image 3 of 7 (Gigabyte)

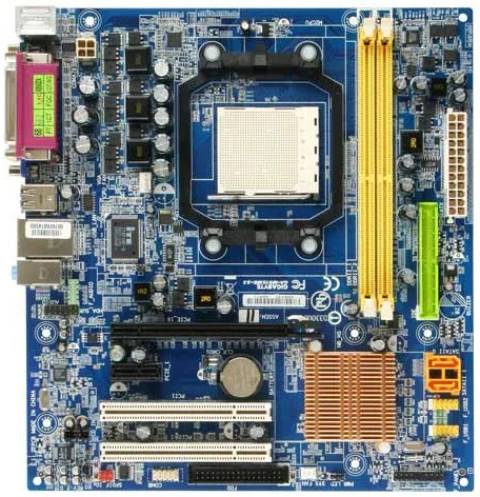

Image 4 of 7

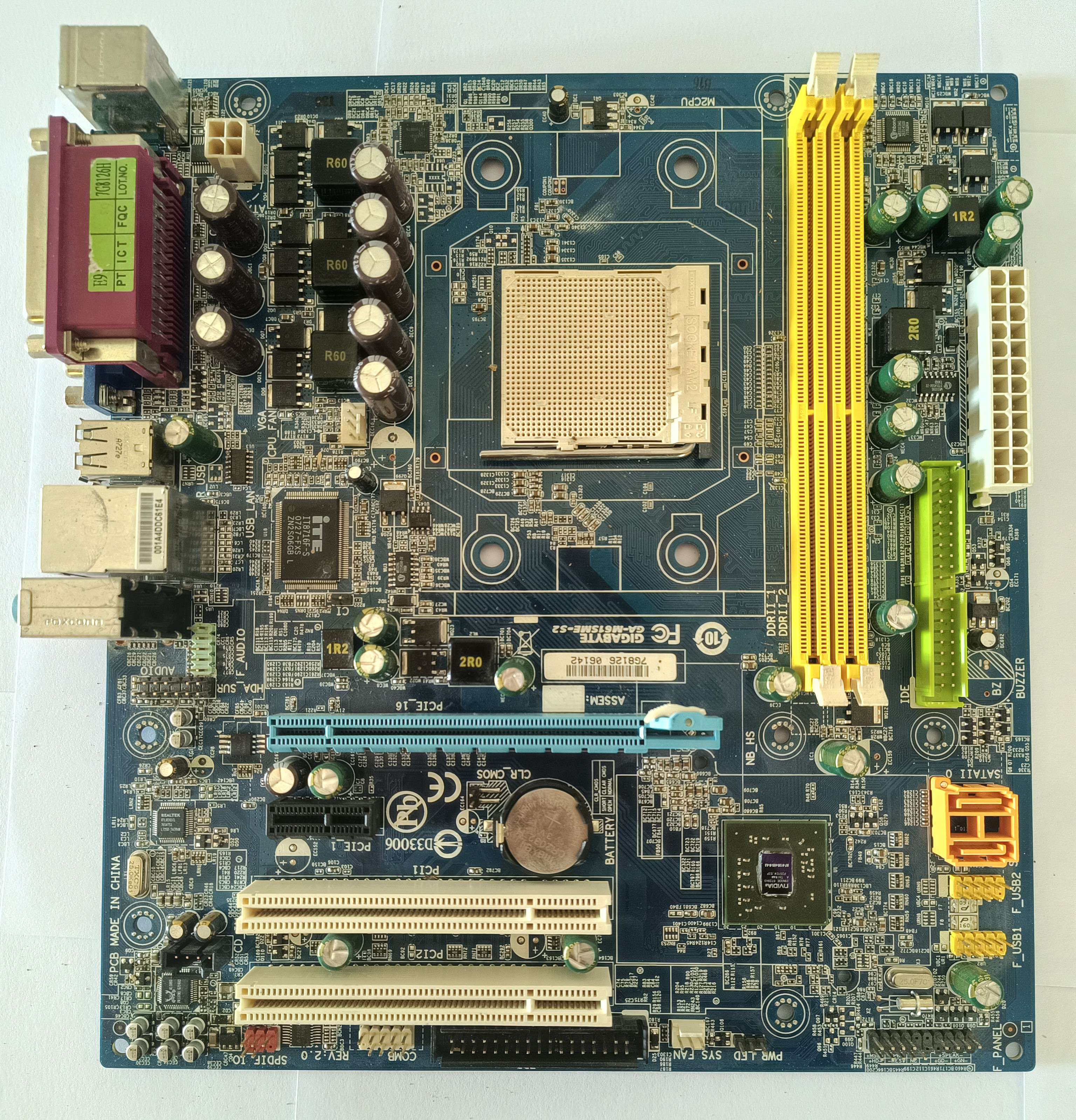

Image 5 of 7 (Shadowdestroyer777)
Image 6 of 7 (Motherboard Continuum)
Image 7 of 7 (Motherboard Continuum)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
