Fujitsu-Siemens D2151-A2
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 x 244 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
wrench Known issues
  • Underpowered VRM

The onboard VRM may not provide sufficient power for certain processors or configurations.

notes Notes

Maximum CPU TDP limits: 65W for Core 2 Duo and Core based Pentiums/Celerons, 95W for Pentium 4 and D and NetBurst based Celerons. CPUs exceeding these limits will not run on this motherboard.

Last updated 2025-07-28T09:35:42Z
Board info score is 8.9/10
bios 7 BIOS files available

vendor Phoenix - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
D2151_A2 04/04/08 13:17:08
Note
Latest version
Core version
cME FirstBIOS V5.00
BIOS version
Logs
POST string
D2151_A2 10/25/07 17:28:46
Note
Core version
cME FirstBIOS V5.00
BIOS version
Logs
POST string
D2151_A2 10/16/07 12:53:00
Note
Core version
cME FirstBIOS V5.00
BIOS version
Logs
POST string
D2151_A2 08/09/07 09:53:34
Note
Core version
cME FirstBIOS V5.00
BIOS version
Logs
POST string
D2151_A2 06/15/07 11:20:52
Note
Core version
cME FirstBIOS V5.00
BIOS version
Logs
POST string
D2151_A2 04/03/07 07:38:06
Note
Core version
cME FirstBIOS V5.00
BIOS version
Logs
POST string
D2151_A2 03/05/07 14:31:04
Note
Core version
cME FirstBIOS V5.00
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
14.32.4
OS support
Windows 2000 Windows XP/2k3
Arch
Size
47.9MB
Filename
Name
Version
14.25.50
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
2007-10
File
Logs
Release date
2009-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-04-15
File
Logs
Chip
Release date
2005-08-25
File
Logs
Chip
Release date
2008
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-06
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs
image1 Image 1 of 2

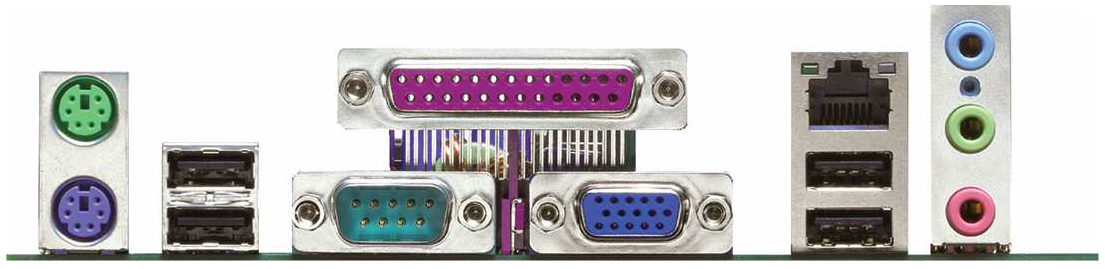

image2 Image 2 of 2
