FIC K8MC51G
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

used in eMachines D3315 H3106 H3304 H3308 T3106 T3304 T3308

Last updated 2023-05-21T23:02:58Z
Board info score is 7.8/10
chip Chips
-> Chipset part
Nvidia MCP51 Nvidia C51 (Crush51)
cpufam CPU family support
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/15/2006-C51MCP51-6A61HF09C-00
Note
eMachines OEM
Core version
6.00PG
BIOS version
Logs
POST string
01/13/2006-C51MCP51-6A61HF09C-00
Note
eMachines OEM
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

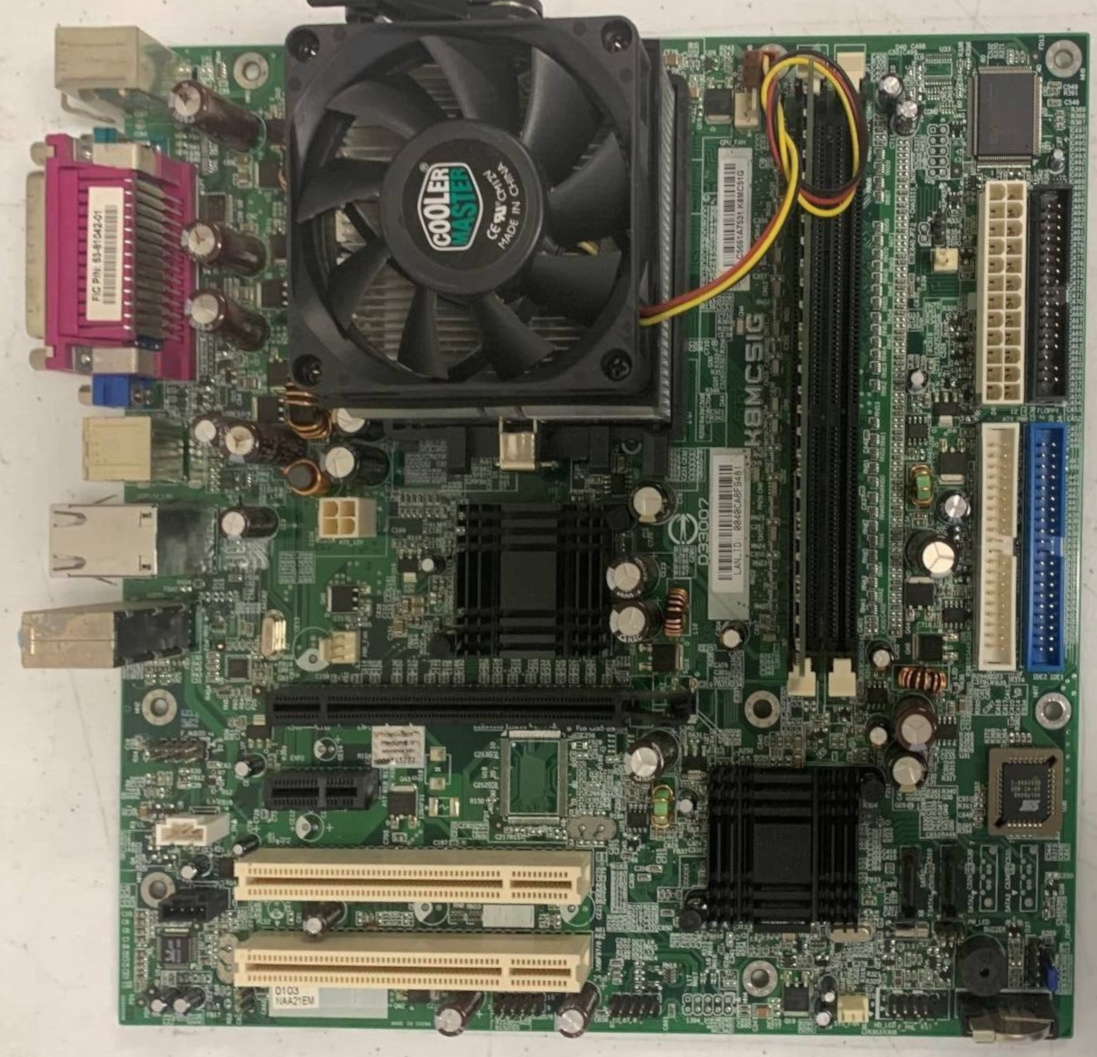

image1 Image 1 of 2

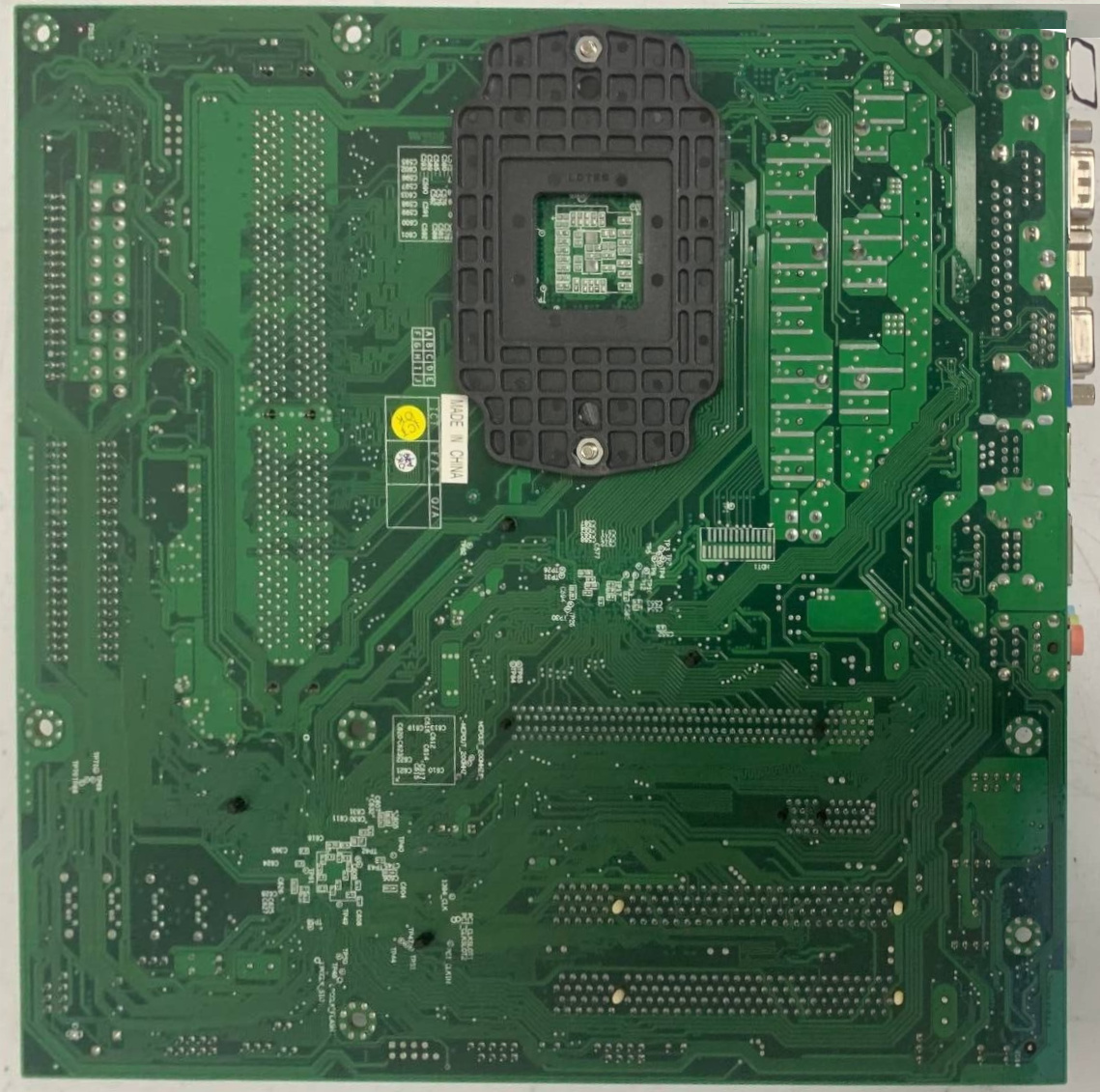

image2 Image 2 of 2
