Faraday FE6400 1.5/1.7
Chipset
Socket
FSB speeds 4.77MHz7.16MHz9.54MHz
Form factorXT (max 216 × 279 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
256KB128KB64KB
RAM type DIP-16 (1bit)
PSU connector
Also known as
- TAVA TAVA PC
I/O ports1x
Parallel
2x
Serial
1x
XT Keyboard
Expansion slots5x
8-bit ISA
Last updated 2025-11-24T10:01:04Z
Board info score is 8.9/10
Chips
-> Chipset part
Intel 8253 (Programmable Interval Timer)
Intel 8255A (PPI)
Intel 8284A (Clock Generator and Driver)
Intel 8288 (Bus Controller)
(multiple brand) Discrete Logic
Intel 8237A (DMA Controller)
Intel 8259A (Programmable Interrupt Ctrl.)
-> Signal transmitter/receiver
-> UART ctrl.
1 BIOS file available
Faraday - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-15
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
File
Logs

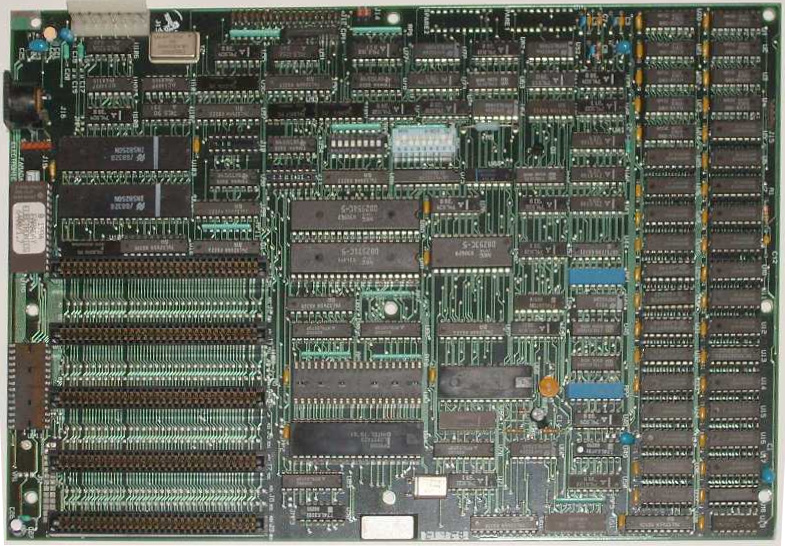

Image 1 of 5 (evasive)

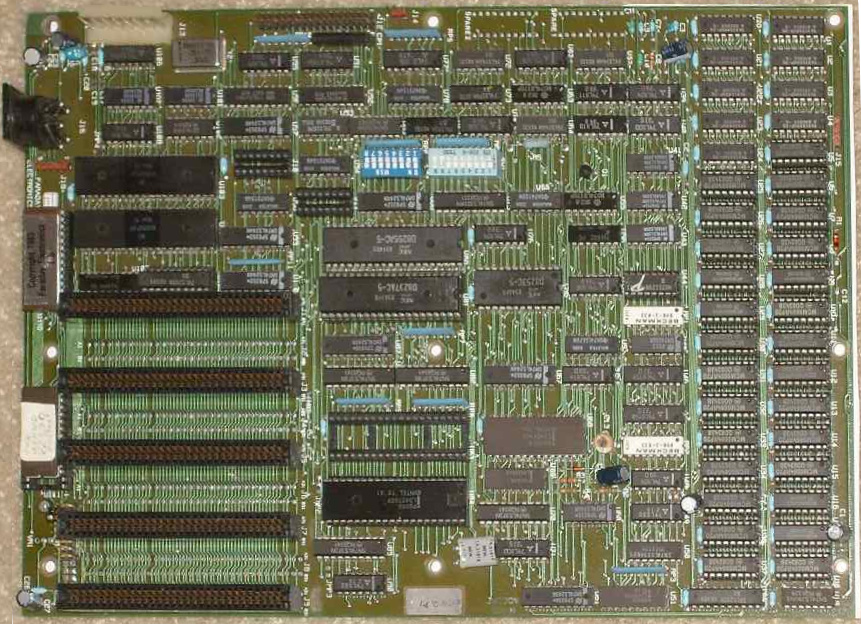

Image 2 of 5 (SomeGuy)

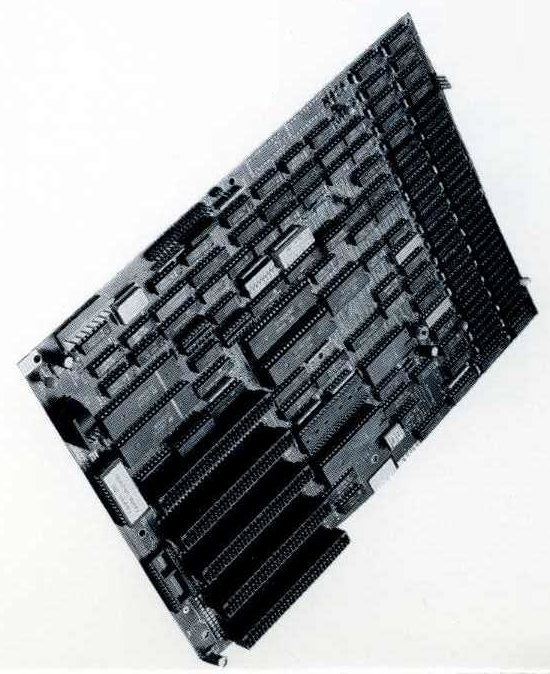

Image 3 of 5 (SomeGuy)
Image 4 of 5 (SomeGuy)

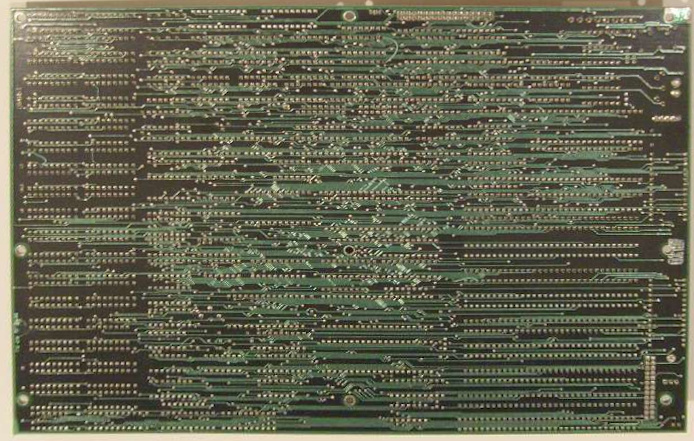

Image 5 of 5
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
