EPoX/ProNiX EP-8KTA3
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 230mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1.5GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
cardExpansion slots
1x
16-bit ISA
6x
32-bit PCI
1x
Universal AGP
notes Notes

Uses optional HPT370 RAID controller.

Last updated 2026-01-04T14:23:57Z
Board info score is 9.6/10
chip Chips
-> Chipset part
VIA VT8363A (KT133A) VIA VT82C686B
-> Audio
VIA VT1611A (AC97)
-> RAID ctrl.
HighPoint HPT370
cpufam CPU family support
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/28/2002-8363A-686B-6A6LMNMEC-00
Note
ENMIC 8TTX+
Core version
6.00PG
BIOS version
Logs
POST string
07/29/2002-8363A-686B-6A6LMPAEC-00
Note
8kt32729.bin
Core version
6.00PG
BIOS version
Logs
POST string
04/09/2003-8363A-686B-6A6LMPAEC-00
Note
8KT33409.BIN
Core version
6.00PG
BIOS version
Logs
drv 16 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
Windows 2000 Windows NT 4.0
Arch
x86
Size
25.2KB
Filename
Name
Version
0.95
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
940.3KB
Filename
Name
Version
1.11.0512
OS support
Windows 9x
Arch
x86
Size
37.6KB
Filename
Name
Version
2.352.7.126
OS support
Windows Vista
Arch
x86 , x86-64
Size
79.4KB
Filename
Name
Version
2.344
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
137.6KB
Filename
Name
Version
4.49V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.4MB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
250.8KB
Filename
Version
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
184.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
x86
Size
19.8KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
20.1KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

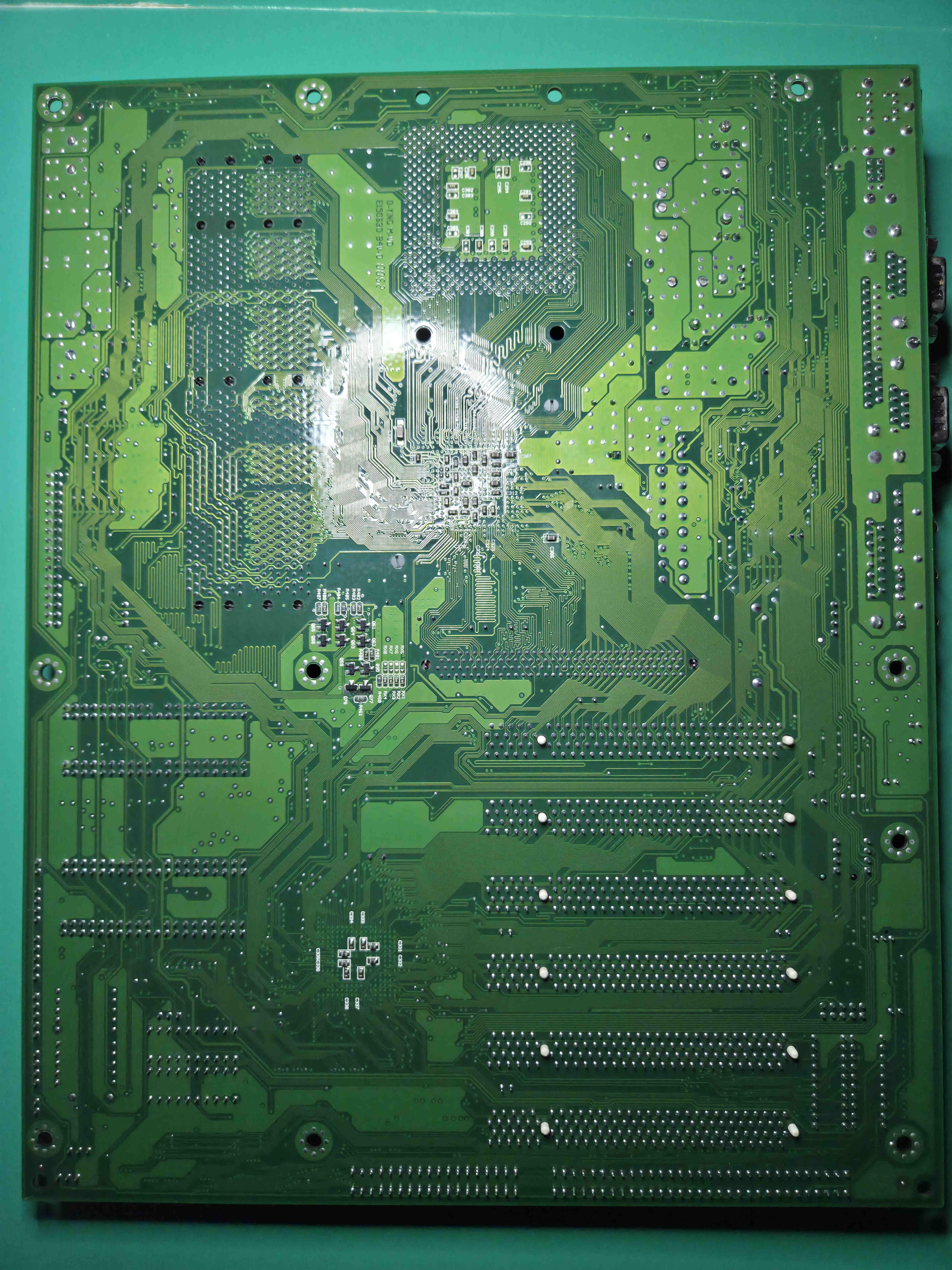

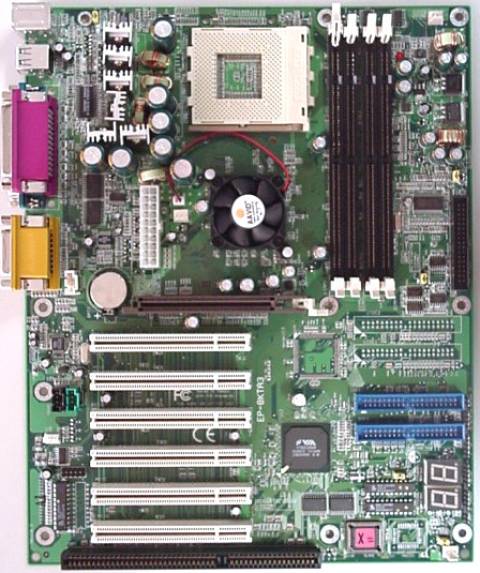

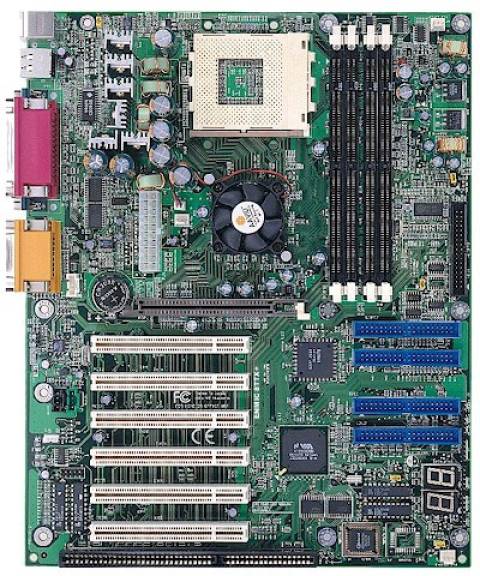

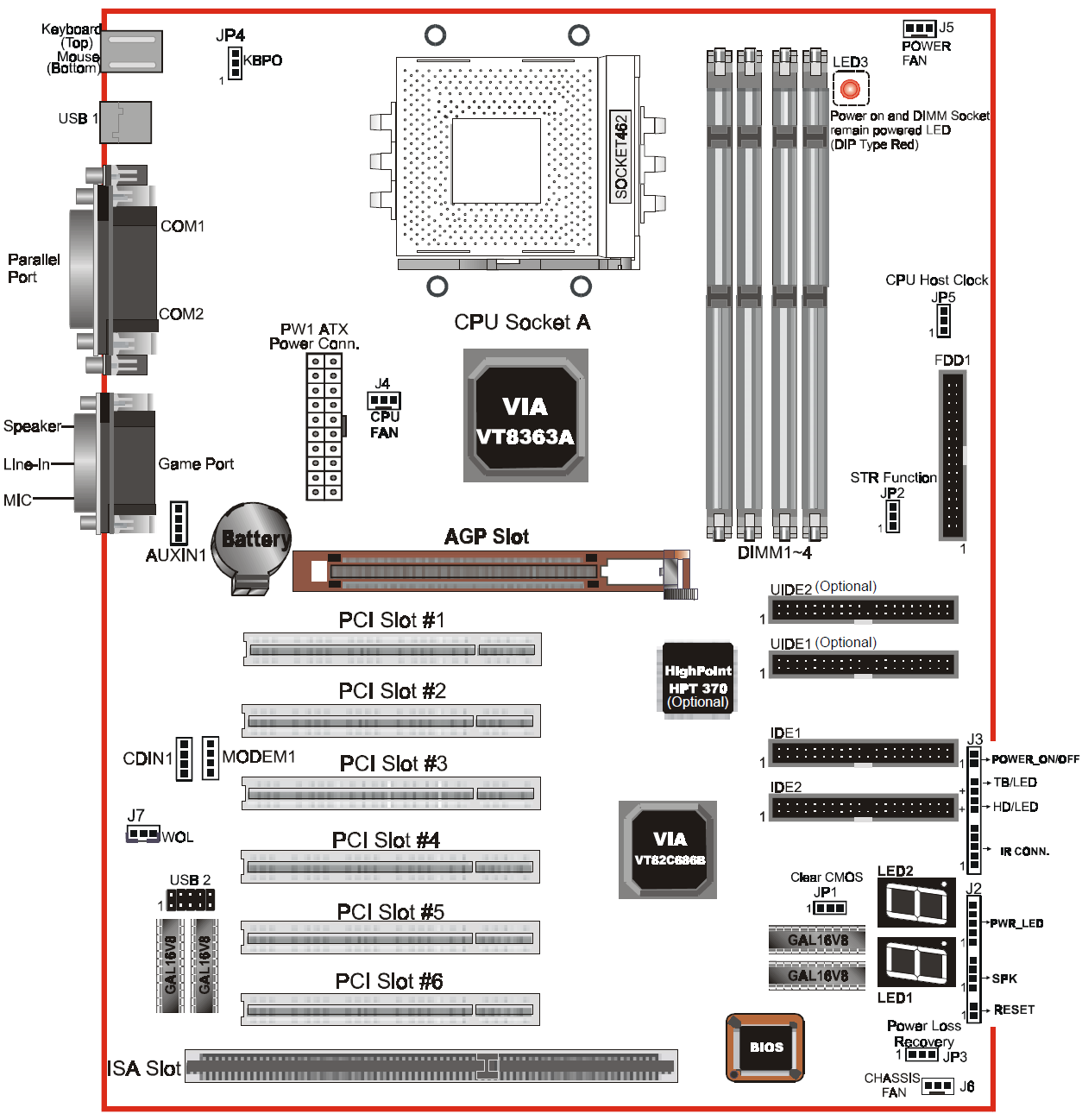

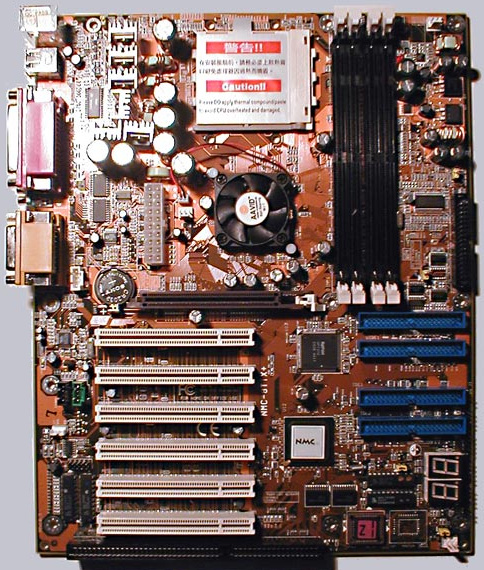

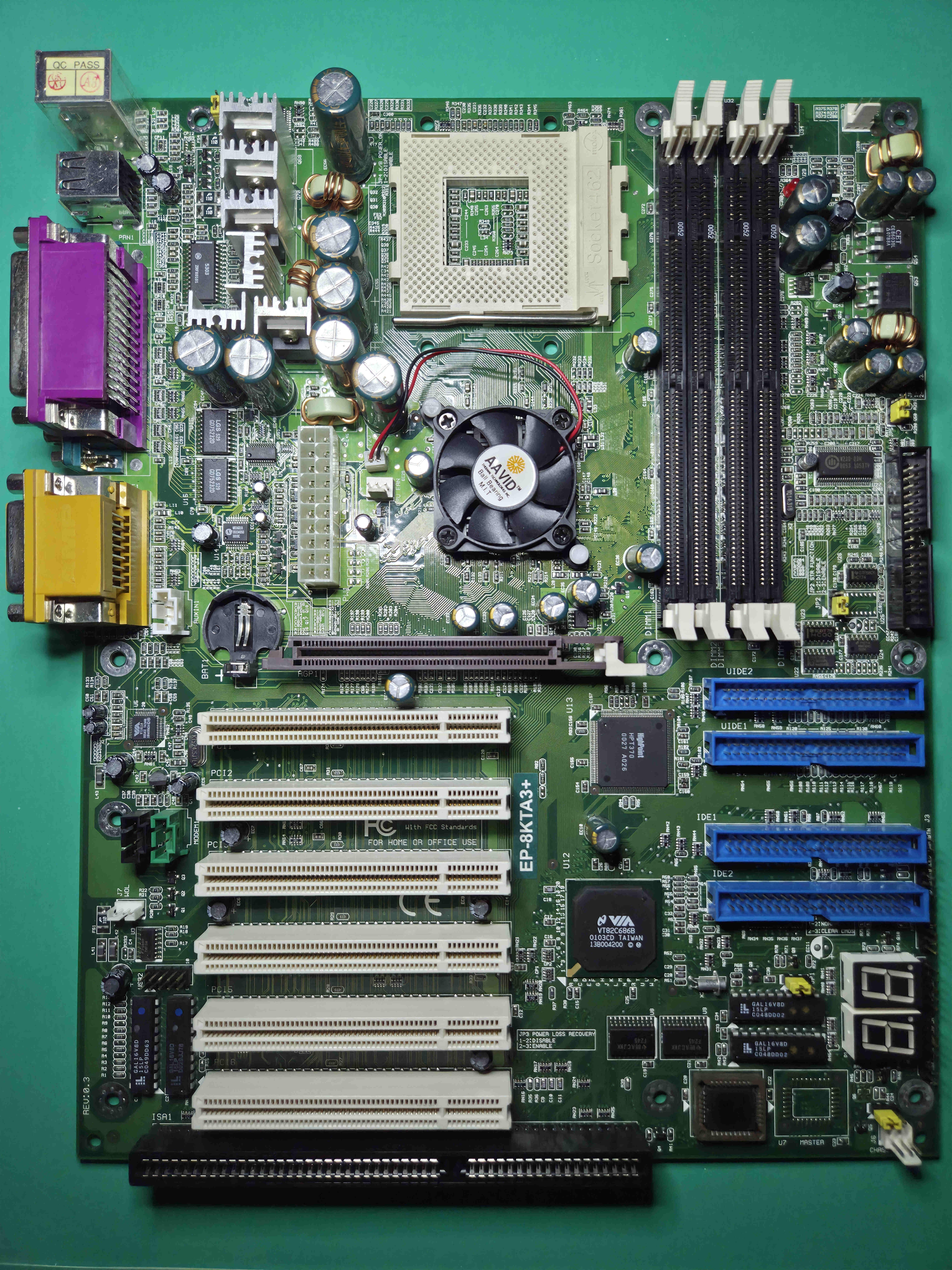

image1 Image 1 of 6 (EPoX/ProNiX)
image2 Image 2 of 6 (ciornyi)
image3 Image 3 of 6
image4 Image 4 of 6
image5 Image 5 of 6
image6 Image 6 of 6 (ciornyi)
