ECS SC58P VIO/S
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
Cache
256KB512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-24T18:41:48Z
Board info score is 9.4/10
Chips
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/26/96-SiS-551X-SMC669-SC58PVIOC-00
Note
Core version
v4.51PG
BIOS version
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.13
OS support
MS-DOS
OS/2 Warp 3.x
OS/2 Warp 4.x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
6.8MB
Filename
Version
OS support
MS-DOS
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
7MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

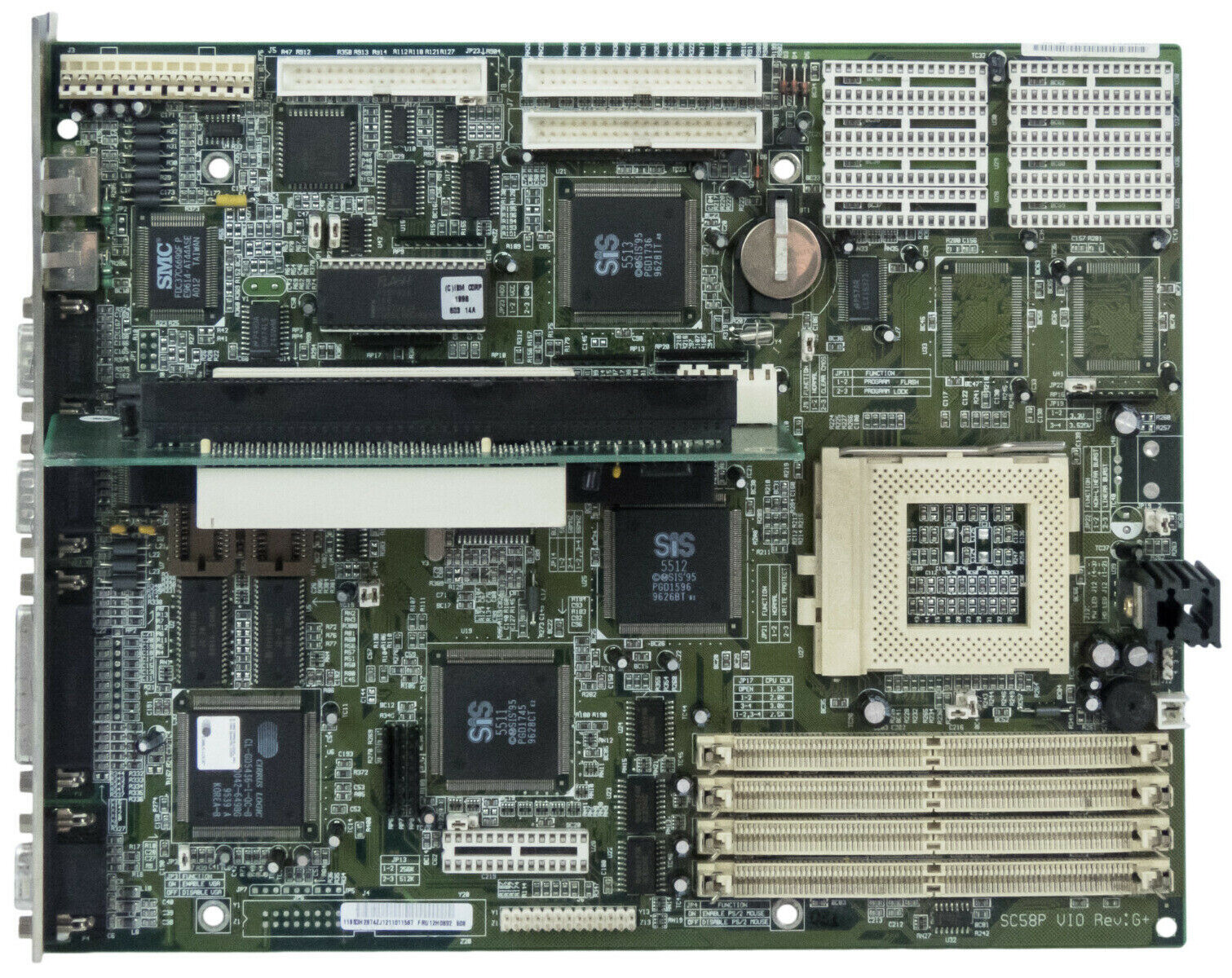

Image 1 of 2 (Microhouse)
Image 2 of 2
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
