ECS MCP61M-M3 V7.0
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 214mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type DDR3 UDIMM
PSU connector
Also known as
- ECS MCP61M-M3 V:7.0
I/O ports1x
3.5mm Audio Combo
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
No board specific known issues
- Bumpgate
These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.
On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).
You can see a very detailed explanation of this issue by RIP Felix on YouTube
Notes
- Realtek 8201EL-GR 10/100Mbps Fast Ethernet Controller
- optional Realtek 8211CL-GR Gigabit Fast Ethernet Controller
Last updated 2025-12-05T12:01:33Z
Board info score is 8.2/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
2 BIOS files available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-001131-00101111-110310-ATHLON64-1AAAA000
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-001131-00101111-061010-ATHLON64-1AAAA000
Note
Core version
080015
BIOS version
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12-29
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs

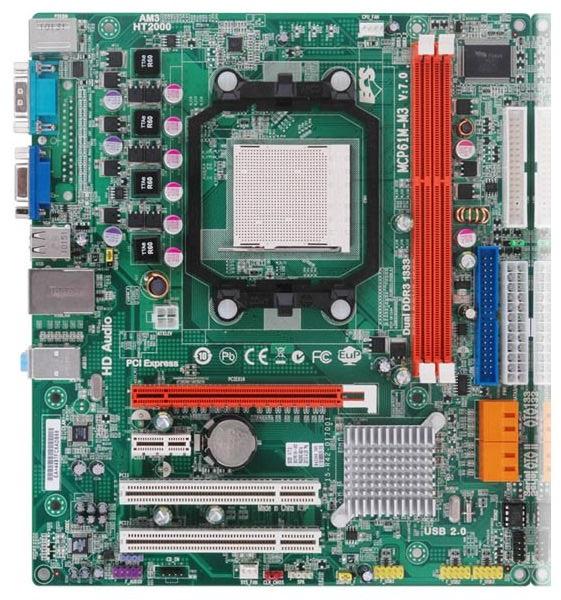

Image 1 of 1 (ECS)
