ECS ID-PCM8E Rev: 1.0A
Chipset
Socket
FSB speeds 400MHz800MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions228mm x 190mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- ECS 15-Q25-011011
- ECS 15-Q25-011013
- ECS 15-Q25-011014
- VIA PC-1 Board (PC3500+)
- Simmtronics ID-PCM8E Rev: 1.0A (PC3500)
- phitronics ID-PCM8E Rev: 1.0A (PC3000E+)
I/O ports1x
3.5mm Audio Combo
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
PCIe x16
Notes
Board can come with an optional RJ-45 Port
Last updated 2025-07-05T00:06:37Z
Board info score is 9/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> Network
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-009999-00101111-042709-CN896-1ADTU002
Note
Phitronics PC3000E+ 1.X
Core version
080014
BIOS version
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
5.24A
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
12.7MB
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
15.56.68.06
OS support
Windows 9x
Arch
Size
6.2MB
Filename
Name
Version
5.40A
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
, x86-64
Size
10.8MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

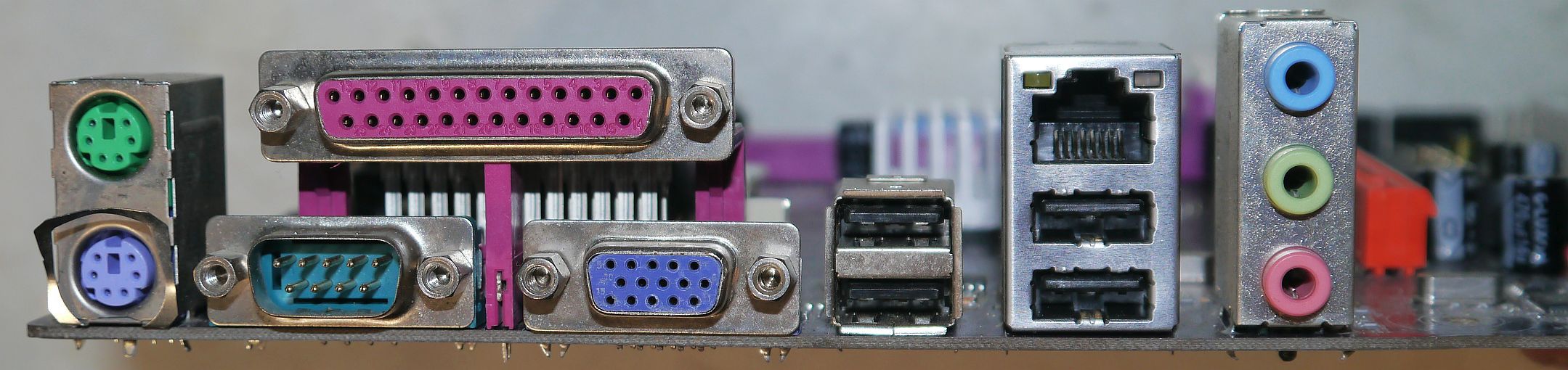

Image 1 of 3 (LixAudio)

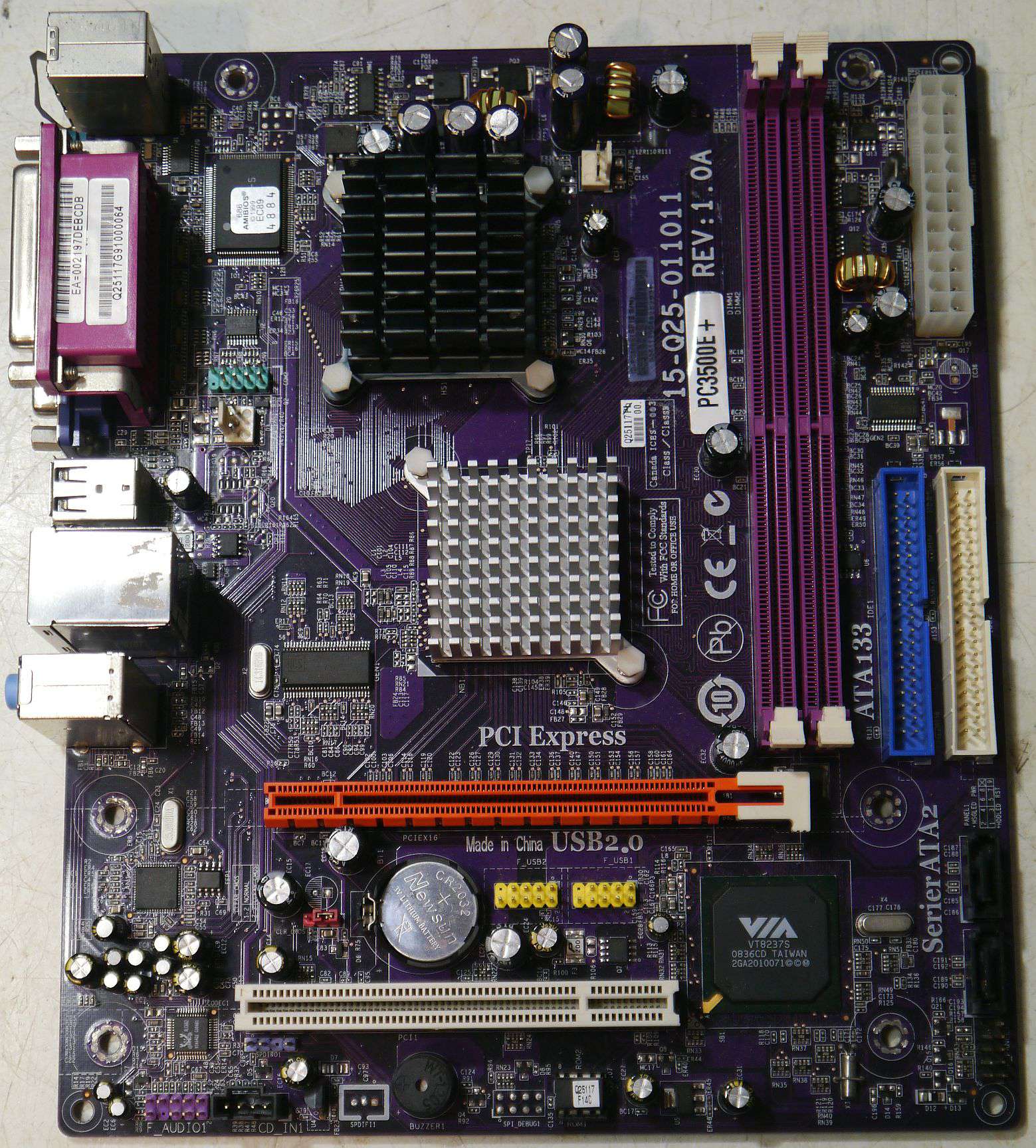

Image 2 of 3 (LixAudio)

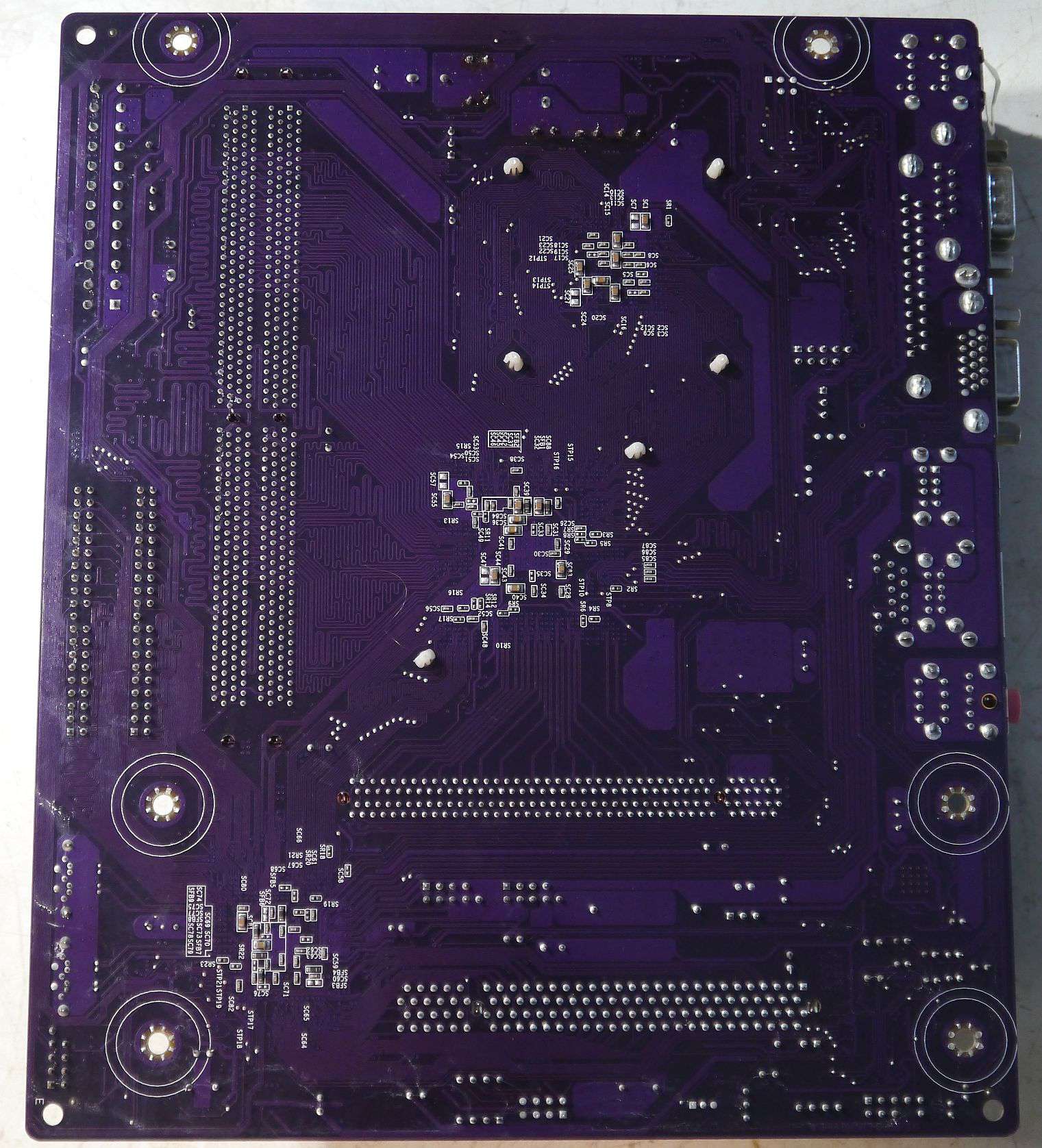

Image 3 of 3 (LixAudio)
