DTK PAM-0036S
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 330mm
Max VRAM size2MB
Cache
256KB512KB1MB
Max RAM size
512MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Also known as
- Gemlight GMB-P54SPV
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Last updated 2025-09-03T17:39:45Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Signal transmitter/receiver
-> Super I/O
-> Video
CPU family support
1 BIOS file available
Award - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/26/96-SiS-5511-5513-2A5IDG3AC-00
Note
Core version
4.50PG
BIOS version
1.06
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows 9x
Windows NT 3.1
Arch
x86
Size
5.5MB
Filename
Name
Version
2.13
OS support
MS-DOS
OS/2 Warp 3.x
OS/2 Warp 4.x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
Size
Empty
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

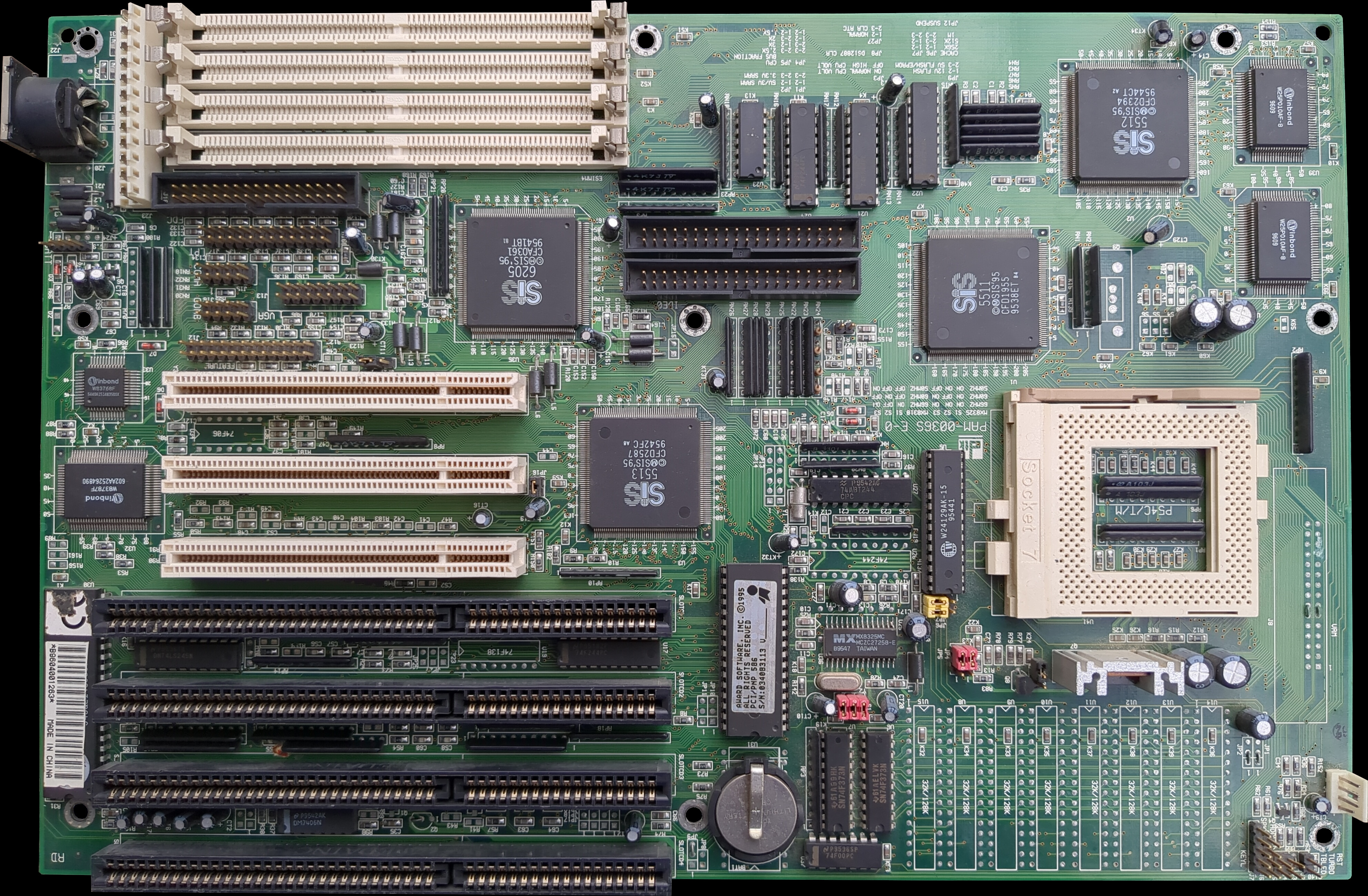

Image 1 of 3 (evasive)

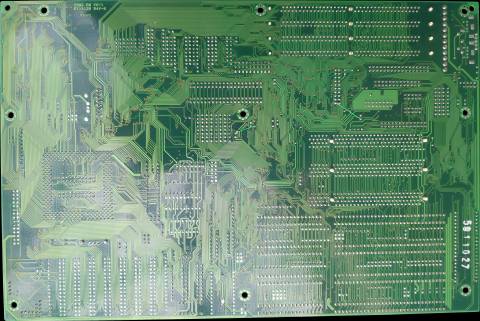

Image 2 of 3 (scrapcomputing)

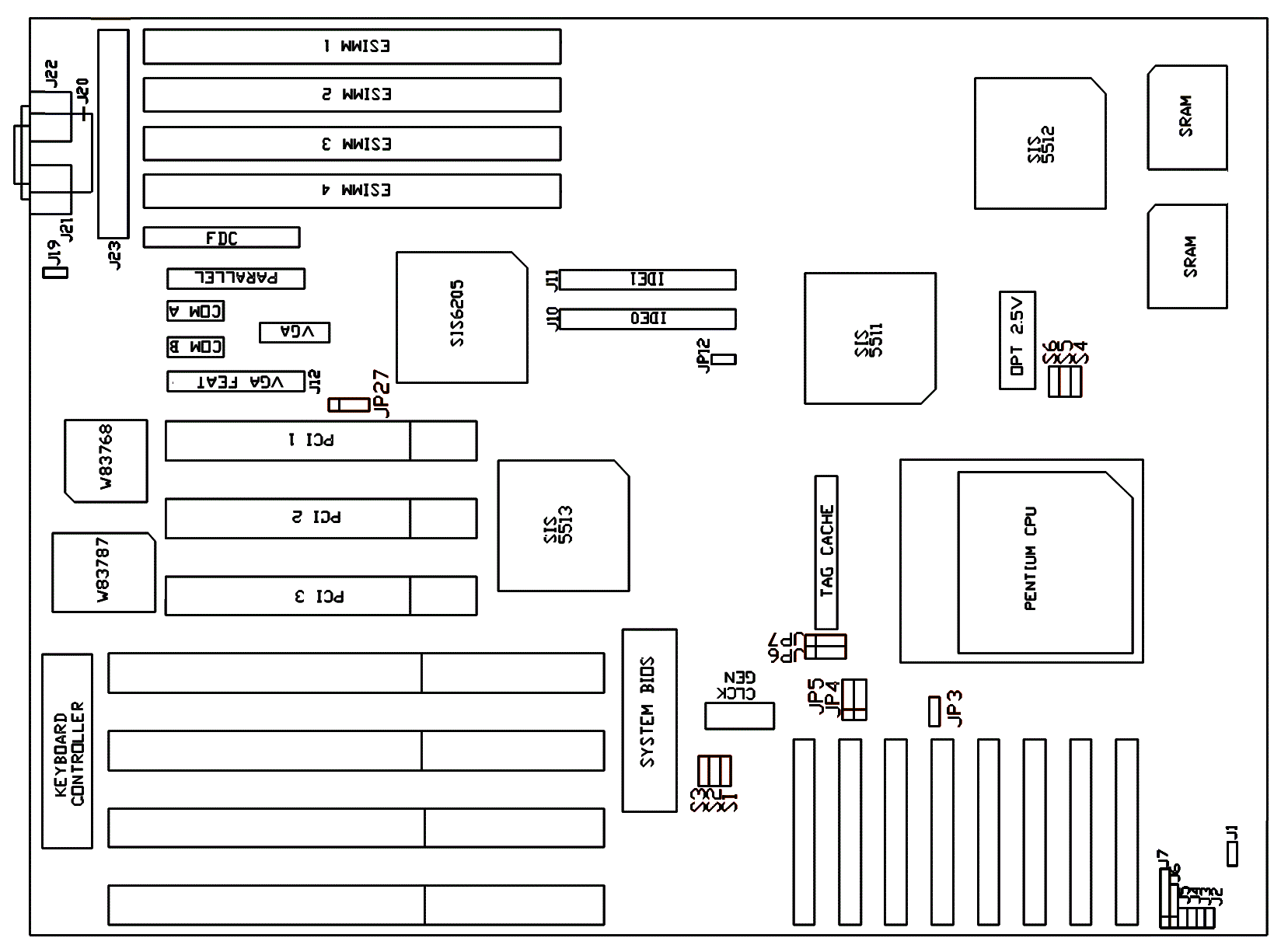

Image 3 of 3 (scrapcomputing)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
