DTK PAM-0035S
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
256KB512KB1MB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
4x
32-bit PCI
Last updated 2025-12-12T12:24:17Z
Board info score is 9.6/10
chip Chips
-> Chipset part
SiS 5501 (PCMC) SiS 5502 (PLDB) SiS 5503 (PSIO)
-> Clock Synth / PLL
Macronix MX8318
-> Human Interface
(multiple brand) 8042 (Keyboard Controller)
-> IDE ctrl.
Winbond W83769F (PCI IDE ctrl.)
-> Real-Time Clock
Dallas DS12887A
-> Signal transmitter/receiver
Winbond W83768F (I/O coupler)
-> Super I/O
Winbond W83787IF
cpufam CPU family support
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/03/1999-SiS-5501-5503-2A5ICG3AC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/13/95-SiS-5501-5503-2A5ICG3A-00
Note
Core version
4.51PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.11
OS support
MS-DOS OS/2 Warp 3.x Windows NT 3.5x
Arch
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (Elke Wehmer)

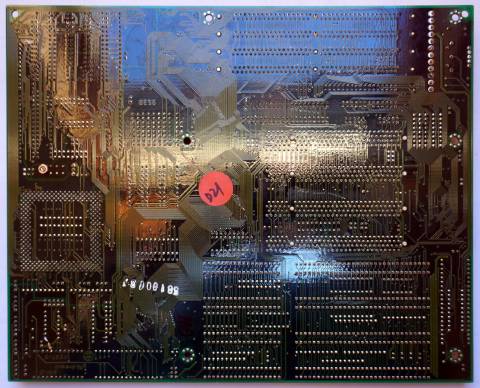

image3 Image 3 of 3 (Elke Wehmer)
