DFI ITOX SR100-N (GME965)
Logs
chipChipset
cpuSocket
Socket P (mPGA478MN)
speedFSB speeds
533MHz800MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170 mm x 170 mm
ramMax VRAM size
384MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
3x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
Last updated 2023-11-03T15:49:01Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/20/2009-Crestline-6A79nD4AC-00
Note
Core version
6.00PG
BIOS version
Logs

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-009999-00101111-022008-Crestline-1ADJS013
Note
Core version
080014
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

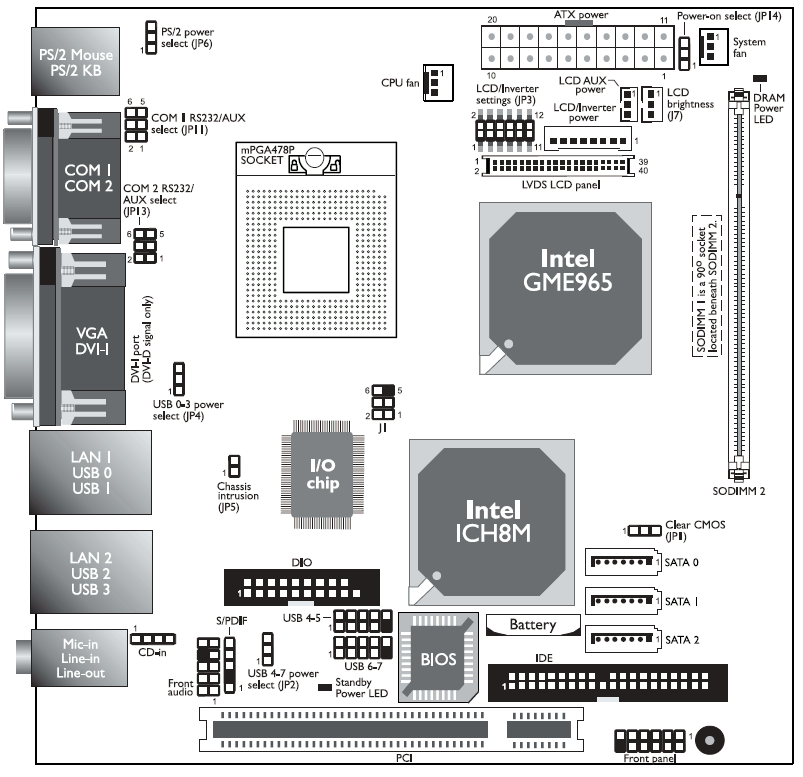

image1 Image 1 of 2 (evasive)

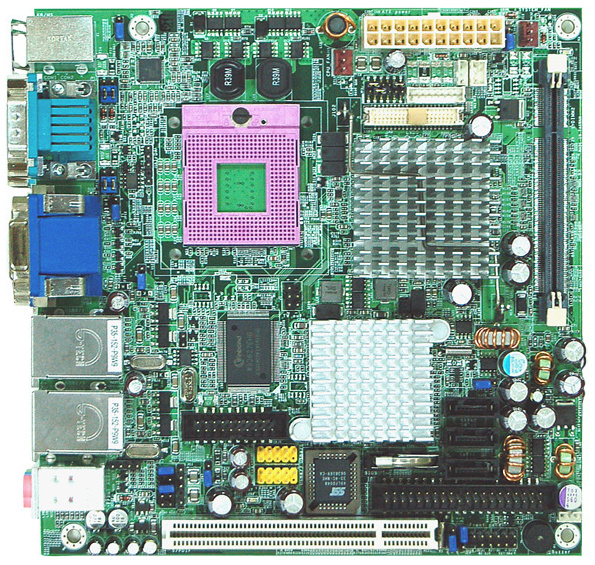

image2 Image 2 of 2
