DFI ITOX EL332-IP
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
800MHz1066MHz1333MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 mm x 244 mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
DVI
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
4x
RJ-45 LAN
8x
SATA II
4x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-08-11T11:44:48Z
Board info score is 8.1/10
bios 0 BIOS files available
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.42.15
OS support
Windows XP/2k3
Arch
x86
Size
9.3MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0.65.1
OS support
Windows 7
Arch
x86 , x86-64
Size
6.9MB
Filename
Name
Version
1.3.10.0
OS support
Windows 9x
Arch
x86
Size
126.6KB
Filename
Name
Version
1.2.9.0
OS support
Windows Vista Windows XP/2k3
Arch
Size
377.5KB
Filename
Name
Version
1.3.11.0
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
Size
132.2KB
Filename
Name
Version
1.5.20.3
OS support
Windows Vista Windows XP/2k3
Arch
Size
266.7KB
Filename
Name
Version
1.5.20.3
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86
Size
216.5KB
Filename
Name
Version
1.0.20.0
OS support
Linux Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
14.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7
Arch
x86-64
Size
251.5KB
Filename
Version
OS support
Windows 7
Arch
x86
Size
241KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
Arch
x86
Size
44.9KB
Filename
Version
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-04-15
File
Logs
Chip
Release date
2005-08-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2010-03
File
Logs
Chip
Release date
2010-07
File
Logs
Chip
Release date
2008-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-01-12
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Chip
Release date
2009
File
Logs
Chip
Release date
2008-08-14
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2007-04-10
File
Logs
Chip
Release date
2007-01-31
File
Logs
Chip
Release date
2009-07-09
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2009-06
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs
image1 Image 1 of 3 (DFI)

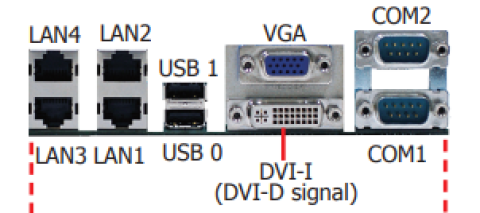

image2 Image 2 of 3 (DFI)

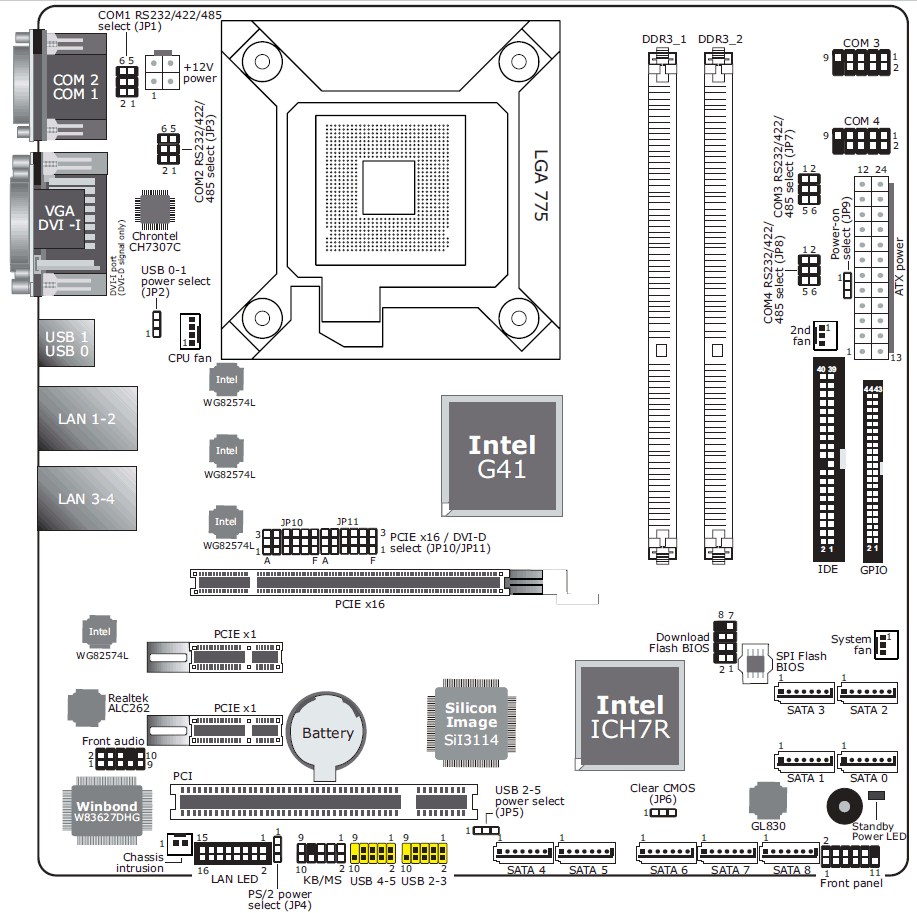

image3 Image 3 of 3 (DFI)
