Dell 0YY821
Logs
Chipset
Socket
FSB speed Empty
Form factorMicro BTX / uBTX (max 264 × 267 mm)
DimensionsEmpty
Max VRAM size128MB
Cache
None/Integrated in the CPU
Max RAM size
4GB(DDR2-800)
RAM type DDR2 UDIMM
PSU connector
Also known as
- Dell Dimension C521
- MiTAC/Trigon 316754000202
- MiTAC/Trigon PWA-KM10NBU-D-AS
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Parallel
1x
RJ-45 LAN
3x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Notes
Manufactured by MiTAC for Dell
Last updated 2025-10-22T07:55:32Z
Board info score is 9.3/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.60
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
, x86-64
Size
182.3KB
Filename
Name
Version
6.10.20001.0
OS support
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
26.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

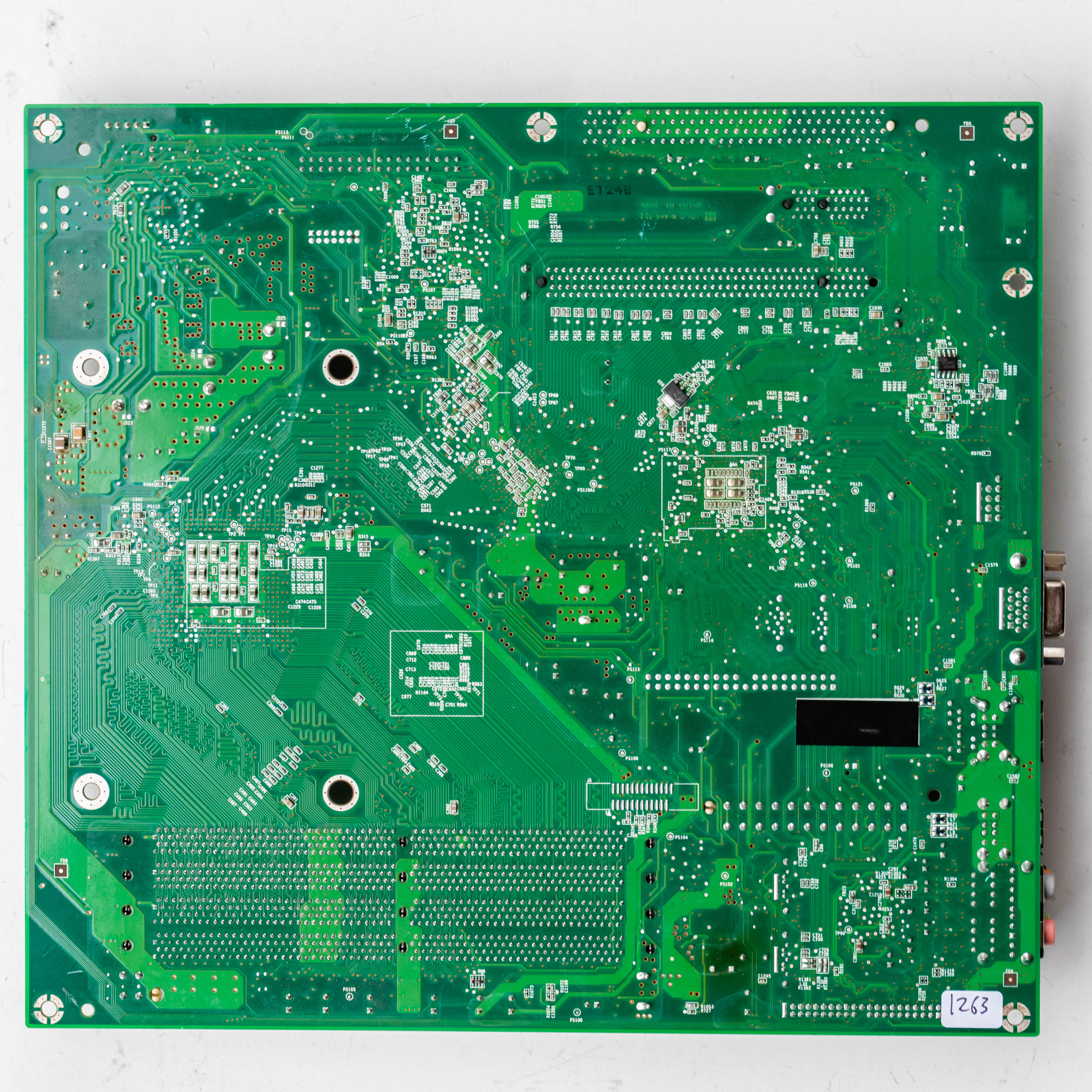

Image 1 of 4

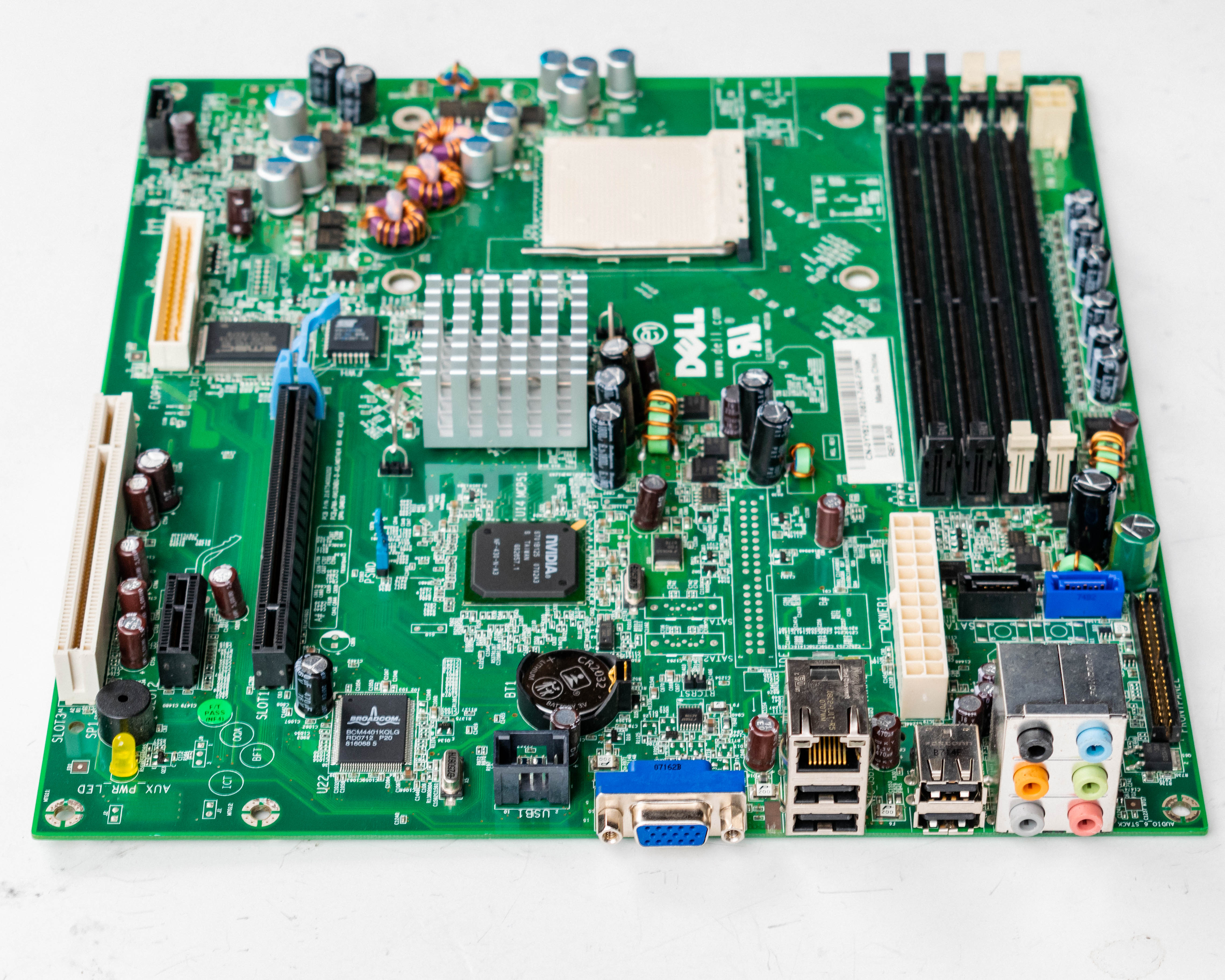

Image 2 of 4 (Motherboard Continuum)

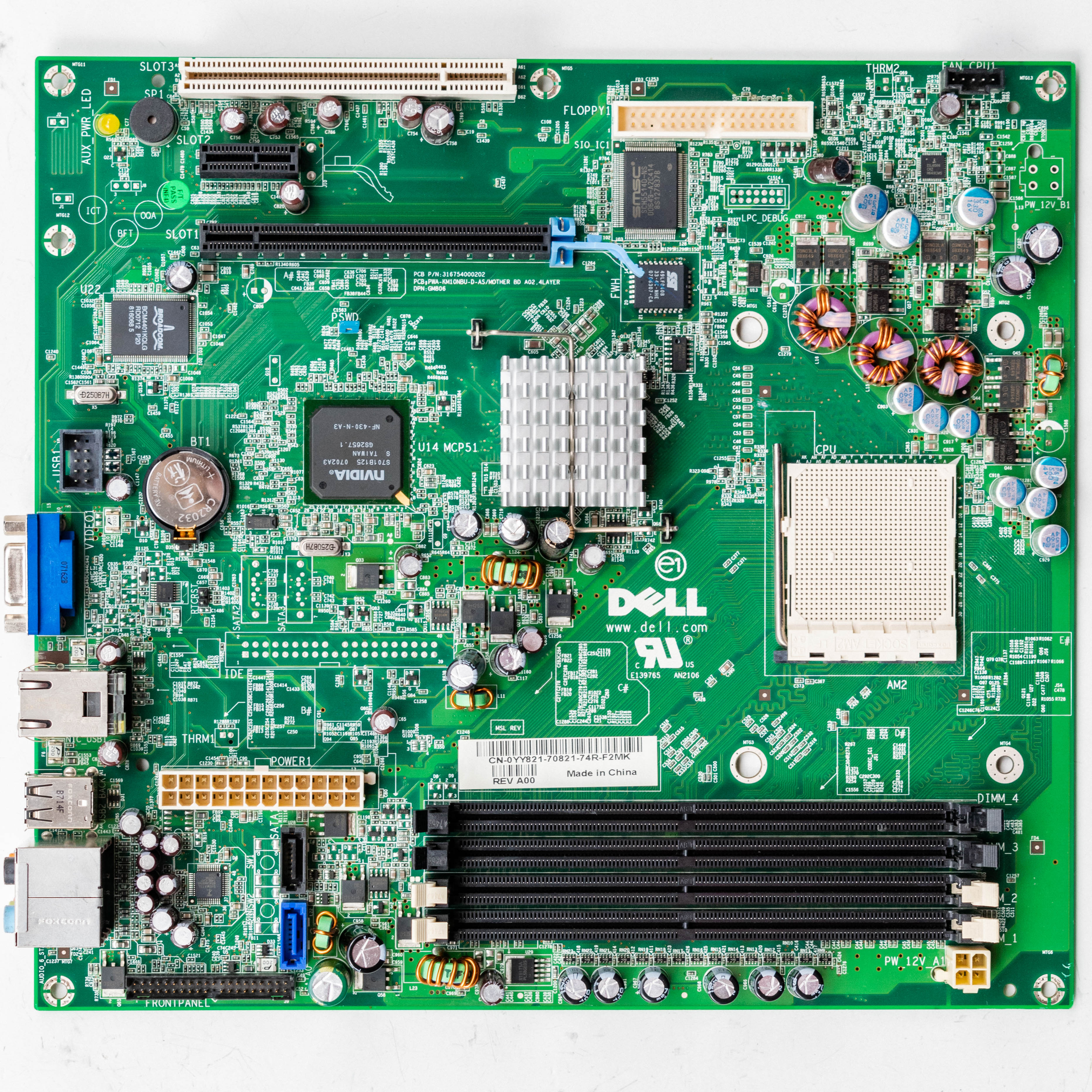

Image 3 of 4 (Motherboard Continuum)

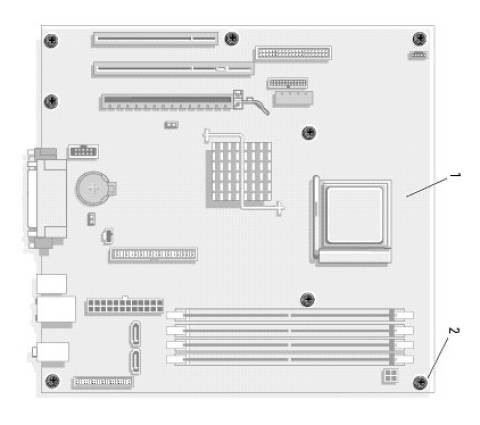

Image 4 of 4 (Motherboard Continuum)
