Dell 0YP806
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
Micro BTX / uBTX (max 264 × 267 mm)
dimDimensions
Empty
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

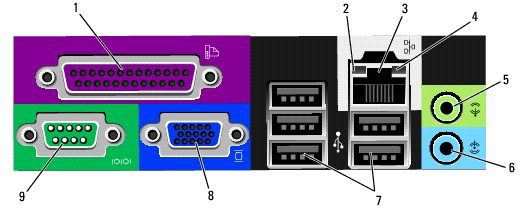

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Parallel
1x
RJ-45 LAN
3x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x16
notes Notes

Manufactured by MiTAC for Dell

Exists in 8MB and 4MB NVRAM variants.

Last updated 2025-10-22T07:59:17Z
Board info score is 9.5/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/11/2007-C51MCP51-6A61HM39C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

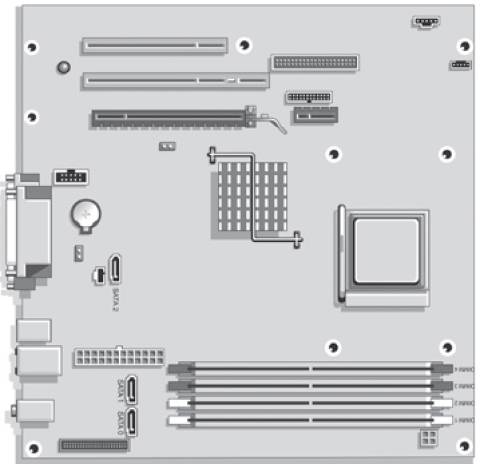

image1 Image 1 of 8

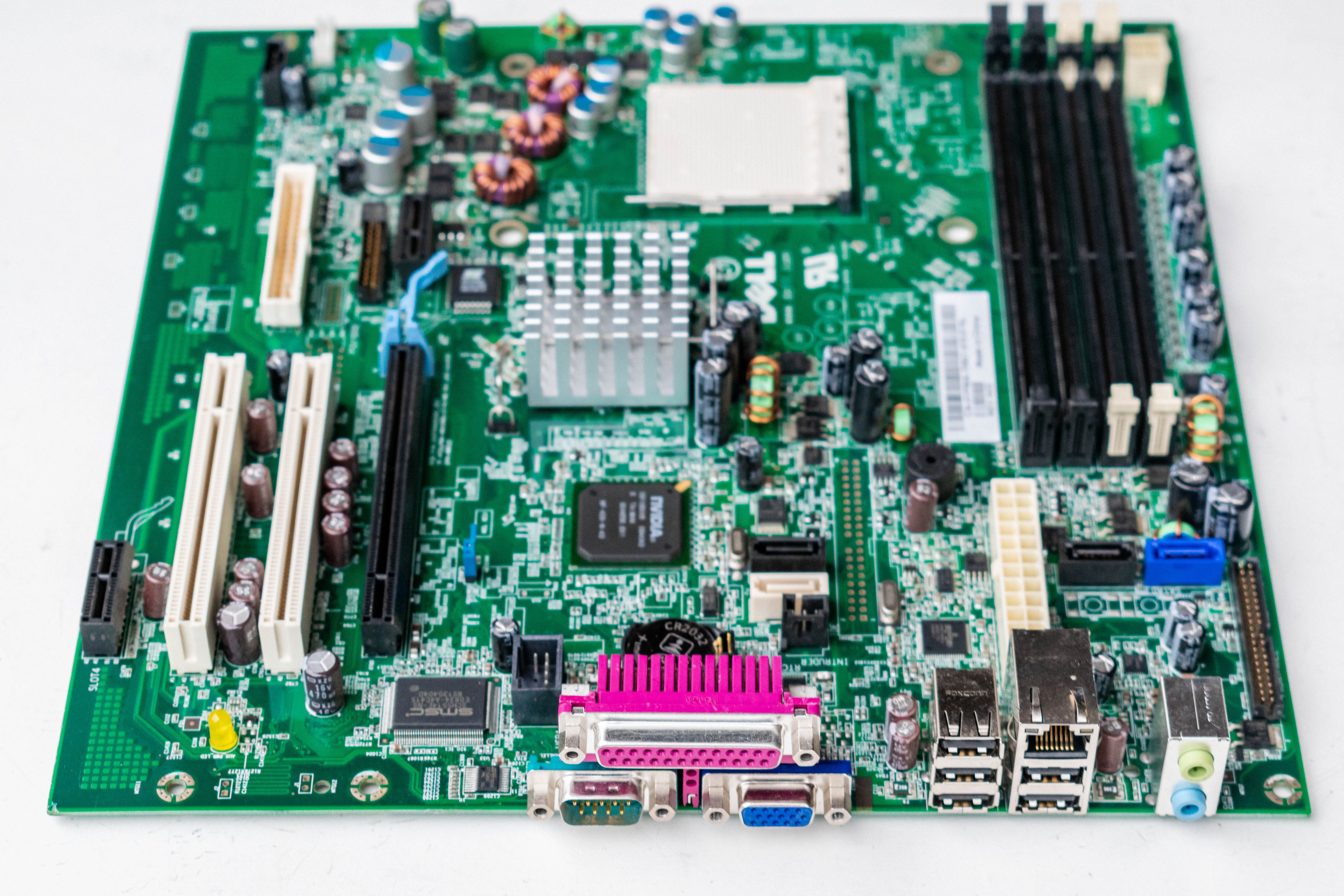

image2 Image 2 of 8 (Motherboard Continuum)

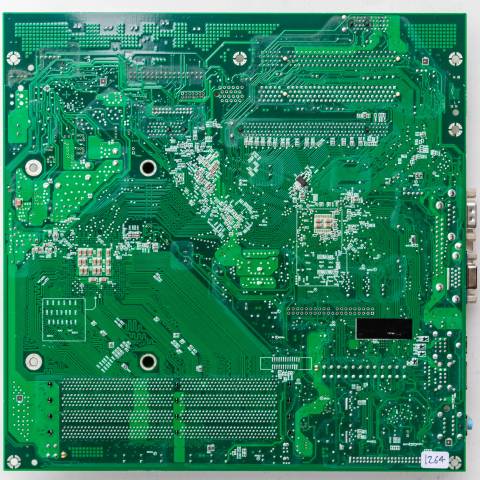

image3 Image 3 of 8 (Motherboard Continuum)

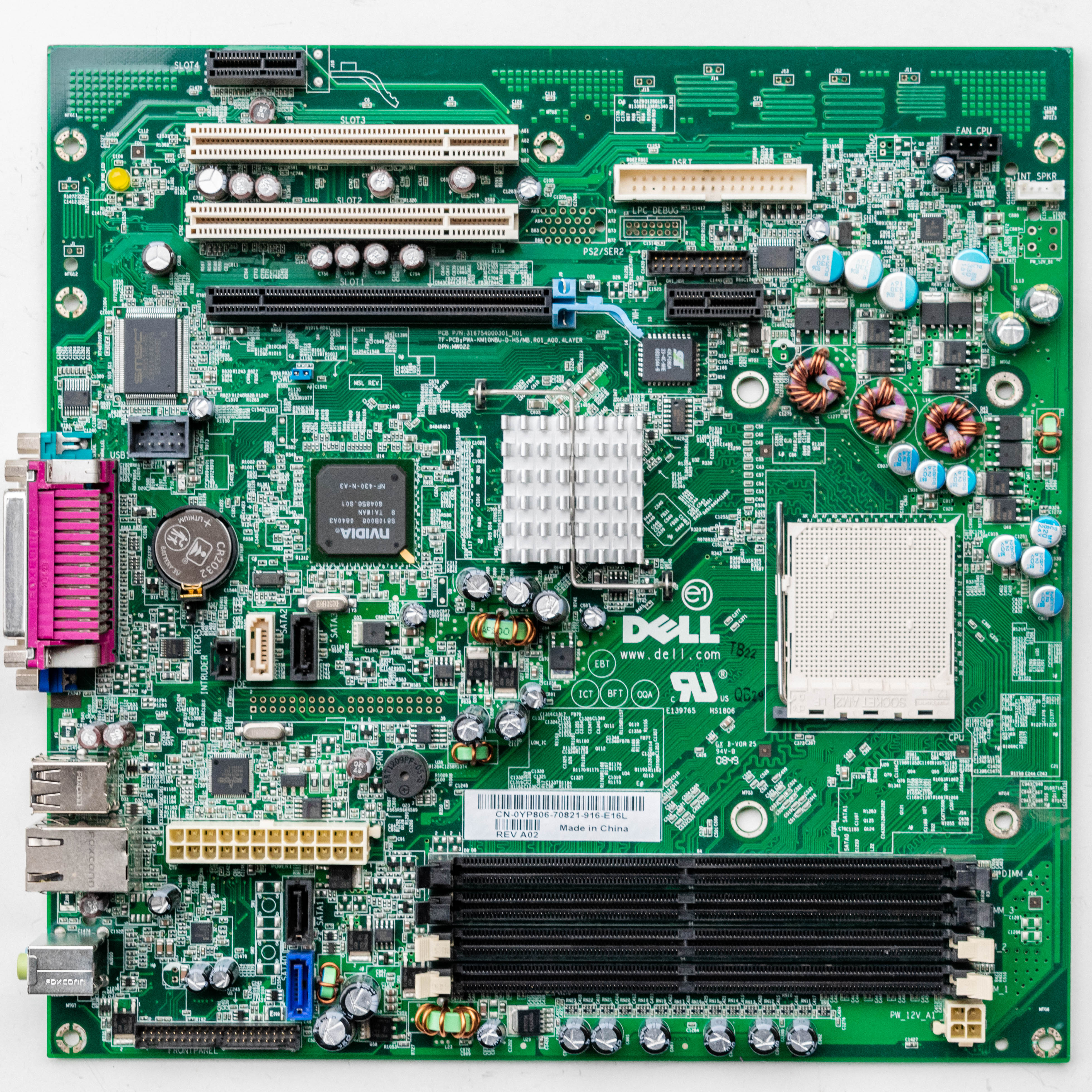

image4 Image 4 of 8 (Motherboard Continuum)
image5 Image 5 of 8 (Shadowdestroyer777)
image6 Image 6 of 8 (Shadowdestroyer777)

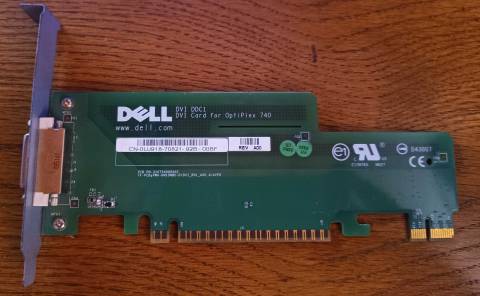

image7 Image 7 of 8 (Shadowdestroyer777)
image8 Image 8 of 8
