Dell 0YP693
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
Micro BTX / uBTX (max 264 × 267 mm)
dimDimensions
Empty
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x16
notes Notes

Manufactured by MiTAC for Dell

Last updated 2025-10-22T08:01:06Z
Board info score is 8.7/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

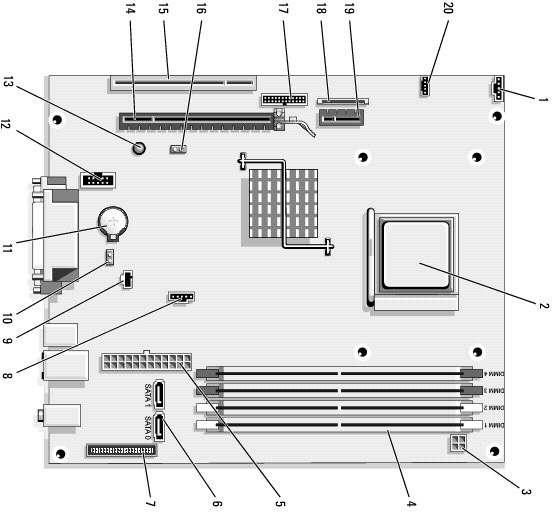

image1 Image 1 of 6

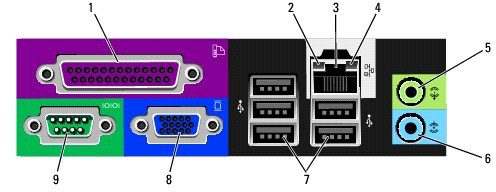

image2 Image 2 of 6 (fire219)

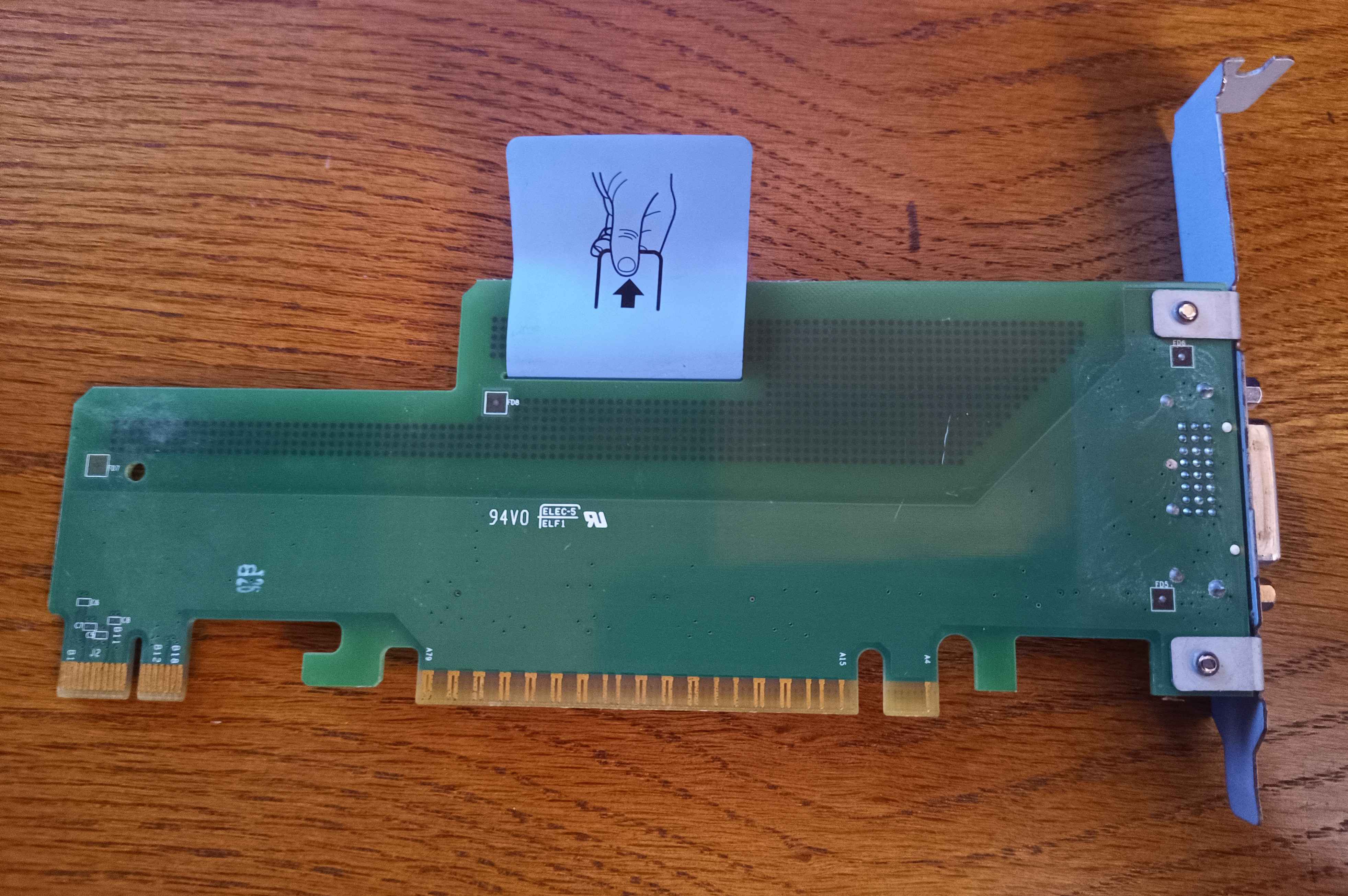

image3 Image 3 of 6 (Shadowdestroyer777)

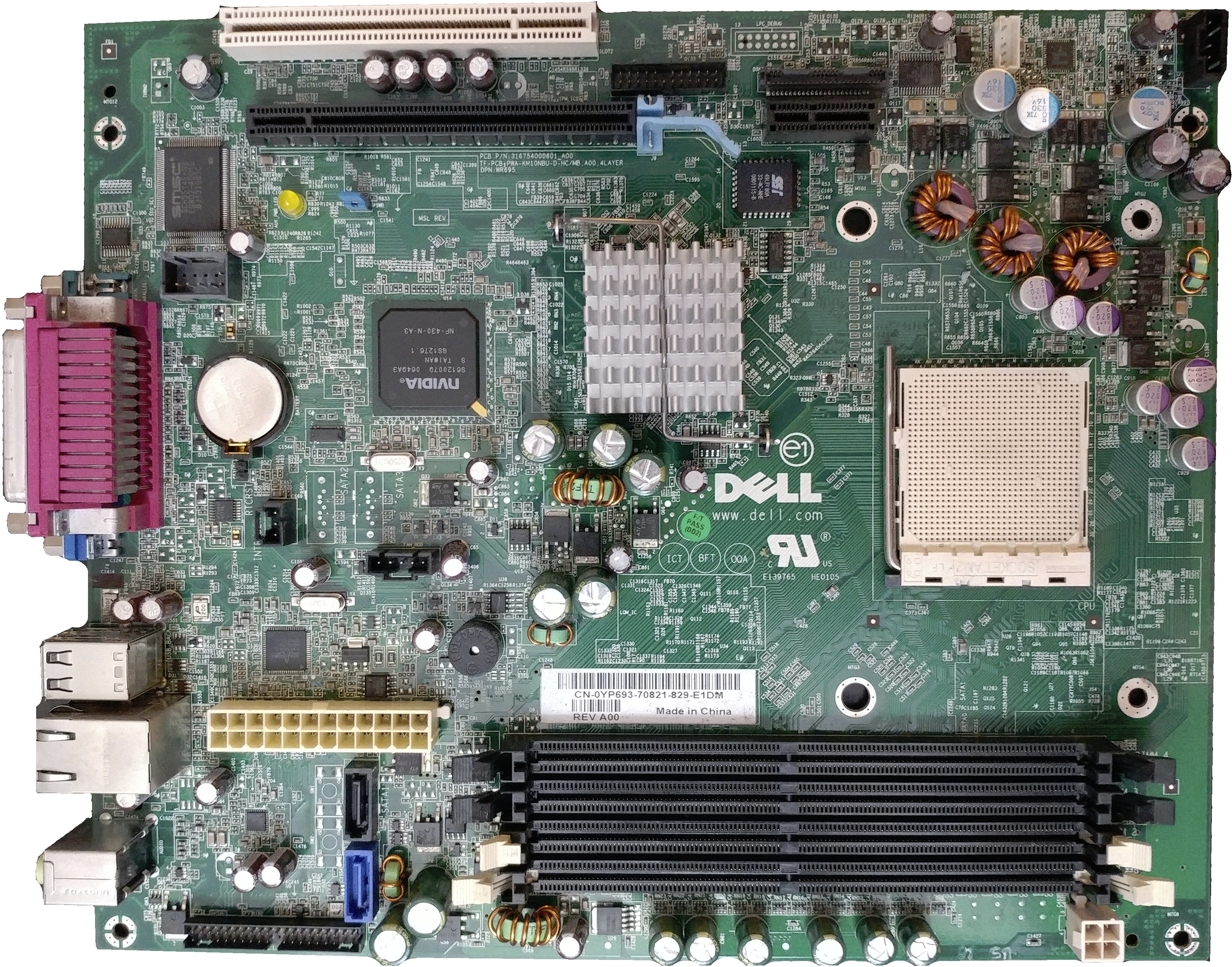

image4 Image 4 of 6 (Shadowdestroyer777)
image5 Image 5 of 6 (Shadowdestroyer777)
image6 Image 6 of 6
