Cubix BC 3030
Logs
chipChipset
Empty
cpuSocket
PQFP100
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
Empty
ramMax VRAM size
512KB
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB(Parity)
ramRAM type
30-pin SIMM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
notes Notes
  • 25MHz 80386SX, Optional 80387SX

Chips:

  • 8042 or 8742 Keyboard controller
  • Western Digital 37C65B floppy disk controller
  • external 6-volt CMOS battery
  • TOPCAT AT Chipset
Last updated 2025-10-29T09:25:51Z
Board info score is 6.4/10
bios 0 BIOS files available
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
1997
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

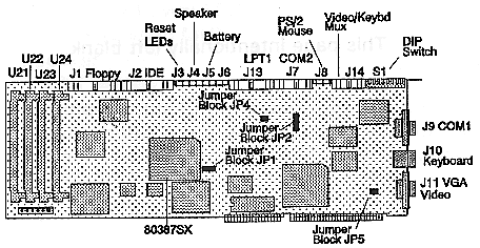

image1 Image 1 of 3 (Cubix corporation)

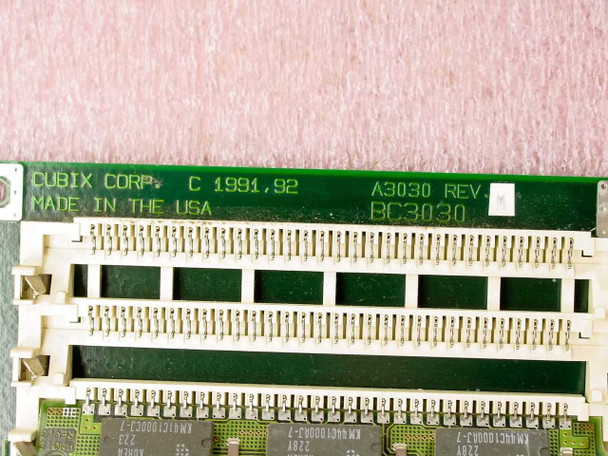

image2 Image 2 of 3 (recycledgoods)

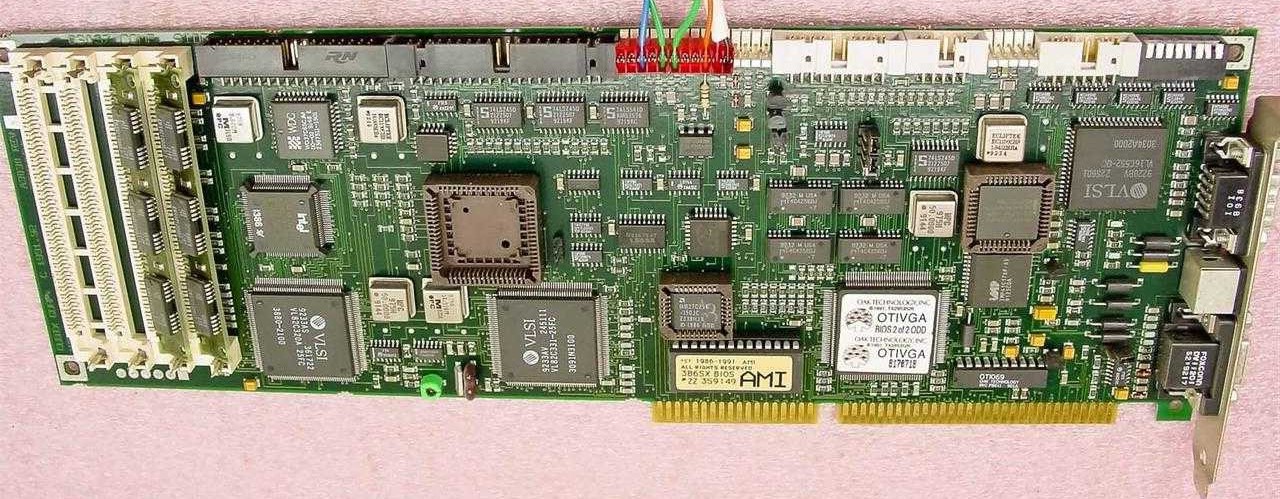

image3 Image 3 of 3 (recycledgoods)
