Compaq DESKPRO XL 450/466/560/566/590
Logs
chipChipset
cpuSockets
Socket 4 (PGA273) Socket 5 (PGA320)
speedFSB speeds
25MHz33MHz60MHz66MHz
moboForm factor
OEM / Proprietary
dimDimensions
330mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
OEM/Proprietary
connI/O ports
1x
3.5mm Audio Combo
1x
AUI 10Base LAN
1x
External SCSI
1x
Floppy interface
1x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
cardExpansion slots
4x
32-bit EISA
2x
32-bit PCI
Last updated 2024-11-25T16:03:37Z
Board info score is 8.4/10
bios 0 BIOS files available

vendor Compaq - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.58 Rev A
OS support
Empty
Arch
x86
Size
1.8MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-08
File
Logs
Chip
Release date
1994-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs
Family
Release date
File
Logs
Family
Release date
1994-11
File
Logs
Family
Release date
1996-03-04
File
Logs

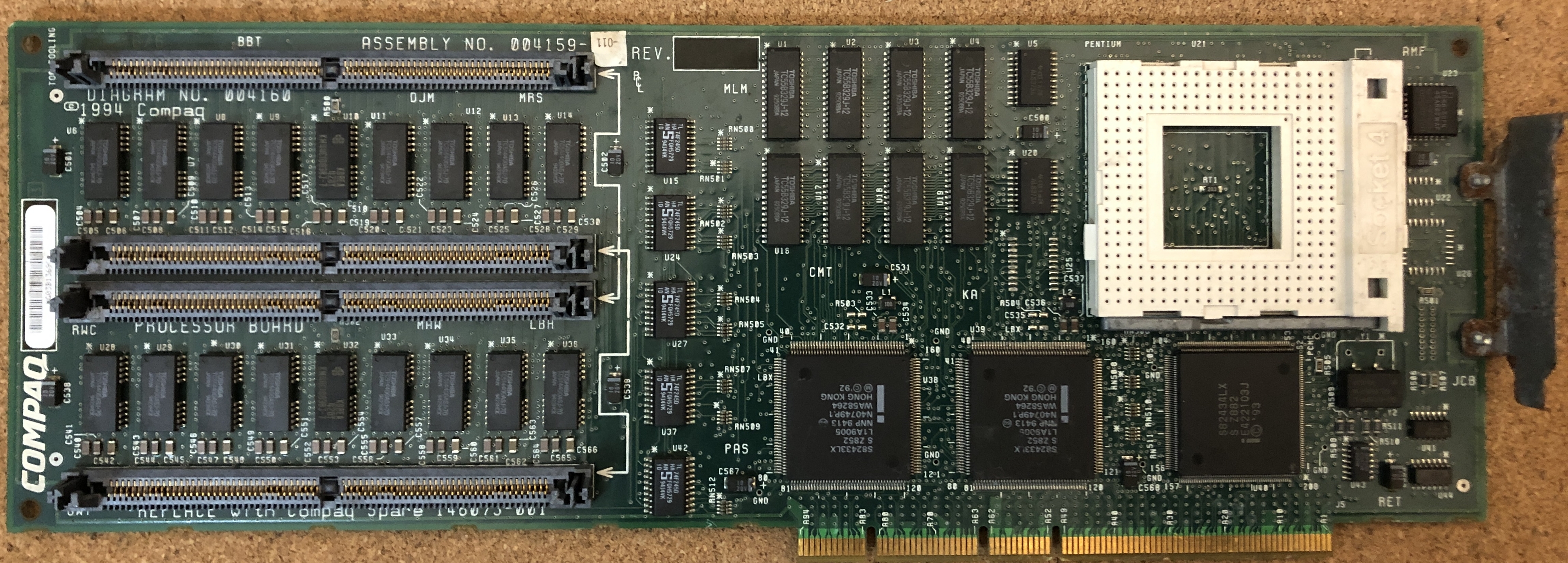

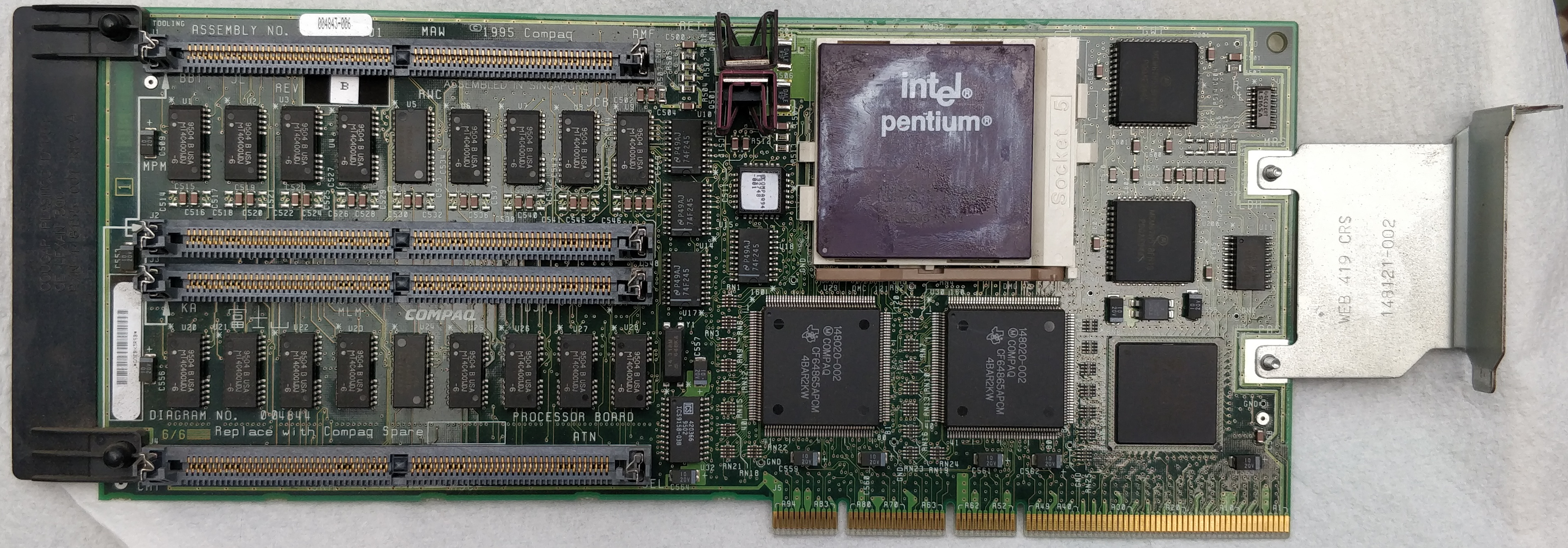

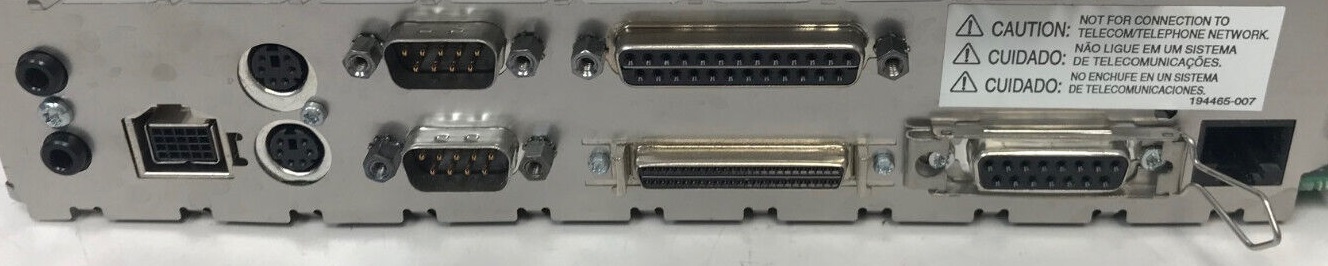

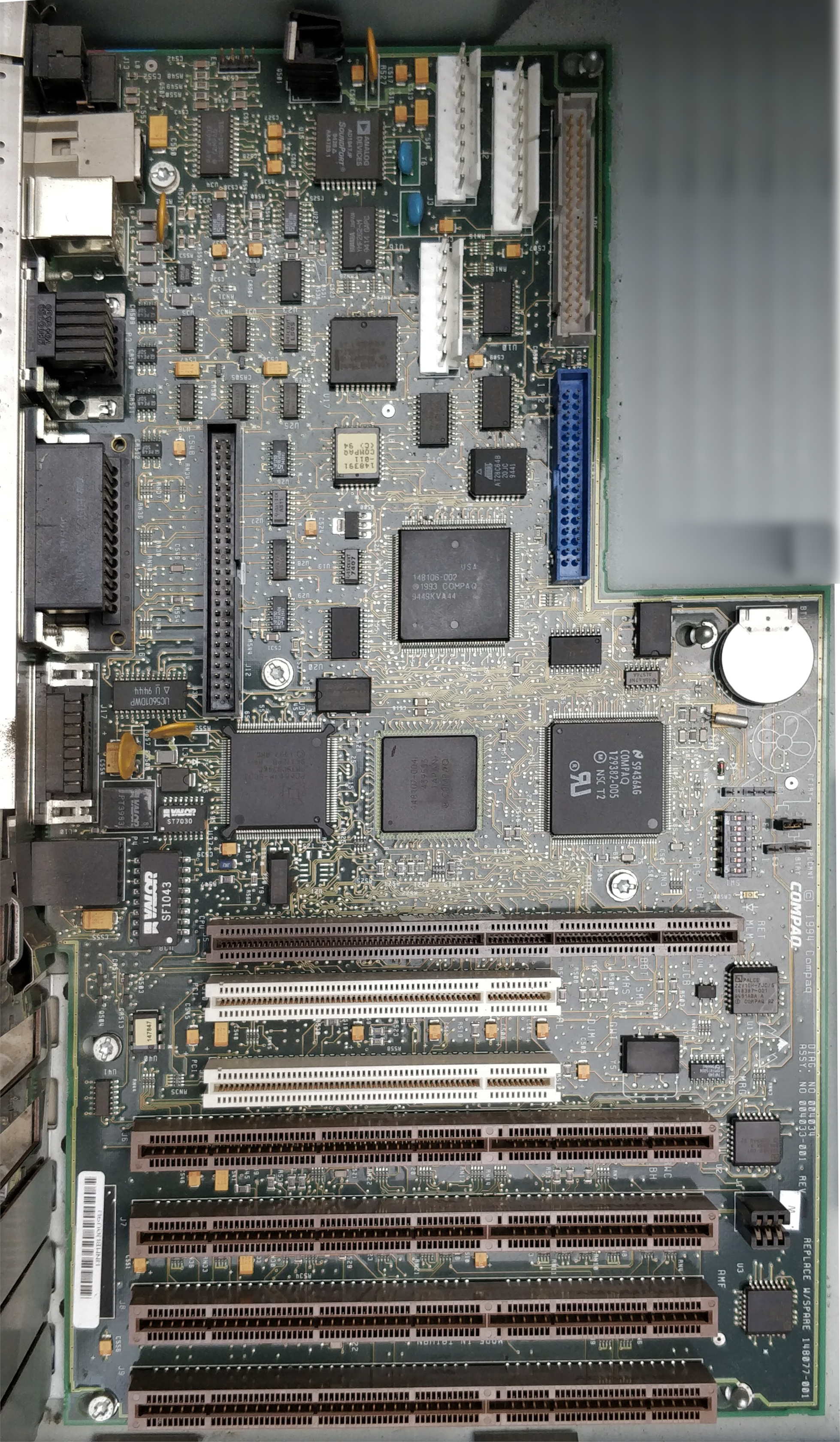

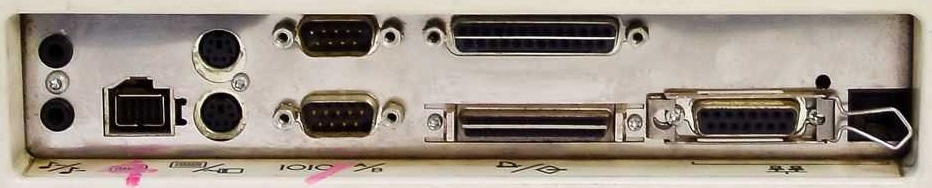

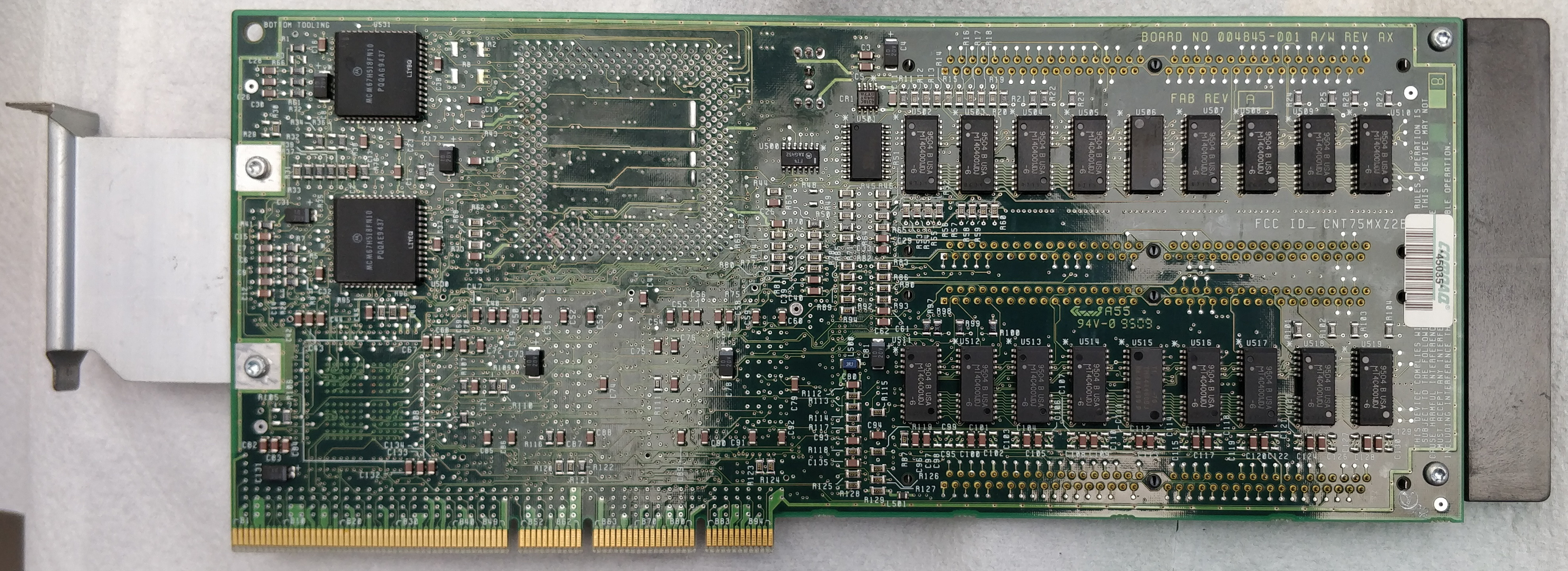

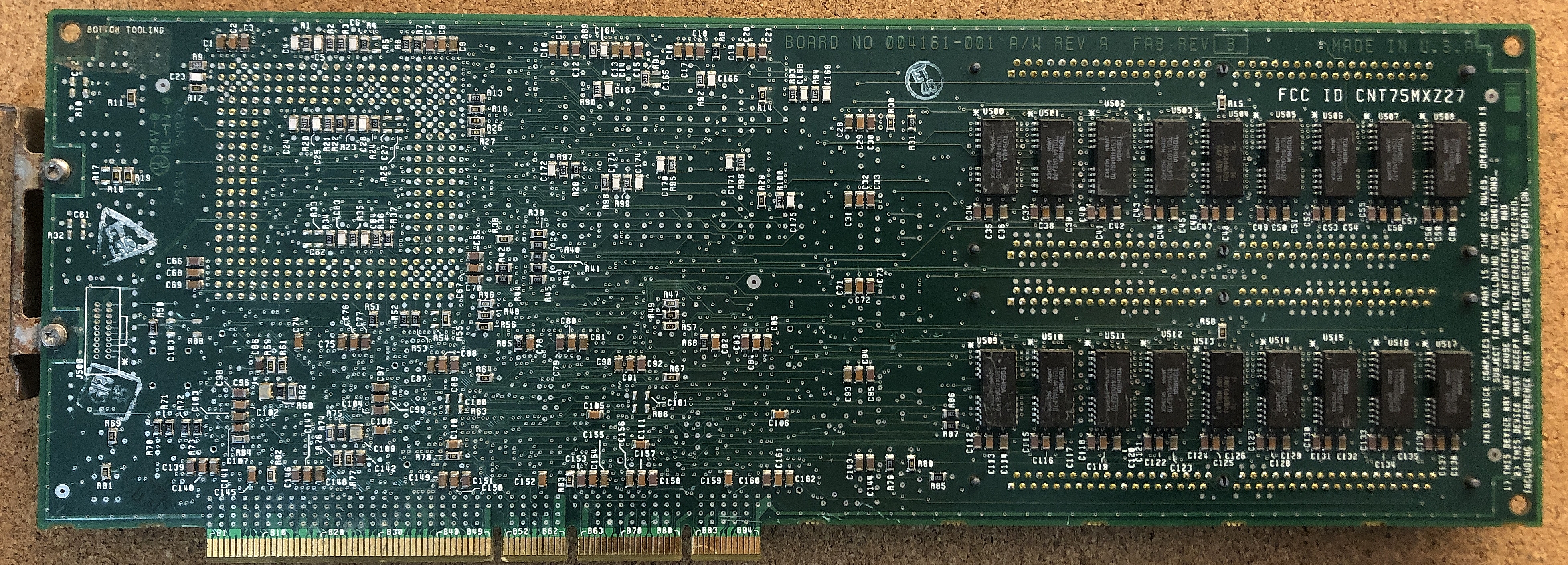

image1 Image 1 of 9 (Microhouse)
image2 Image 2 of 9 (deksor)
image3 Image 3 of 9
image4 Image 4 of 9
image5 Image 5 of 9 (maciej9783)
image6 Image 6 of 9 (deksor)
image7 Image 7 of 9 (maciej9783)
image8 Image 8 of 9 (deksor)

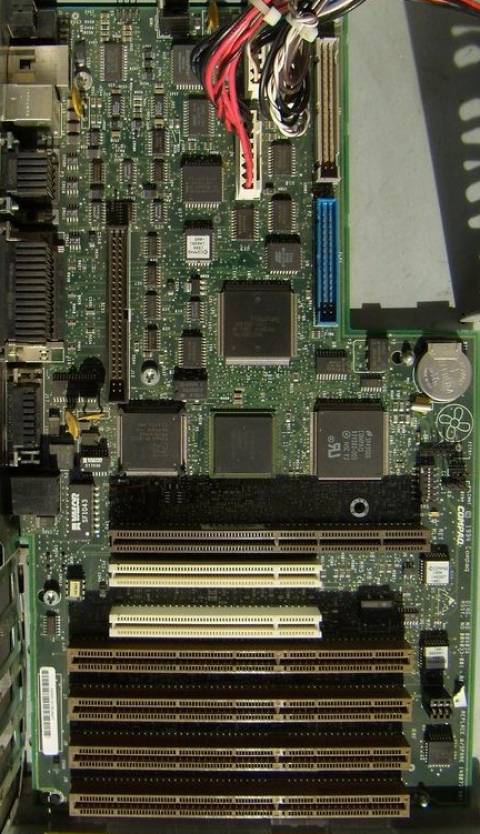

image9 Image 9 of 9
